Tools of the trade - Vol 18 - 36188 Wollaston Prisms

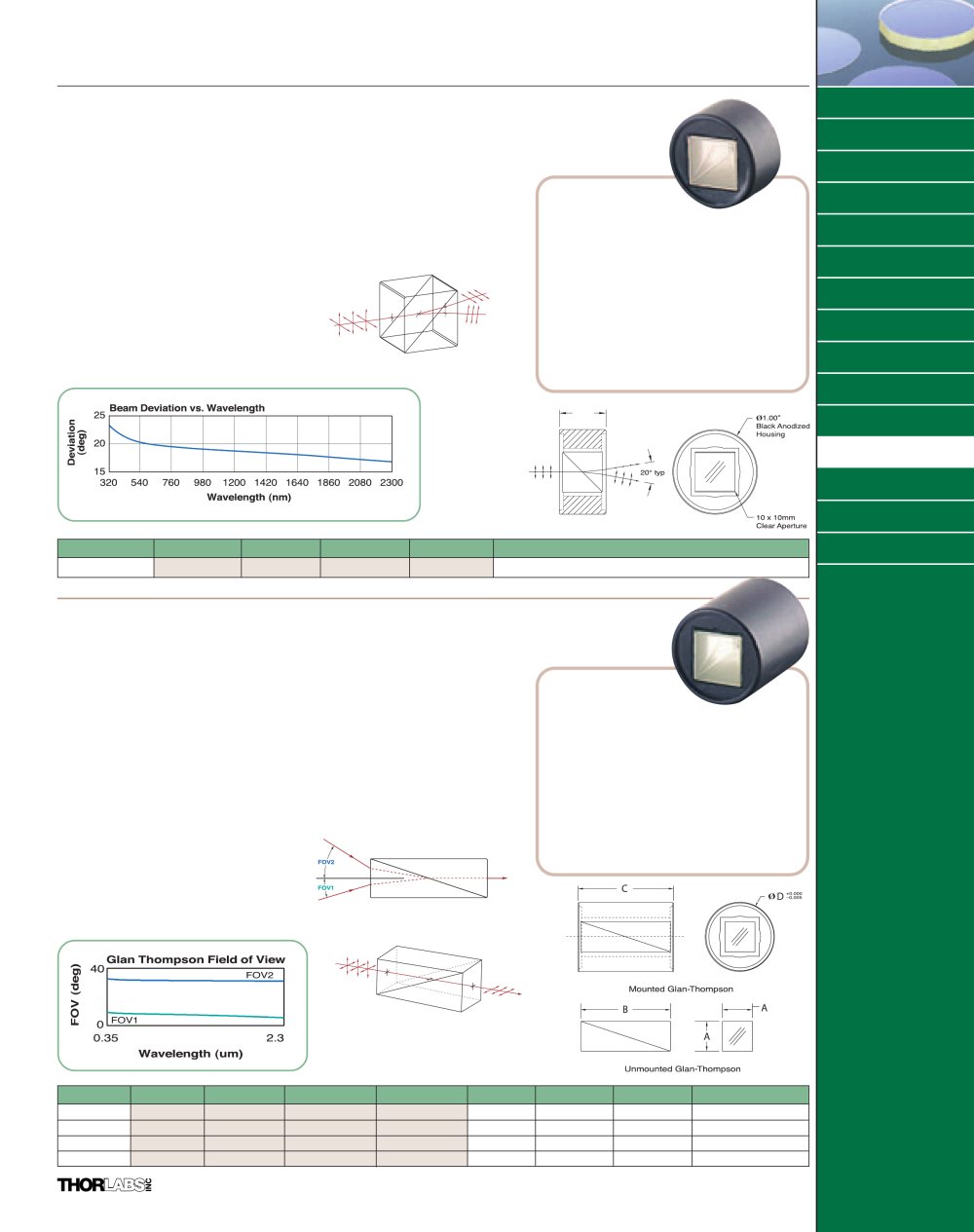

Optical Systems Wollaston prisms offer the widest deviation angle of beam displacing polarizers.Both output beams are deviated symmetrically to within 1°.Since the output deviations are chromatic (see plot below), Wollaston prisms havebeen used in spectrometers as well as polarization analyzers.The Wollaston prism polarizer is made of two calcite prisms cemented together.Thorlabs Wollaston prisms are supplied in a rugged anodized aluminum housing.
PPLN Devices Spherical Singlets

Specifications

Multi-element Lenses â–  Material: High Optical Grade Calcite
â–  Extinction Ratio: >100,000:1
Cylindrical Lenses â–  2 Orthogonally Polarized Outputs
â–  Spectral Range: 350nm to 2.3µm
Aspheric Lenses â–  Large Angular Deviation (20°)
â–  Beam Deviation: 20°
â–  Symmetrical Outputs (within 1°)
â–  Aperture: 10mm x 10mm
Mirrors â–  High Extinction Ratio – 100,000:1
â–  Clear Aperture: 90%
â–  350nm to 2.3µm Operation
â–  Wavefront Distortion:
Windows & Diffusers â–  Highest Grade Optical Calcite
â–  Surface Quality: 20-10 Scratch Dig
â–  1” Diameter Housing
â–  Damage Threshold: 1W/cm
2 Prisms Gratings 0.65"(14mm) Diffractive Optics Polarization Optics Beamsplitters Filters & Attenuators ITEM#$£ ¥DESCRIPTION Gas Cells WP10$540.00£405.00 567,00¥91,800Wollaston Prism, 20°

Glan Thompson Polarizer

The Glan Thompson calcite polarizers offer the widest field of view of the calcitepolarizers while maintaining a high extinction ratio. The polarizer consists of two cemented prisms made from the highest optical grade calcite. The operating spectral range is 350nm to 23µm.The Glan Thompson polarizers are available unmounted as well as mounted in ananodized aluminum housing.Note: As with all Glan Thompson polarizers, the maximum optical intensity islimited by the cemented prism interface. For high power applications, Thorlabs offers Glan Laser polarizers.

Specifications

â–  Polarizer Type: Glan Thompson
â–  Material: High Optical Grade Calcite
â–  Extinction Ratio: >100,000:1
â–  Spectral Range: 350nm to 2.3µm
â–  Clear Aperture: 10mm x 10mm GTH10 & GTH10M5mm x 5mm GTH5 & GTH5M
â–  Wide Field of View - 40°typ.
â–  High Extinction Ratio – 100,000:1
â–  Wavefront Distortion:
â–  350nm to 2.3µm Operation
â–  Surface Quality: 20-10 Scratch Dig
â–  Highest Grade Optical Calcite
â–  Cemented Prisms
â–  Available Mounted & Unmounted
ITEM#$£ ¥ABCD GTH5$270.00£202.50 283,50¥45,9006mm18mm-- GTH5M$330.00£247.50 346,50¥56,100--20mm12.7mm GTH10$375.00£281.25 393,75¥63,75011mm35mm--GTH10M$425.00£318.75 446,25¥72,250--35mm25.4mm Sales: 973-579-7227
