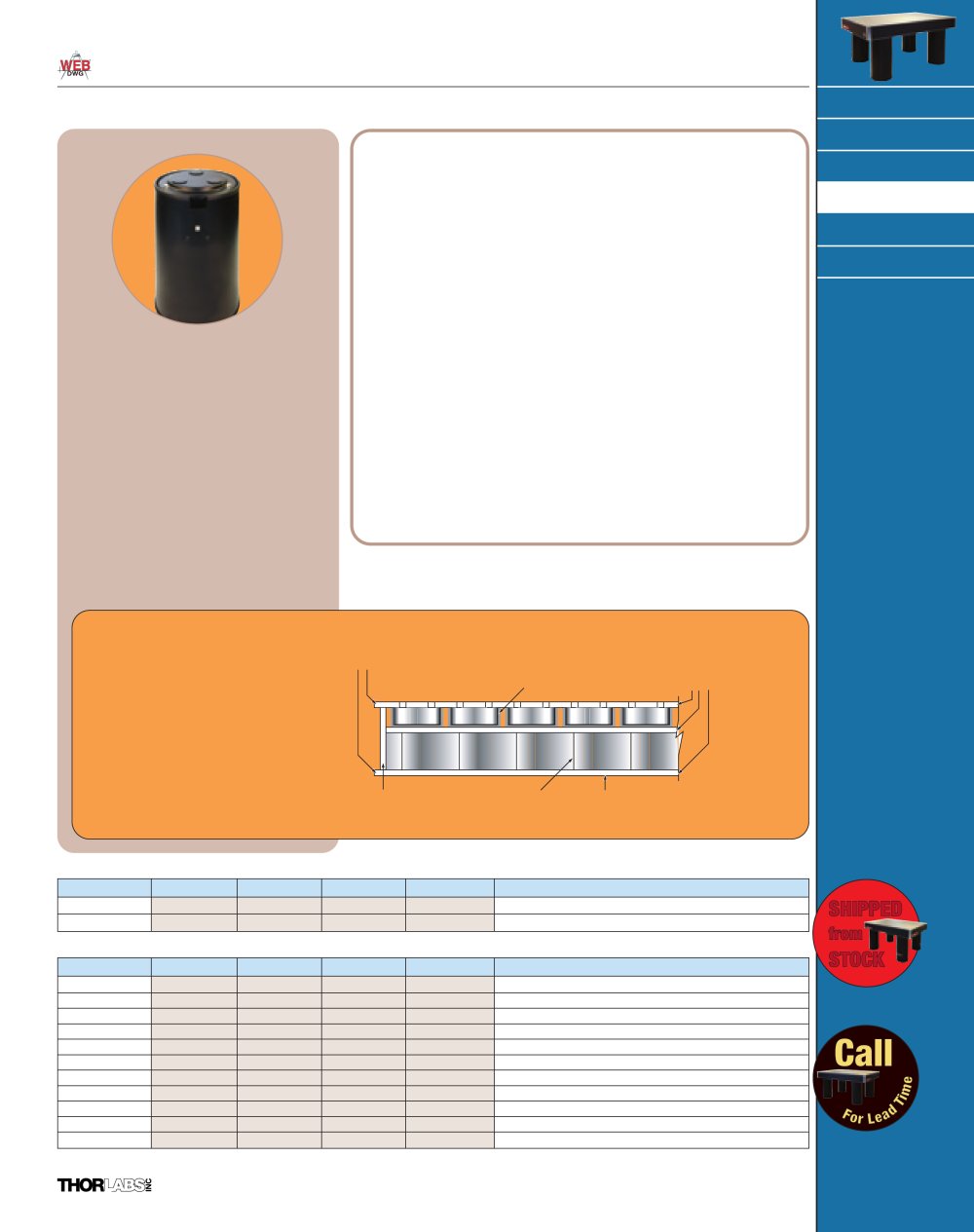

Tables & Breadboards

Sìabloi'op™¹ 450 Series I Optical Tables

■ Edge to First Hole Center:

• Metric: 50mm on All Sides

• Imperial Models 4.1' Width: 2.0" on Ends & 2.6" on Sides

• Imperial Models 4.9' Width:

2.0" on Ends & 2.5" on Sides

■ Maximum Screw Length:

16mm (5/8") Dynamic Deflection Coefficient (max):

<0.5 x 10^-3*

Relative Table Motion (max):

<0.10nm

(4 x 10^-9in.)*

■ Deflection Under Load: 113kg (250 lbs): <1.5um

(5.9 x 10^-5 in.)*

*Measured on a 4 x 8 ft. x 12.2 in. table with isolator transmissibility T<0.01 above 10 Hz, environmental vibrations PSD <10'g/Hz..

SPECIFICATIONS

■ Table thickness: 210mm (8.3")

■ Flatness: ±0.01mm (±0.004") Over Any 1m²

■ Construction: Triple Plate, Double Honeycomb Core

■ Top and Bottom Plates:

• Matched Materials for Athermalized Design

• Magnetic Stainless Steel,

5mm Thick

• Top Plate is Brush Finished

■ Main Core: High-density Plated

Steel Honeycomb

■ Intermediate Core: Plated-steel

Sealing Cup Honeycomb Structure, 13mm (0.5") Thick

■ Sides: Black Laminated-steel

Sides, Slightly Inset

■ Mounting Hole Pattern:

• Metric: M6 on 25 mm Centers

• Imperial: 1/4"-20 on 1" Centers

Breadboard Supports

Optical Tables

Table Supports

Non-Magnetic

Rigi avai

Thorlabs offers a broad range of tables and vibration isolation systems that enable the selection of the appropriate components for any application and environment. The chart on page 35 will assist you in making an appropriate choice. If you should need further assistance, our application engineers are

available to help you.

—--------_u~ --—

table with triple plate, double honeycomb core including sealed mounting holes.

stainless steel top and bottom skin

triple layer

(creates shorter elements between bottom ski

(same material prevents bowing with temperature change)

steel sealing cups

(ensure thermal conductivity eater rigidity)


	"III" "N" "III" "III" "1
	* t					■ 1

steel side walls

(provides greater stiffness)

steel honey c

(provides a high s to weight ratio

pressure

ilia

Optical Tables, M6 Metric - Stocked for Immediate Delivery


ITEM#	$	£	€	¥	DIMENSIONS (L x W x H)
PTR51508	$ 3,886.20	£ 2,286.00	€ 3.429,00	¥ 640,080	2000 x 1250 x 210mm
PTR51513	$ 5,623.60	£ 3,308.00	€ 4.962,00	¥ 926,240	2500 x 1500 x 210mm
Optical Tables, M6 Metric - Call for Lead Time
ITEM#	$	£	€	¥	DIMENSIONS (L xW xH)
PTR51504	$ 3,122.90	£ 1,837.00	€ 2.755,50	¥ 514,360	2000 x 1000 x 210mm
PTR51505	$ 4,102.10	£ 2,413.00	€ 3.619,50	¥ 675,640	2500 x 1000 x 210mm
PTR51509	$ 4,719.20	£ 2,776.00	€ 4.164,00	¥ 777,280	2500 x 1250 x 210mm
PTR51506	$ 4,998.00	£ 2,940.00	€ 4.410,00	¥ 823,200	3000 x 1000 x 210mm
PTR51510	$ 5,533.50	£ 3,255.00	€ 4.882,50	¥ 911,400	3000 x 1250 x 210mm
PTR51514	$ 6,159.10	£ 3,623.00	€ 5.434,50	¥ 1,014,440	3000 x 1500 x 210mm
PTR51507	$ 6,159.10	£ 3,623.00	€ 5.434,50	¥ 1,014,440	3750 x 1000 x 210mm
PTR51511	$ 6,873.10	£ 4,043.00	€ 6.064,50	¥ 1,132,040	3750 x 1250 x 210mm
PTR51515	$ 7,694.20	£ 4,526.00	€ 6.789,00	¥ 1,267,280	3750 x 1500 x 210mm
PTR51512	$ 7,532.70	£ 4,431.00	€ 6.646,50	¥ 1,240,680	4250 x 1250 x 210mm
PTR51516	$ 8,586.70	£ 5,051.00	€ 7.576,50	¥ 1,414,280	4250 x 1500 x 210mm

Please contact your local sales office for a quotation including shipping.

THOR ^

Sales: 973-579-7227
