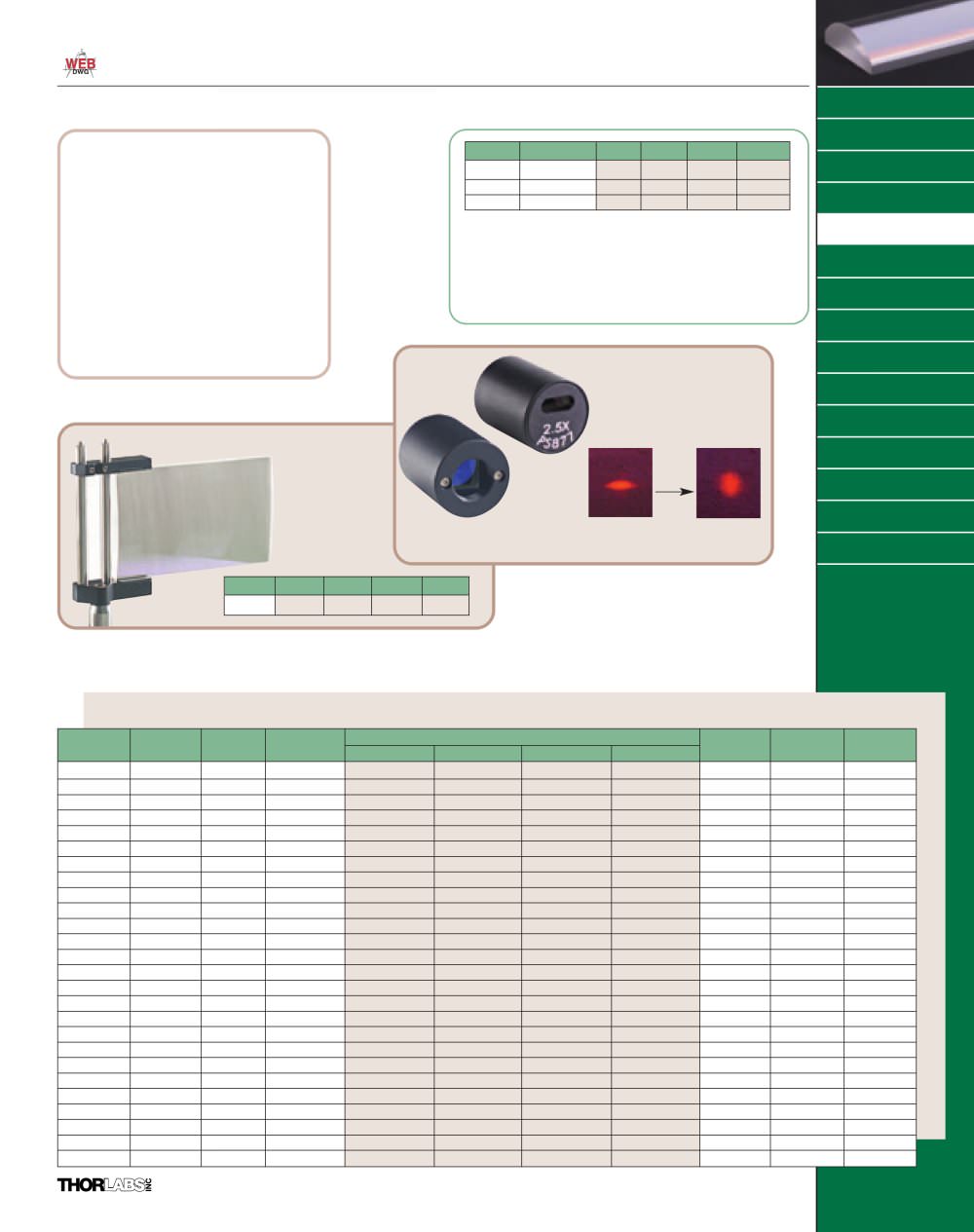

Optics


COATING	WAVELENGTH	$		€	¥
-A	350-650nm	$ 9.00	£ 6.75	€ 9,45	¥ 1,530
-B	650-1050nm	$ 9.00	£ 6.75	€ 9,45	¥ 1,530
-C	1050-1620nm	$ 12.00	£ 9.00	€ 12,60	¥ 2,040

Specifications

■ Material: BK7

■ Wavelength Range: 350nm-2.0um

■ Design Wavelength: 587.6nm

■ Length Tolerance: +0.00/-0.10mm

■ Height Tolerance: +0.00/-0.10mm

■ Focal Length Tolerance: ±1%

■ Scratch/Dig: 60/40

■ Centration:

For f <50mm: <5arcmin For f >50mm: <3arcmin

■ Clear Aperture: >90%

Standard Broadband AR Coatings

To order the lens with a standard broadband AR Coating, add the coating code to the Item#, and add the coating cost to the lens price.

Example: LJ1934L1 Coated with 350-650nm Broadband AR Coating is LJ1934L1-A and the cost would be $68.40 + $9.00 = $77.40.

Cylindrical Lenses ^Aspheric ^Lenses


Mirrors
Windows & Diffusers
		Prisms
		Gratings
D	iffractive Optics

RELATED PRODUCTS

ANAMORPHIC PRISM PAIR

Photograph of an actual 635nm Hitachi Laser Diode before and after Anamorphic Prism Pair.

olarization Optics

CYLINDRICAL LENS HOLDER

Holds up to 73mm lenses. Universal mounting hole. Lens sold separately.

See Page 150.


		Beamsplitters
		rs & Attenuators

CIRCULARIZED LASER DIODES

See Page 646 for More Details.


ITEM#	$	£	€	¥
CH2B	$ 55.00	£ 41.25	€ 57,75	¥ 9,350

PLANO-CONVEX CYLINDRICAL LENSES: Material BK7 ...continued


	f	H	L	PRICE UNCOATED (for coated lens add suffix)								R	tc		te
ITEM#	(mm)	(mm)	(mm)		$		£		€		¥	(mm)	(mm		(mm)
ITEM#	(mm)	(mm)	(mm)		$		£		€		¥	(mm)	(mm	₎⁾	(mm)
LJ1934L1	150.0	20.0	22.0	$	68.40	£	51.30	€	71,82	¥	11,628	77.5	3.6		3.0
LJ1934L2	150.0	20.0	40.0	$	78.90	£	59.18	€	82,84	¥	13,413	77.5	3.6		3.0
LJ1629L1	150.0	30.0	32.0	$	93.10	£	69.82	€	97,76	¥	15,827	77.5	4.5		3.0
LJ1629L2	150.0	30.0	60.0	$	106.00	£	79.50	€	111,30	¥	18,020	77.5	4.5		3.0
LJ1895L1	150.0	100.0	90.0	$	256.00	£	192.00	€	268,80	¥	43,520	77.5	21.3		3.0
LJ1895L2	150.0	100.0	145.0	$	323.00	£	242.25	€	339,15	¥	54,910	77.5	21.3		3.0
LJ1653L1	200.0	30.0	32.0	$	93.10	£	69.82	€	97,76	¥	15,827	103.4	4.1		3.0
LJ1653L2	200.0	30.0	60.0	$	106.00	£	79.50	€	111,30	¥	18,020	103.4	4.1		3.0
LJ1309L1	200.0	100.0	90.0	$	256.00	£	192.00	€	268,80	¥	43,520	103.4	15.9		3.0
LJ1309L2	200.0	100.0	145.0	$	342.00	£	256.50	€	359,10	¥	58,140	103.4	15.9		3.0
LJ1277L1	250.0	20.0	22.0	$	69.20	£	51.90	€	72,66	¥	11,764	129.2	3.4		3.0
LJ1277L2	250.0	20.0	40.0	$	79.00	£	59.25	€	82,95	¥	13,340	129.2	3.4		3.0
LJ1267L1	250.0	60.0	62.0	$	161.00	£	120.75	€	169,05	¥	27,370	129.2	6.5		3.0
LJ1267L2	250.0	60.0	95.0	$	188.00	£	141.00	€	197,40	¥	31,960	129.2	6.5		3.0
LJ1558L1	300.0	30.0	32.0	$	93.10	£	69.82	€	97,76	¥	15,827	155.1	3.7		3.0
LJ1558L2	300.0	30.0	60.0	$	106.00	£	79.50	€	111,30	¥	18,020	155.1	3.7		3.0
LJ1996L1	300.0	60.0	62.0	$	161.00	£	120.75	€	169,05	¥	27,370	155.1	5.9		3.0
LJ1996L2	300.0	60.0	95.0	$	188.00	£	141.00	€	197,40	¥	31,960	155.1	5.9		3.0
LJ1363L1	400.0	30.0	32.0	$	93.10	£	69.82	€	97,76	¥	15,827	206.7	3.5		3.0
LJ1363L2	400.0	30.0	60.0	$	106.40	£	79.80	€	111,72	¥	18,088	206.7	3.5		3.0
LJ1144L1	500.0	30.0	32.0	$	93.10	£	69.82	€	97,76	¥	15,827	258.4	3.4		3.0
LJ1144L2	500.0	30.0	60.0	$	106.40	£	79.80	€	111,72	¥	18,088	258.4	3.4		3.0
LJ1836L1	700.0	30.0	32.0	$	93.10	£	69.82	€	97,76	¥	15,827	361.8	3.3		3.0
LJ1836L2	700.0	30.0	60.0	$	106.00	£	79.50	€	111,30	¥	18,020	361.8	3.3		3.0
LJ1516L1	1000.0	30.0	32.0	$	93.10	£	69.82	€	97,76	¥	15,827	516.8	3.2		3.0
LJ1516L2	1000.0	30.0	60.0	$	106.40	£	79.80	€	111,72	¥	18,088	516.8	3.2		3.0
■morosi	Si										Sales: 973-579-7227

595
