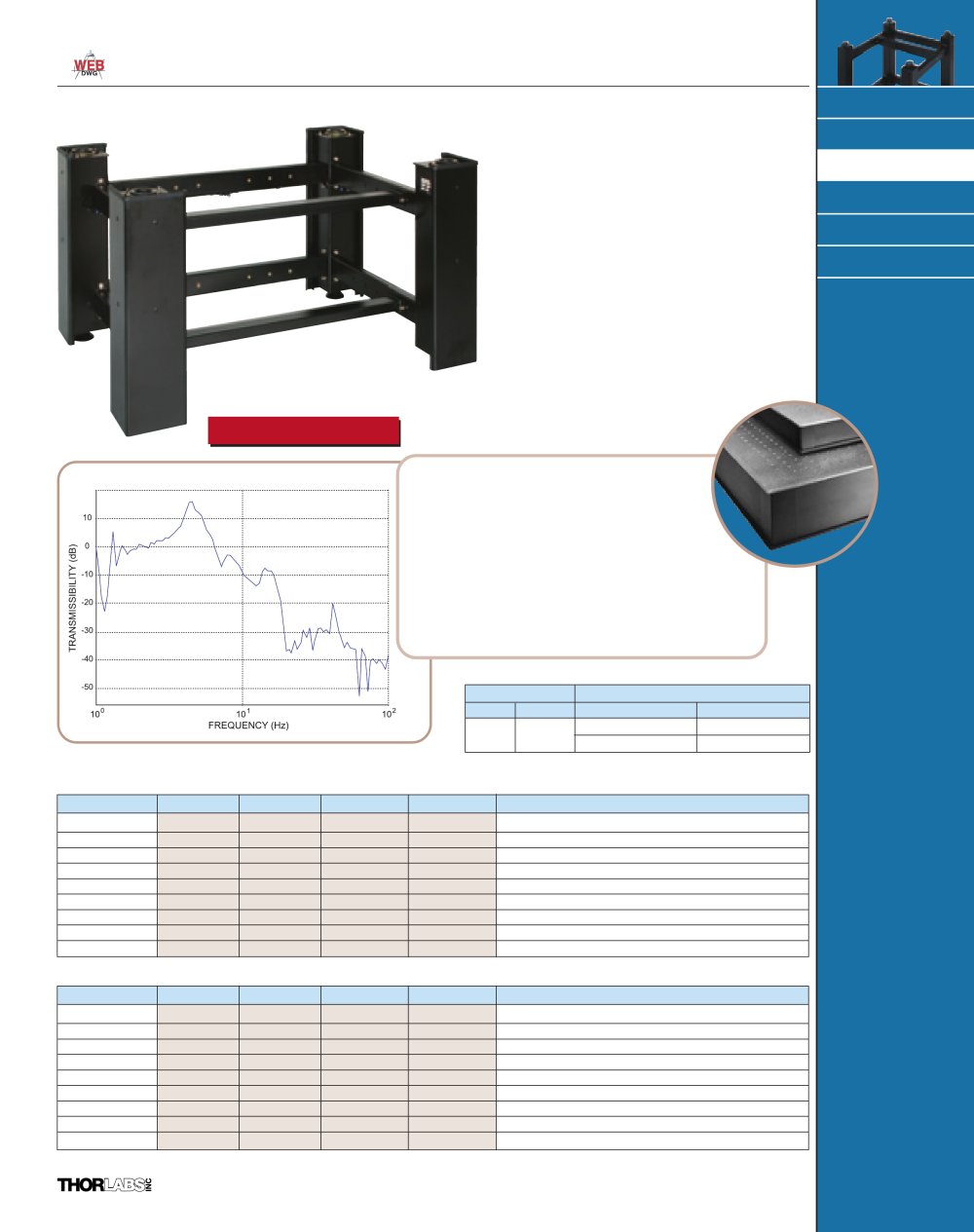

Tables & Breadboards

Workstation - Pump&Go™ Passive Isolation

Our Pump&Go™ passive isolation system incorporates four independent air mounts, each manually leveled, for general applications requiring isolation from low frequency vibrations. These isolators do not require a constant source of air. Passive isolation is particularly effective for instruments with a high center of gravity, providing the stability and stiffness required to result in rapid attenuation of vibrational disturbances. Select a passive system if your application would benefit from a high degree of vibration isolation. For loads of 45 to 180kg, the standard system is the most cost effective solution. If the weight of your application and breadboard exceeds 180kg, choose the heavy duty variant.

Breadboard Supports

Optical Tables Table Supports Non-Magnetic

Metric & Imperial Compatible

Tables and Breadboards for use with the passive workframes are available, see pages 15-27

Specifications ■ Load Capacity:

• Standard: 45-180 kg (100-400 lbs)

• Heavy Duty: 135-540 kg (300-1090 lbs) Air Connection: Schrader Valve Air Pressure Required: 415 kPa (60psi) Maximum Height: 800mm (32")

Height Adjustment Range: Leveling Feet ±10mm (0.4") Finish: Black Paint



	ju^_.......\..........

v		..............\............................................
V

		w
		.................................................I '........

co 2

Pump&Go™ Vibration Isolation Data


Resonant Frequency		Transmissibility (Isolation Efficiency)
Vertical	Horizontal	Vertical	Horizontal
<3.5 Hz	<3.5 Hz	<14dB at resonance	<9dB at resonance
	<3.5 Hz	<0.2dB (>80%) at 10Hz	<0.2dB (>80%) at 10Hz

FREQUENCY (Hz)

Vertical Transmissibility of Pump&Go™ - Passive Isolation.

*Note: Measured supporting a 1.25m x 2.5m x 210mm (4' x 8' x 8.3") table.

Standard Pump&Go™ Isolating Support Frames 800mm Height... Call for Lead Time


ITEM	$	£	€	¥	DESCRIPTION
PFP52509	$ 1,904.00	£ 1,120.00	€ 1.680,00	¥ 313,600	750 x 750mm, (2.5' x 2.5')
PFP52505	$ 1,921.00	£ 1,130.00	€ 1.695,00	¥ 316,400	750 x 900mm, (2.5' x 3')
PFP52508	$ 1,946.50	£ 1,145.00	€ 1.717,50	¥ 320,600	750 x 1200mm, (2.5' x 4')
PFP52501	$ 1,972.00	£ 1,160.00	€ 1.740,00	¥ 324,800	750 x 1500mm, (2.5' x 5')
PFP52506	$ 1,938.00	£ 1,140.00	€ 1.710,00	¥ 319,200	900 x 900mm, (3' x 3')
PFP52507	$ 1,955.00	£ 1,150.00	€ 1.725,00	¥ 322,000	900 x 1200mm, (3' x 4')
PFP52502	$ 1,989.00	£ 1,170.00	€ 1.755,00	¥ 327,600	900 x 1500mm, (3' x 5')
PFP52503	$ 2,023.00	£ 1,190.00	€ 1.785,00	¥ 333,200	1200 x 1200mm, (4' x 4')
PFP52504	$ 2,040.00	£ 1,200.00	€ 1.800,00	¥ 336,000	1200 x 1500mm, (4' x 5')
Heavy Duty Pu	mp&Go™ Is	olating Sup	port Frames	800mm Heigf	it... Call for Lead Time
ITEM	$	£	€	¥	DESCRIPTION
PFH52509	$ 1,955.00	£ 1,150.00	€ 1.725,00	¥ 322,000	750 x 750mm, (2.5' x 2.5')
PFH52505	$ 1,972.00	£ 1,160.00	€ 1.740,00	¥ 324,800	750 x 900mm, (2.5' x 3')
PFH52508	$ 1,997.50	£ 1,175.00	€ 1.762,50	¥ 329,000	750 x 1200mm, (2.5' x 4')
PFH52501	$ 2,023.00	£ 1,190.00	€ 1.785,00	¥ 333,200	750 x 1500mm, (2.5' x 5')
PFH52506	$ 1,989.00	£ 1,170.00	€ 1.755,00	¥ 327,600	900 x 900mm, (3' x 3')
PFH52507	$ 2,006.00	£ 1,180.00	€ 1.770,00	¥ 330,400	900 x 1200mm, (3' x 4')
PFH52502	$ 2,040.00	£ 1,200.00	€ 1.800,00	¥ 336,000	900 x 1500mm, (3' x 5')
PFH52503	$ 2,074.00	£ 1,220.00	€ 1.830,00	¥ 341,600	1200 x 1200mm, (4' x 4')
PFH52504	$ 2,091.00	£ 1,230.00	€ 1.845,00	¥ 344,400	1200 x 1500mm, (4' x 5')

*Please contact your local sales office for a quotation including shipping.

THOR ^

Sales: 973-579-7227
