Laser Diode Technologies

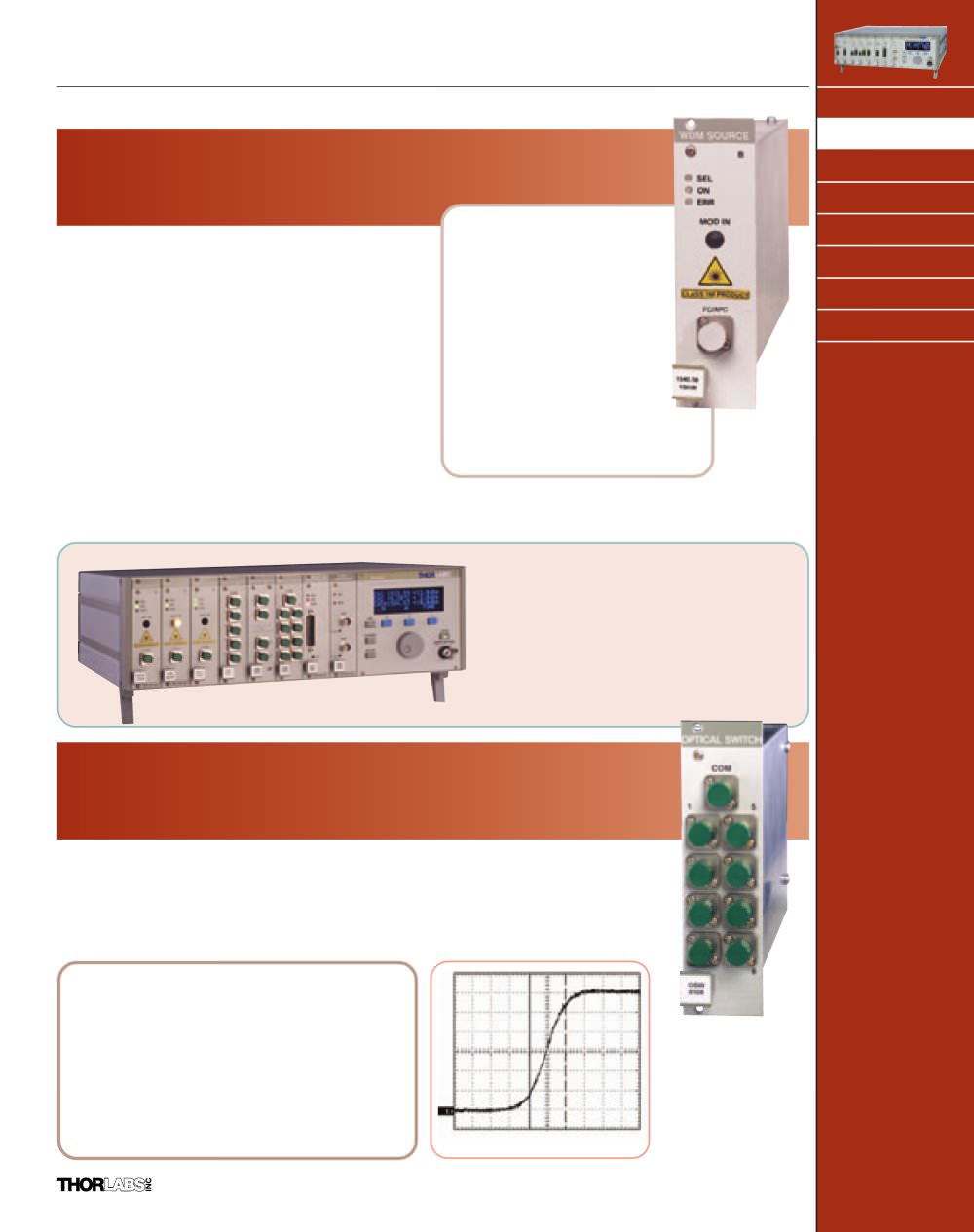

Tools of the trade - Vol 18 - 36188 PRO8000 Laser Source & Optical Switch Modules

Laser/TEC Drivers Benchtop Laser/TEC DriversPlatforms

LS8000WDM8000 & CWDM8000 DFB Laser Source Modules

Laser/TEC OEM Drivers Laser Mounts

PRO8000 Laser Modules

Laser Diodes Introduction - PRO8000 Series Laser Sources The LS8000, WDM8000, and the CWDM8000 series are DWDM DFB laser source modules for the PRO8000 platform. Thesemodules cover the 1470-1620nm wavelength range on the 50GHzITU grid and provide 10mW or 20mW. The optical power can be tuned over 10dB, and the wavelength over ±1nm. These light source modules have been designed for excellent stability in power and wavelength for reliable measurement results as required in test setupsto characterize BER link performance and EDFA parameters. Themodules feature internal modulation capabilities for flexible coherence control, especially the triangular modulation format forefficient suppression of stimulated Brillouin scattering in fibers.
â–  CW DFB Laser Source
Pigtailed Lasers â–  L-, C- & S-Band on 50 GHzITU Grid
Laser Modules â–  10 & 20mW Optical power
â–  Excellent Wavelength & Power Stability(±2pm, ±0.01dB for 24h)
Accessories â–  Wavelength Tuning (±1nm)
â–  Power Tuning (10dB)
â–  Versatile Coherence Control
â–  Stimulated Brillouin ScatteringSuppression

For technical details, specifications, the ITU grid,and pricing, See Page 494-505. Application Idea: Incorporate laser sourceand optical switch modules, along with PDA8000 photo diode amplifier for a versatile and modular test system. OSW8000Optical Switch Modules

This family of optical switching modules provides additional “building-blocks” when configuring automated optical test networks. Four different bi-directional switching models are available, providing highly flexiblerouting of optical paths.

See Pages 842-843 for pricing and specifications.

Switch Modules Highlights

â–  Very fast response time, 0.5ms Typ., 1ms Max.
â–  Low insertion loss, 0.7dB typ. (1x2), 1.2dB typ. (1x4)
â–  Excellent repeatability of ±0.01dB
â–  MEM’s Technology for Long Life (10
9 Cycles) Risetime measurementof the MEMS based optical switchmeasured between the10% and 90% points is 480µs. PRO8000 Series Optical Switch Modules
â–  Four Modules: 1x2, 1x4, 1x8 & 2x2
â–  Up to Eight Switch Modules per Mainframe
â–  Free LabVIEW™ & LabWindows™/CVI drivers.
â–  Efficient Test Signal Routing in Branching Test Beds.
10mV/div 250µs/div Sales: 973-579-7227
415
