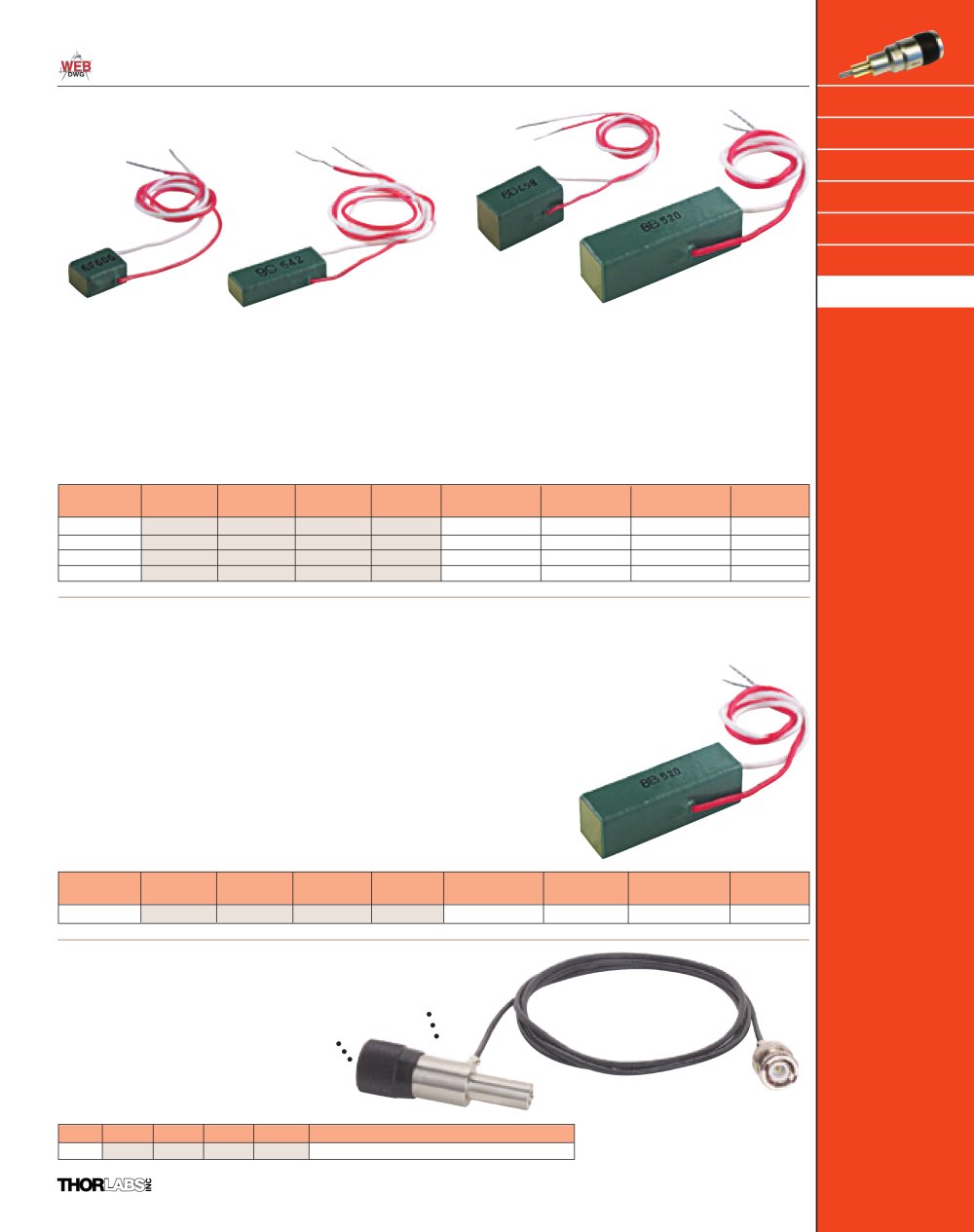

Motion Control

Piezo-Electric Actuator

rcuiaimiuii ^Stages

Rotation Stages

3 Axis Flexure Stages

AE0203D04

3.5 x 4.5 x 5mm

& 6-Axls Stages

AE0505D08

6.5 x 6.5 x 10mm

AE0505D16

6.5 x 6.5 x 20mm

Actuators & Adjusters

These Piezo-Electric Actuators transform electrical energy into precisely controlled mechanical displacements. A room temperature epoxy is the recommended method for making connections to these piezo-electric stacks, Item# F120. When mounting, avoid bending forces. Center the mechanical load on the piezo-electric end faces. If the actuator is incorporated into a design which calls for a preload, it is recommended that the preload not exceed 50% of the specified clamp force (45 lbs for AE0203 models, and 190 lbs for AE0505 models).

■ Precise Nanometer Positioning

■ Fast Response Time [3 x (Resonant Frequency)]^-1

■ Resonant Frequency (See Table Below)

■ Drive Voltage, DC - 150V

■ Operating Temperature Range: -25° to 85°C

■ Recommended Drivers, MDT693A, MDT694A, BPC001 & BPC002 (See Pages 340-342)


ITEM#	$	£	€	¥	DISPLACEMENT @ 150V	DISPLACEMENT @100V	CAPACITANCE @ 1KHZ, 1V RMS	RESONANT FREQUENCY
AE0203 D04	$ 72.00	£ 54.00	€ 75,60	¥ 12,240	4.6 ± 1.5um	3.0 ± 1.5um	0.09uF	261kHz
AE0203 D08	$ 79.00	£ 59.25	€ 82,95	¥ 13,430	9.1 ± 1.5um	6.1 ± 1.5um	0.18uF	138kHz
AE0505D08	$ 129.48	£ 97.11	€ 135,95	¥ 22,012	9.1 ± 1.5um	6.1 ± 1.5um	0.75uF	138kHz
AE0505D16	$ 151.78	£ 113.84	€ 159,37	¥ 25,803	17.4 ±2.0um	11.6 ± 2.0um	1.40uF	69kHz

Low-Voltage Actuator, Full Displacement @ 100V

This new low-voltage actuator transforms electrical energy into precisely controlled mechanical displacements. The maximum displacement of 15pm is achieved at 100V. Please note, these devices are rated for only 100V, applying a drive voltage in excess of the 100V will lead to probable failure of the actuator.

When mounting, avoid bending forces. Center the mechanical load on the piezo-electric end faces. If the actuator is incorporated into a design which calls for a preload, it is recommended that the preload not exceed 50% of the specified clamping force of 190lbs.

OPERATING PRECAUTIONS:

■ Do not use in Highly Flammable Enviroments

■ Do not Exceed 100V Maximum Drive Voltage

■ Always Ensure Proper Drive Polarity (Red +)

■ Do not exceed 85°C

AE0505D18

6.5 x 6.5 x 18mm

15um @ 100 Volts (Do not exceed 100V)


ITEM#	$	£	€	¥	DISPLACEMENT @ 100V	CLAMPING FORCE	CAPACITANCE @ 1KHZ, 1V RMS	RESONANT FREQUENCY
ITEM#	$	£		¥	DISPLACEMENT @ 100V	CLAMPING FORCE	CAPACITANCE @ 1KHZ, 1V RMS	RESONANT FREQUENCY
AE0505D18	$ 99.00	£ 74.25	€ 103,95	¥ 16,830	15um ± 10%	190 Lbs	1.6uF	69kHz

Piezo-Electric Actuator

The PE4 incorporates one of our piezo-electric stacks, Item #AE0505D16, (See above) and a manual 3/16"-100 threads per inch lead screw. The manual adjuster has better than 1pm sensitivity, which complements the 15pm range of the piezo stack. When the PE4 is combined with our MDT694A driver, translation in the order of 10nm is achievable.

Piezo-electric stack embedded in actuator body 15 um Travel

Manual control 4mm Travel

03/8" Barrel Diameter


ITEM#	$	£	€	¥	DESCRIPTION
PE4	$450.00	£ 337.50	€ 472,50	¥76,500	Piezo-Electric Actuator 4mm Coarse/15um Fine

THOR ^

Sales: 973-579-7227

375
