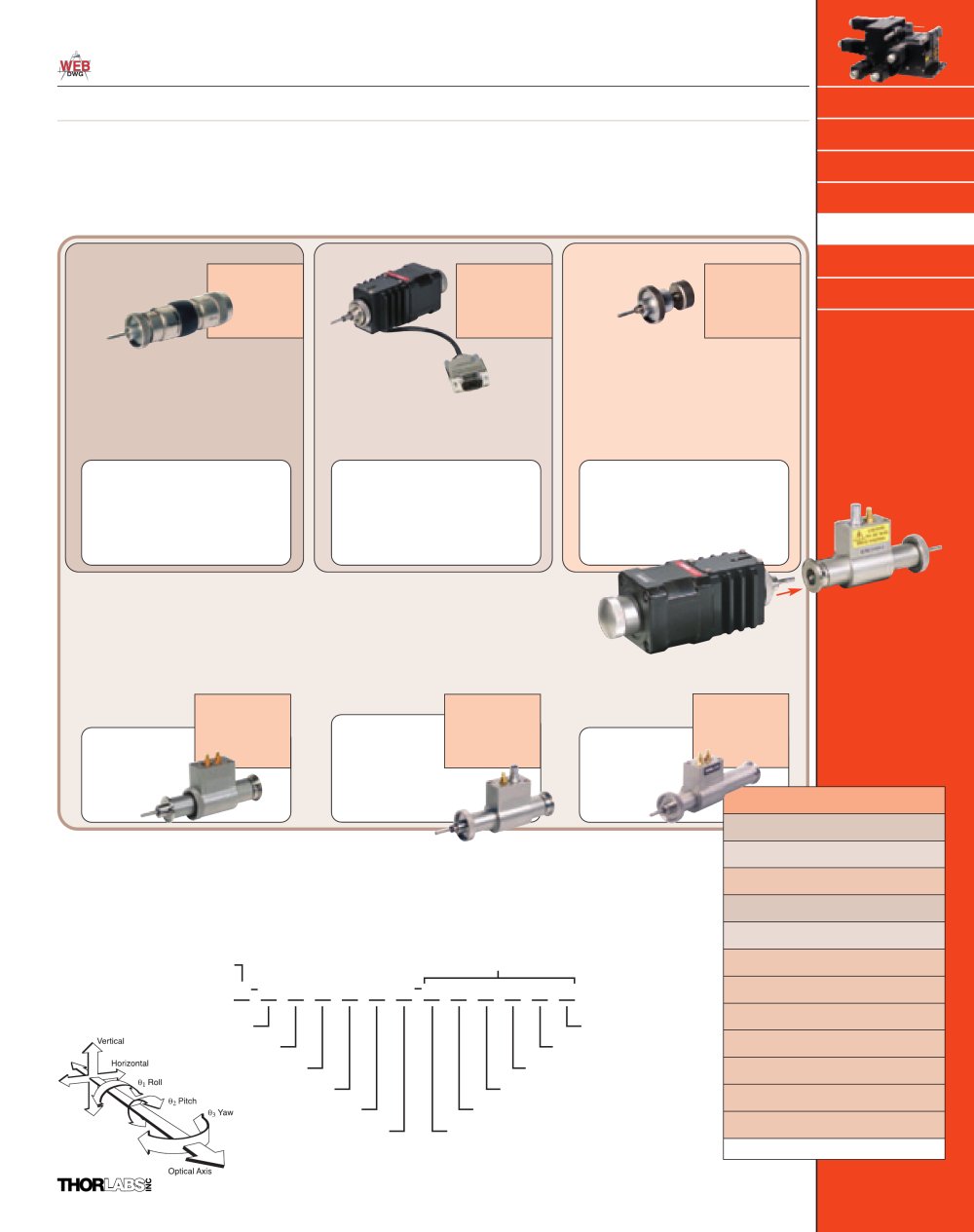

Tools of the trade - Vol 18 - 36188 NanoMax™ 600, Customer Configured 6-Axis Stage… 7 of 7

Translation StagesMotorized

STEP 2

Mirror Mounts Rotation Stages3 Axis Flexure Stages

Pick a set of drives from the 3 options shown below. Choose any combination of drives that suits yourapplication; enter the drive code in the space provided.

& Accessories 4, 5 & 6-Axis Stages

High Resolution Micrometer Stepper Motor Thumbscrew

Drive Electronics

CODE: DPrice: CODE: SPrice: CODE: TPrice:

& Auto-Alignment Actuators &

$ 331.50 $ 586.50 $ 101.58 £ 195.00 £ 345.00 £ 59.75

Adjusters

292,50 517,50 89,63 ¥ 54,600 ¥ 96,600 ¥ 16,730

This high resolution micrometer drivewith 50nm positional resolution is ideally matched in performance tothe capabilities of the NanoMax seriesstages. Full details on this drive can be found on page 371. This Thumbscrew drive is often used in"set & forget" applications or positioning tasks that require a high degree ofstability, but have lower resolutionrequirements making the more expensive high resolution adjuster inappropriate. This stepper motor drive is fully detailedon page 379. When used with our APT series stepper motor driver it provides25,600 microsteps per revolution.

Specifications Specifications Specifications

â–

Travel: 4mm Coarsewith 300µm of Fine.

â–

Travel: 4mm

â–

Travel: 4mm (overall)

â–

Resolution: 20nm

â–

Resolution: 1µm(500µm Thread Pitch)

â–

Resolution: 1µm Coarse& 50nm Fine.

â–

Holding Torque: 23.1 N-cm

Piezo Electric Extenders

These piezo electric extenders provide 20µm or 80µm of high resolution travel to any of themodular drives shown above. The modular design allows for these extenders to be attached inseries with any of Thorlabs modular drives at any time. These extenders are ideal for applicationsthat require high resolution movements over a small range. Coarse adjustments are made using any one of our modular drives shown above.

CODE: PPrice: CODE: QPrice: CODE: RPrice: $ 629.00 $ 1,057.40 $ 1,120.30 £ 370.00

Specifications

£ 622.00 £ 659.00

Specifications

555,00 933,00 ¥ 103,600 â–

Travel: 20µm

¥ 174,160

Specifications

988,50 ¥ 184,520 â–

Travel: 20µm

â–  â–

Resolution: 5nm* Travel: 80µm

â–

Resolution:20nm

â–  â–

Displacement Sensor Resolution: 80nm

*Closed Loop

STAGE:$ FIRST DRIVE:$

STEP 3

SECOND DRIVE:$ THIRD DRIVE:$

Create your part number by inserting the base stage prefix code; then enter the codes for the three individual drives that best suit your application.

FORTH DRIVE:$ FIFTH DRIVE:$ (Enter Zero for No Extender)Yaw Piezo Extender Pitch Piezo Extender Roll Piezo Extender Select Stage* SIXTH DRIVE:$

* Add /M for Metric

Order Code: MAX60

FIRST EXTENDER:$ Optical Axis Drive SECOND EXTENDER:$ Horizontal Drive Vertical Drive THIRD EXTENDER:$ FORTH EXTENDER:$ Roll Drive Pitch Drive Yaw Drive FIFTH EXTENDER:$ Optical Axis Piezo Extender Horizontal Piezo Extender Vertical Piezo Extender SIXTH EXTENDER:$ TOTAL PRICE:$ Sales: 973-579-7227
