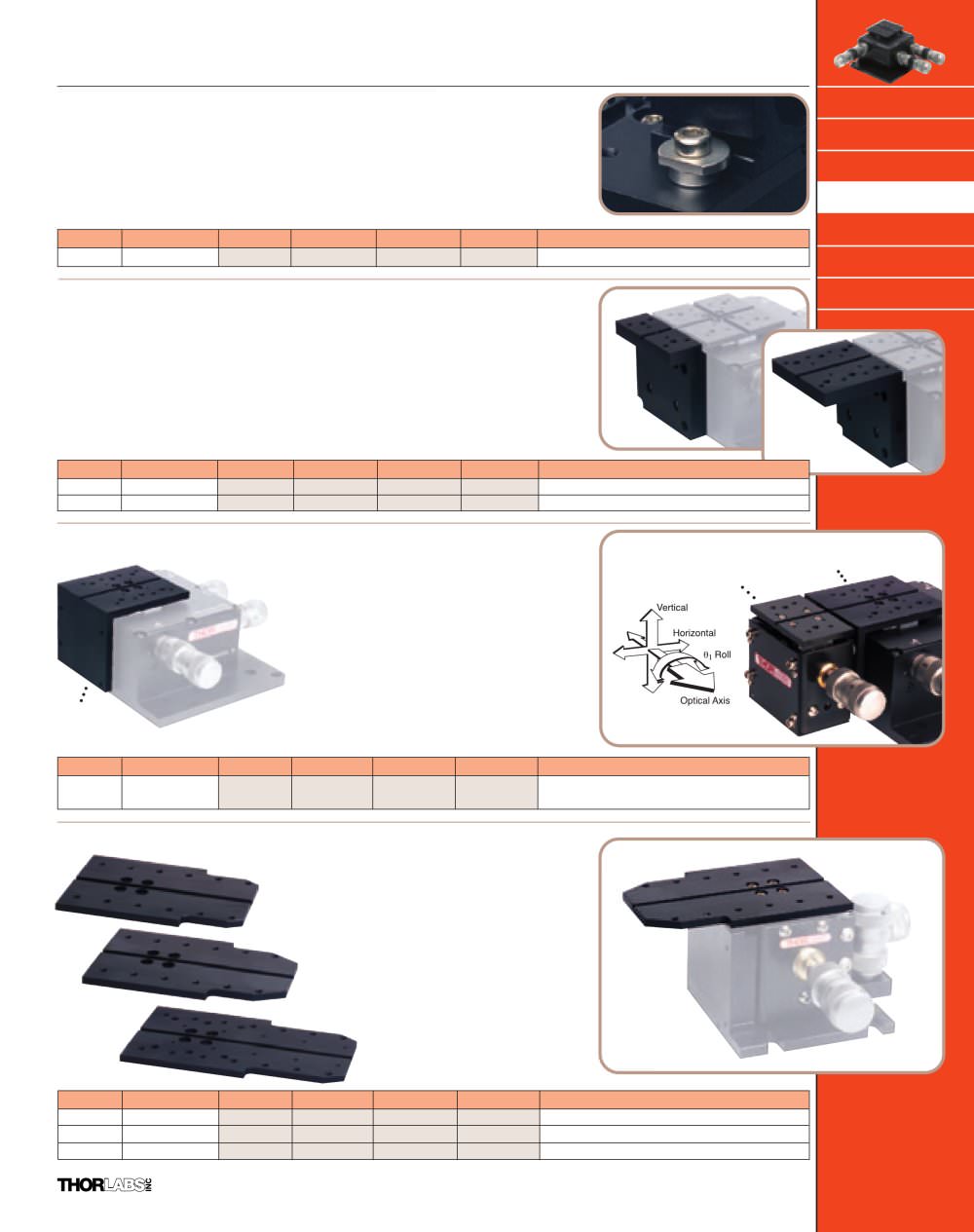

These small clamps are used to attach accessories to the mounting surfaces of the NanoMax™, MicroBlock™, and RollerBlock™ family of stages. The flat milled along one side of the clamp allows the clamp to be rotated so that when the flat is facing the center alignment groove, it is

These two angle brackets mount directly to the fixed portion of the NanoMax and MicroBlock stages. The smaller bracket is often used for fiber launch systems that utilize our aspheric lenses in place of much longer microscope objectives. The longer bracket is used in the preconfigured fiber launch systems that we sell, the larger mounting surface is generally useful when space permits.

■ Mounting Surface AMA007: 26mm Long, at 62.5mm Deck Height

■ Mounting Surface AMA009: 56mm Long, at 62.5mm Deck Height

X-Y-Z movement on the stage deck X-Y-Z plus roll movement "\ .

on the roll accessory .Vertical

Moving platforms replace the top plate of an x-y-z nanopositioner (NanoMax or MicroBlock) and provides a convenient, vertical mounting surface for attaching other components or accessories to the stage. As an example, the photograph to the right shows a Rotation Stage Accessory attached to a NanoMax stage using the AMA011 bracket, this configuration allows the rotation accessory to move along with the moving platform of the x-y-z translation stage.

Compatible with both the NanoMax™ and MicroBlock™ series 3-axis stages

These three extended platforms replace the top plate of any of the NanoMax, MicroBlock, or RollerBlock series stages. The extended mounting surface is convenient for attaching components or accessories that need to reach into smaller spaces.

85mm Long

105mm Long
