Tables & Breadboards

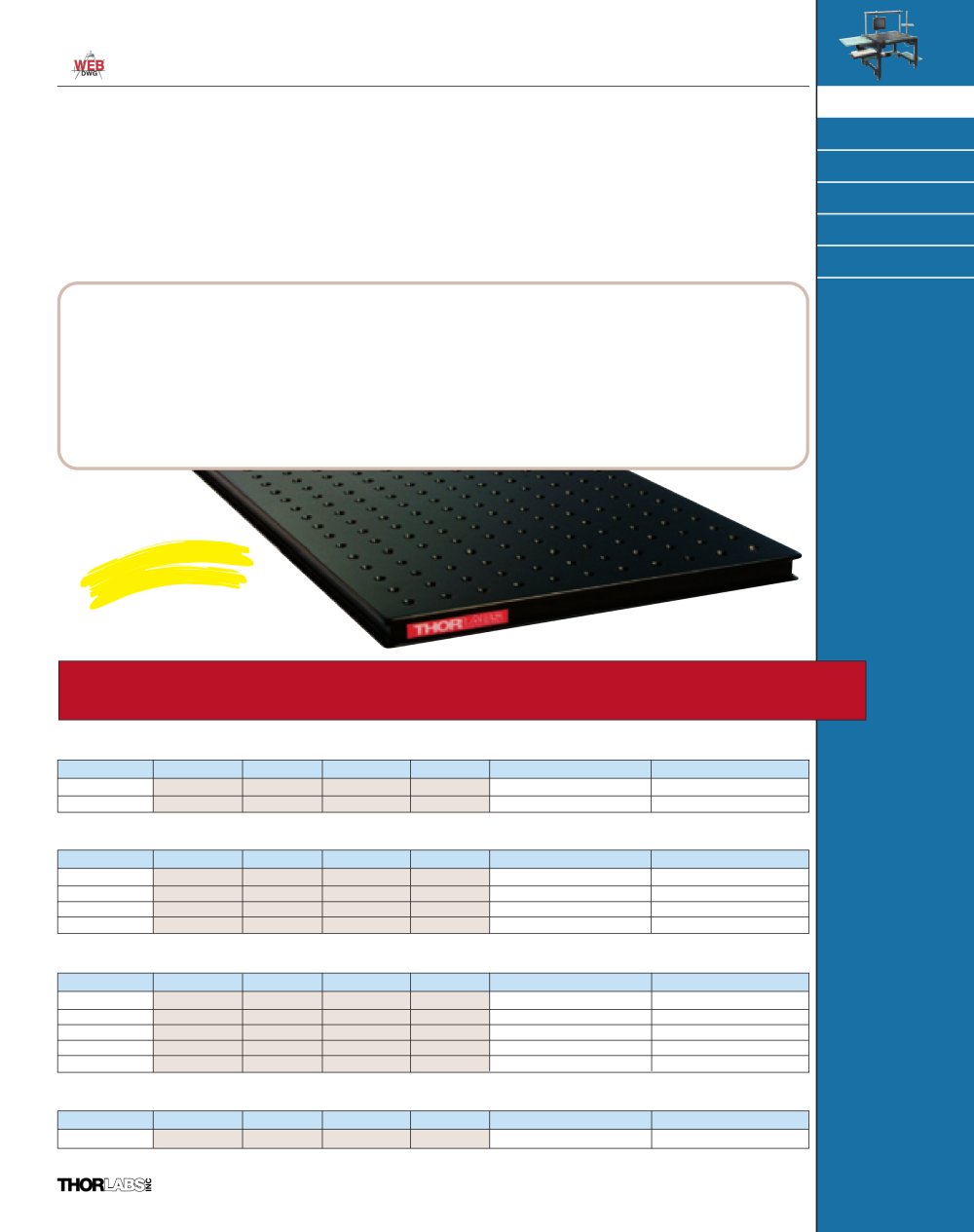

ScienceDesk™ Breadboards, UltraLight™ Honeycomb

ScienceDesk™

UltraLight™ Breadboards are 20% Lighter than Equivalent Solid Aluminum Breadboards Excellent Strength to Weight Ratio

High-density Cores and Internal Damping Provide Both Static and Dynamic Rigidity All-Aluminum Construction Results in Excellent Thermal Stability

Black Matte Finish Reduces Reflectivity and Backscatter

UltraLight™ optical breadboards, with their high strength-to-weight ratio and excellent thermal stability, are ideal for optical setups where portability and dynamic rigidity are important. They are typically used as replacements for aluminum, steel or granite breadboards, as well as for applications demanding a totally nonmagnetic structure.

The Ultralight™ breadboards are offered in Metric and Imperial versions. Each version is 55mm (2.2") thick.

Breadboards

Optical Tables

Specifications

■ Core: High-density Aluminum Honeycomb (59kg/m³)

■ Mounting Hole:

• Imperial: 1/4"-20 on 1" Centers

• Metric: M6 on 25 mm Centers

■ Edge of Top Plate to First Hole:

• Imperial: 1"

• Metric: 25mm

■ Finish: Matte Black

Flatness: ±0.15mm (0.006") Over any 0.3m² Area Thickness: 55mm (2.2")

Construction: Double-plate, Single-honeycomb Core,

Athermalized Design, All Aluminum Construction Damping: Nominal Top and Bottom Plates:

• Top Plate: Aluminum Alloy, 6mm (1/4") Thick

• Bottom Plate: Aluminum Alloy, 3mm (1/8") Thick

pages 18-19 for Thorlabs complete line of UltraLight™ breadboards offered in both imperial metric sizes ranging from 1' x 1' (300mm x 300mm) to 6' x 4' (1800mm x 1250mm).

Ultralight ScienceDesk™ Breadboards: Stocked for Immediate Delivery


ITEM#	$	£	€	¥	DIMENSIONS	COMPATIBLE BASES
PBG12106	$ 979.20	£ 576.00	864,00	¥ 161,280	3' x 2' x 2.2"	Item #'s Ending 501, Page 3-6
PBG12109	$ 1,025.10	£ 603.00	904,50	¥ 168,840	2.5' x 2.5' x 2.2"	Item #'s Ending 502, Page 3-6
Ultralight ScienceDesk™ Breadboards: Call for Lead Time
ITEM#	$	£	€	¥	DIMENSIONS	COMPATIBLE BASES
PBG12110	$ 1,099.90	£ 647.00	€ 970,50	¥ 181,160	3' x 2.5' x 2.2"	Item #'s Ending 503, Pages 3-6
PBG12112	$ 1,210.40	£ 712.00	€ 1.068,00	¥ 199,360	3' x 3' x 2.2"	Item #'s Ending 505, Pages 3-6
PBG12111	$ 1,241.00	£ 730.00	€ 1.095,00	¥ 204,400	4' x 2.5' x 2.2"	Item #'s Ending 504, Pages 3-6
PBG12113	$ 1,400.80	£ 824.00	€ 1.236,00	¥ 230,720	4' x 3' x 2.2"	Item #'s Ending 506, Pages 3-6
Metric Ultralight ScienceDesk™ Breadboards: Stocked for Immediate Delivery
ITEM#	$	£	€	¥	DIMENSIONS	COMPATIBLE BASES
PBG52506	$ 936.70	£ 551.00	€ 826,50	¥ 154,280	900 x 600 x 55mm	Item #'s Ending 501, Pages 3-6
PBG52509	$ 974.10	£ 573.00	€ 859,50	¥ 160,440	750 x 750 x 55mm	Item #'s Ending 502, Pages 3-6
PBG52510	$ 1,042.10	£ 613.00	€ 919,50	¥ 171,640	900 x 750 x 55mm	Item #'s Ending 503, Pages 3-6
PBG52511	$ 1,183.20	£ 696.00	€ 1.044,00	¥ 194,880	1200 x 750 x 55mm	Item #'s Ending 504, Pages 3-6
PBG52513	$ 1,297.10	£ 763.00	€ 1.144,50	¥ 213,640	1200 x 900 x 55mm	Item #'s Ending 506, Pages 3-6
Metric Ultralight ScienceDesk™ Breadboard: Call for Lead Time
ITEM#	$	£	€	¥	DIMENSIONS	COMPATIBLE BASES
PBG52512	$ 1,130.50	£ 665.00	€ 997,50	¥ 186,200	900 x 900 x 55mm	Item #'s Ending 505, Pages 3-6
Please contact your local sales office for a quotation including shipping.

THOR ^

Sales: 973-579-7227
