Optomechanics

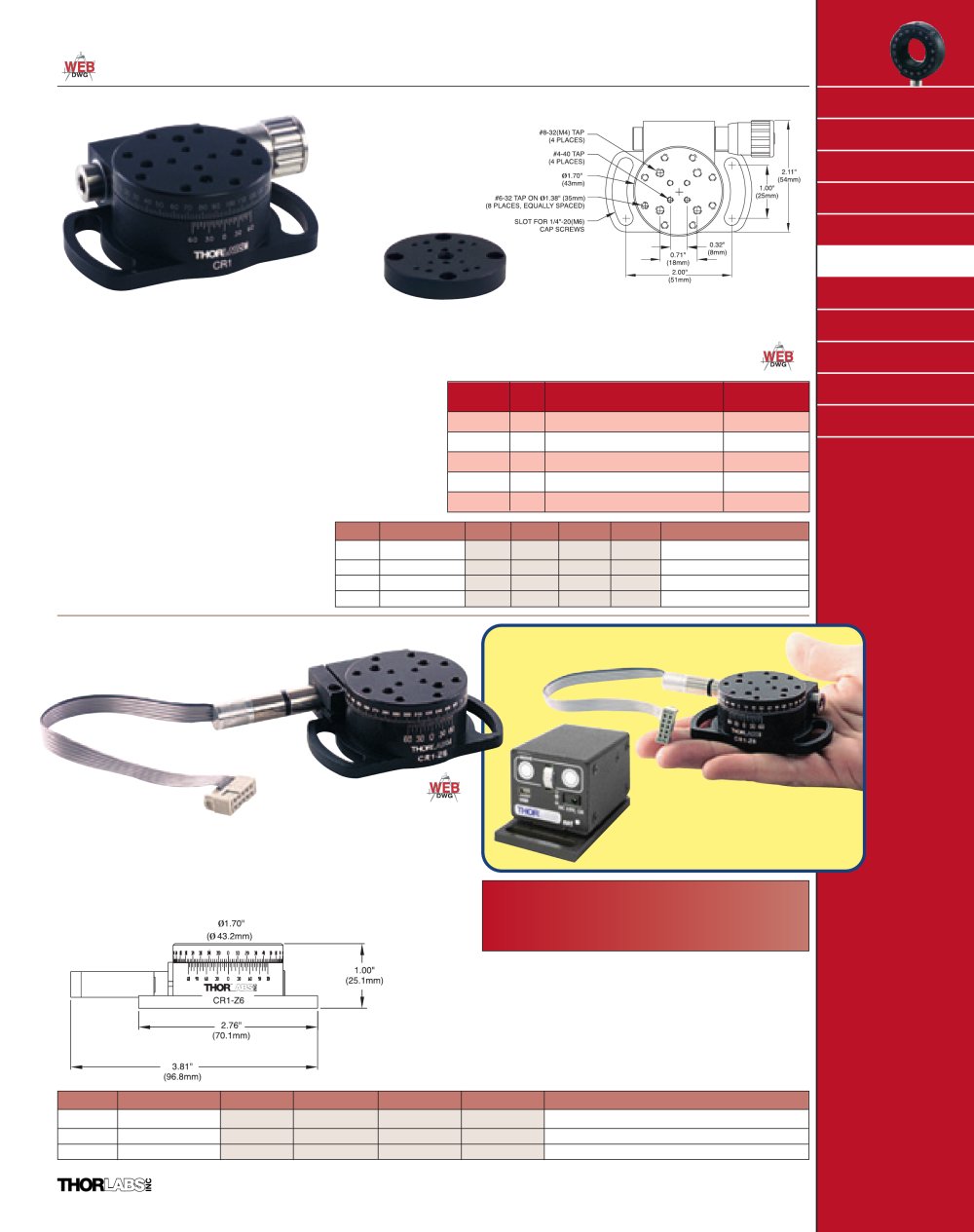

Worm Driven Continuous Rotation Stage

Mounting Basics


		Optical Rails
		Mirror Mounts
		Lens Mounts
		Filter Mounts

#6-32 TAP ON 01.38" (35mm) 8 PLACES, EQUALLY SPACED)

Rotation Post Mounted

Adapters

CR1A

The CR1 rotation stage provides high precision along with low backlash. The low backlash is achieved with an anti backlash gear in the worm gear mechanism. The added ability to stack our line of translation stages on the rotation platform makes this stage useful in any lab.

■ Driven by Fine Pitch Worm Gear Providing 360° Continuous Motion Graduations Marks in 2° Increments Vernier Scale Offers 5 arcmin. Resolution Resolution: 15°/Revolution of Adjuster Knob Application Tested to 25 lbs. Vertical Load Backlash Free

The CR1A is used to connect the following list of Thorlabs mounts to the CR1 Rotation stage.

Apertures Iris Diaphragms


M	OUNT	PAGE	DESCRIPTION
PH Series		70	Post Holders	Yes
T12 Series		235	1/2" Mini Translators	Yes
MS Series		234	Mini 1/4" Translators	No
T25 Series		242	1" Compact Motorized Translator	Yes
GN Series		167	Goniometers	Yes

Lens Tubes

Compatible for Mounting MS1, T12 & T25 Series Translation Stages (With Adapter Plate)

Compatible with PM1/PM2 Prism

Mounting Hardware


ITEM#	METRIC ITEM#	$		€	¥	DESCRIPTION
CR1	CR1/M	$299.00	£ 224.25	€ 313,95	¥ 50,830	Continuous Rotation Stage
CR1A	CR1A/M	$ 18.00	£ 13.50	€ 18,90	¥ 3,060	Rotation Stage Adapter
PM1	PM1/M	$ 9.00	£ 6.75	€ 9,45	¥ 1,530	Small Clamping Arm
PM2	PM2/M	$ 14.00	£ 10.50	€ 14,70	¥ 2,380	Large Clamping Arm

Motorized Rotation Stage

fía

ODC001 DC Motor Controller See Page 333

The CR1-Z6 motorized rotation stage offers high-precision continuous motion in a sturdy, compact package. The backlash-free worm gear design coupled with a high-resolution optical encoder provides the rotational precision required in optical laboratories. The high torque 12V DC Servo Motor supplies ample power for rotating vertical loads as high as 25 lbs.

01.70" (043.2mm)

I'll'I'I'I'I'I'I'I'I'I'I'I'I'I'I'I'I'I'I'I'I'I'l

■ Continuous 360° Rotation

■ Low Backlash Design

■ High Torque DC-Servo Motor with Gear Head & Optical Encoder

■ High Count Optical Encoder (12,288 pulses/rev)

■ Angle Readout of 2° Increments Plus a Vernier Scale Provides 5 arcmin Resolution

■ Application Tested to 25 lbs Vertical Load

1.00" (25.1mm)

THOR

CR1-Z6

2.76" -

(70.1mm)

3.81"

(96.8mm)


ITEM#	METRIC ITEM#	$	£	€	¥	DESCRIPTION
CR1-Z6	CR1/M-Z6	$ 760.00	£ 570.00	€ 798,00	¥ 129,200	Motorized Rotation Stage
CR1-Z6E	CR1/M-Z6E	$ 1,205.00*	£ 903.75*	€ 1.265,25*	¥ 204,850*	Rotation Stage with Servo-Motor Controller
CR1A	CR1A/M	$ 18.00	£ 13.50	€ 18,90	¥ 3,060	Rotation Stage Adapter

*Price includes 10% discount on the drive module ODC001

THOR ^

Sales: 973-579-7227

165
