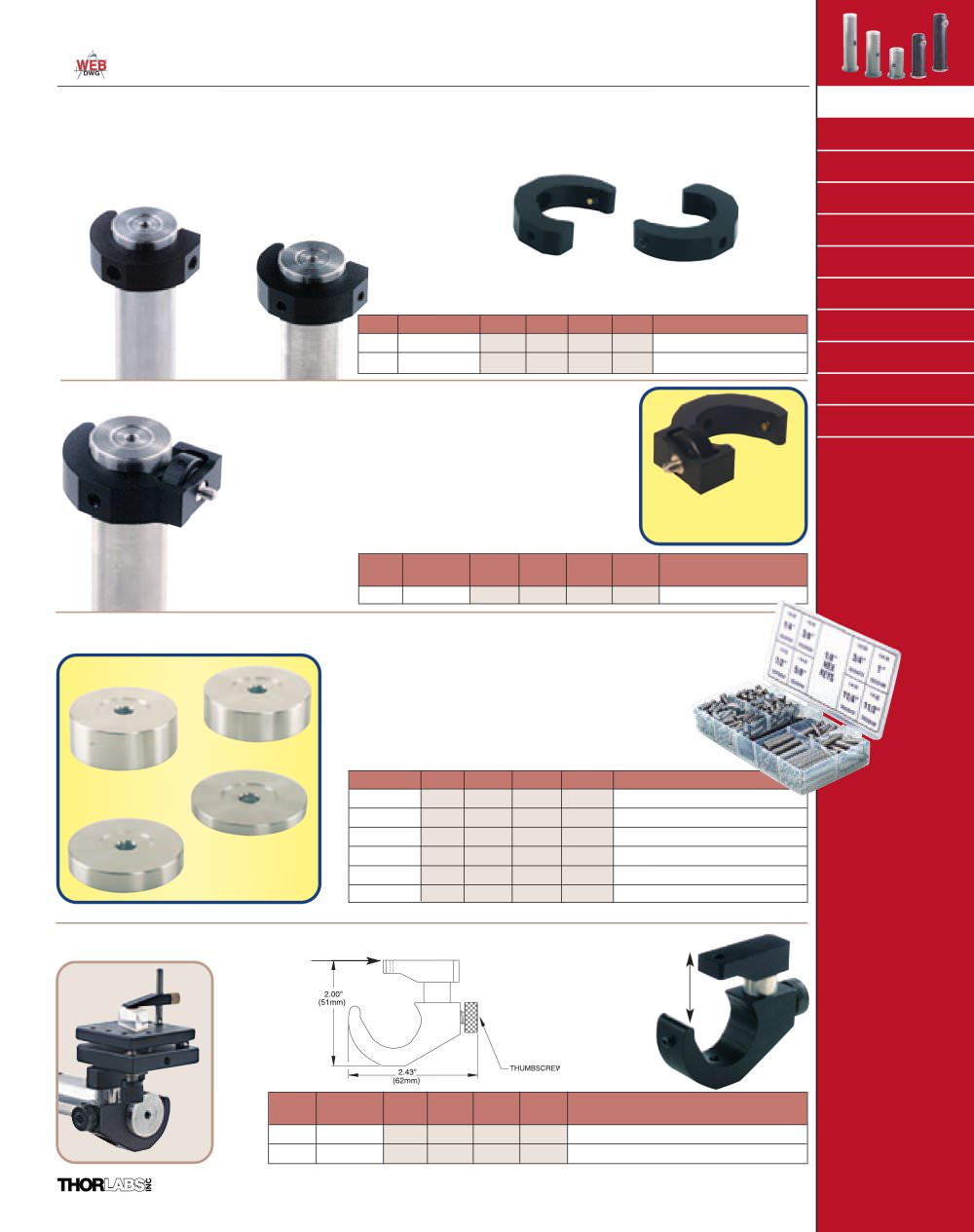

Optomechanics

01" Pillar Post C-Clamps

Mounting Basics Optical Rüilü

This unique family of post clamps are the basic building blocks of our Pillar Post series. By providing two mounting holes at 90° to each other, these clamps allow compact 3-D structures to be erected quickly.

■ Slip On C-Clamp

■ Two Mounting Holes: (1) Counter Bored and (1) Tapped

Mirror Mounts

Lens Mounts

C-Clamp Design Drops onto Side of Post

Filter Mounts

RM1A

#8-32 (M4)

Rotation ^Post Mouiited

RM1B

l/4"-20 (M6)

1/4"-20 (M6) Tap


w	m Tapped and Clearance Holes ' #8-32 (M4) Tap
w	ITEM#	METRIC ITEM#	$	£	€	¥	DESCRIPTION
	ITEM#	METRIC ITEM#	$	£		¥	DESCRIPTION
	RM1A	RM1A/M	$ 24.00	£ 18.00	€ 25,20	¥ 4,080	#8-32 (M4) Pillar Post C-Clamp
	RM1B	RM1B/M	$ 24.00	£ 18.00	€ 25,20	¥ 4,080	1/4"-20 (M6) Pillar Post C-Clamp

Adapters

1/4" (M6) — Counterbore ^^^^^H

#8 (M4) Counterbore

Lens Tubes

01" Pillar Post Angle Clamp

Cage Systems

The RM1C Post C-Clamp allows optic mounts with #8-32 (M4) mounting holes to be attached to our 01" Pillar Posts at any angle. This feature provides the construction flexibility required for beam steering assemblies that are commonly used to change the beam height of a laser setup.

Rotating Knob

Threaded Stud

#8-32 (M4)


	METRIC
ITEM#	ITEM#	$	£	€	¥	DESCRIPTION
RM1C	RM1C/M	$ 45.00	£ 33.75	€ 47,25	¥ 7,650	Thread On C-Clamp

01" Pillar Post Spacers

HW-KIT3

#8-32 Set Screws

These spacers are designed for use with the RS-Series pillar posts. By combining these shims with our standard length pillar posts, post mounting heights can be adjusted to "in between" heights without compromising structural rigidity. The center #8 (M4) clearance hole allows threaded studs to pass through to the mating tap of the components on either side of the shim.


ITEM#	$	£	€	¥	DESCRIPTION
RS01*	$ 6.50	£ 4.88	€ 6,82	¥ 1,105	0.12" (3mm) Thick Spacer
RS02*	$ 7.00	£ 5.25	€ 7,35	¥ 1,190	0.20" (5mm) Thick Spacer
RS03*	$ 7.50	£ 5.62	€ 7,88	¥ 1,275	0.31" (8mm) Thick Spacer
RS04*	$ 8.00	£ 6.00	€ 8,40	¥ 1,360	0.39" (10mm) Thick Spacer
HW-KIT3	$ 99.00	£ 74.25	€103,95	¥ 16,830	#8-32 Set Screws
HW-KIT3/M	$ 99.00	£ 74.25	€103,95	¥ 16,320	M4 Metric Set Screws

*Imperial & Metric compatible

01" Pillar Post Adjustable Height C-Clamp

Allows Vertical Adjustment

RM1D

#8 (M4) Clearance RM1E

#8-32 TAP

RM1D

Clearance hole for #8 (M4) screws. RM1E

Tapped mounting hole for #8-32 (M4) screws.

mUMBSCREV

(62mm)


	METRIC
ITEM#	ITEM#	$	£	€	¥	DESCRIPTION
RM1D	RM1D/M	$ 48.00	£ 36.00	€ 50,40	¥ 8,160	Adjustable Height C-Clamp, #8 (M4) Clearance
RM1E	RM1E/M	$ 48.00	£ 36.00	€50,40	¥ 8,160	Adjustable Height C-Clamp, Tapped #8-32 (M4)

Detailed mechanical drawings: www.thorlabs.com

THOR -Ï

Sales: 973-579-7227
