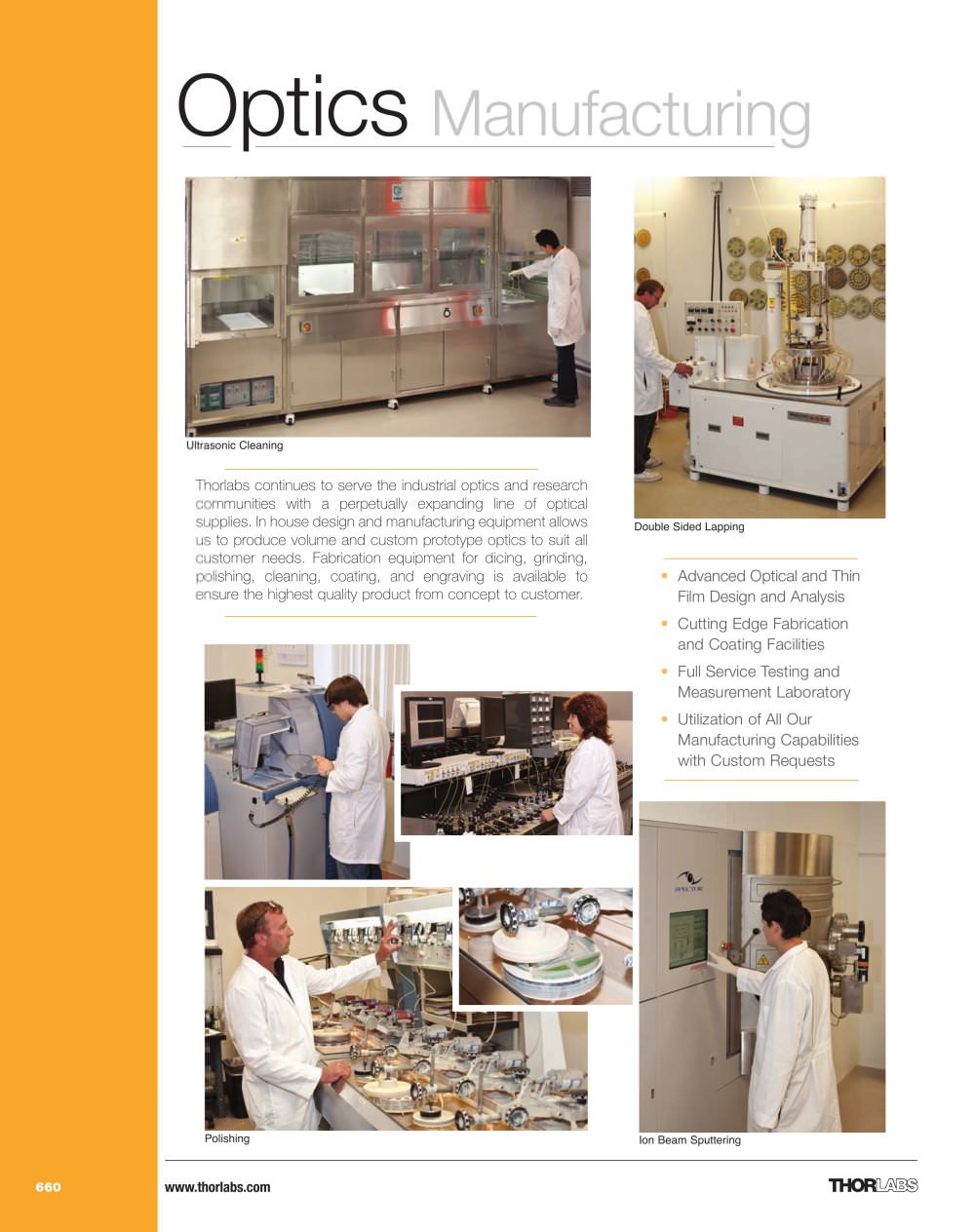

01_SphericalSinglets_660-688.qxd.P:660-688 7/23/11 3:08 PM Page 660 Optics Ultrasonic Cleaning Thorlabs continues to serve the industrial optics and research communities with a perpetually expanding line of optical supplies. In house design and manufacturing equipment allows us to produce volume and custom prototype optics to suit all customer needs. Fabrication equipment for dicing, grinding, polishing, cleaning, coating, and engraving is available to ensure the highest quality product from concept to customer. Double Sided Lapping • Advanced Optical and Thin Film Design and Analysis • Cutting Edge Fabrication and Coating Facilities • Full Service Testing and Measurement Laboratory • Utilization of All Our Manufacturing Capabilities with Custom Requests Polishing 660 www.thorlabs.com Ion Beam Sputtering

Selection Guide Achromatic Lenses Aspheric, Axicon, and GRIN Lenses Cylindrical Lenses

Optical Elements Polarization Optics Optical Isolators Optical Systems Optics Kits Spherical Lenses Spherical Singlets Selection Guide Achromatic Lenses Aspheric Lenses Cylindrical Lenses Spectral Filters Best Form Lens Kits Antireflection Coatings Most of our standard optics are available with high-performance, multilayer AR coatings, which minimize surface reflections within the specified wavelength ranges. These coatings are designed for angles of incidence between 0° and 30° (0.5 NA). The plot shown below indicates the typical performance of the standard coatings in this family as a...

Antireflection Coatings (Continued) UV Fused Silica and N-BK7 Broadband Antireflection Coatings Optical Elements Polarization Optics Optical Isolators Optical Systems N-SF11 Broadband Antireflection Coatings Optics Kits Spherical Lenses Achromatic Lenses Aspheric Lenses Cylindrical Lenses Spectral Filters Calcium Fluoride Broadband Antireflection Coating Barium Fluoride Broadband Antireflection Coating Zinc Selenide Broadband Antireflection Coating Germanium Broadband Antireflection Coating Silicon Broadband Antireflection Coating Please contact your local custom optical scans.

Optical Elements Polarization Optics Optical Isolators Optical Systems Optics Kits Spherical Lenses Spherical Lens Parameters Achromatic Lenses Aspheric Lenses Cylindrical Lenses Spectral Filters M = Magnification or Conjugate Ratio f = EFL (Effective Focal Length) Please refer to our website for complete models and drawings. f ~ S + S' Parax'^ Lens Formula (assumes sin 6=6) S = Object Distance, positive for objects to the left of the front principal point P. S' = Image Distance, positive for images to the right of the rear Transmission of Various Materials Please contact your local...

Calcium Fluoride Barium Fluoride Zinc Selenide CaF2 Total Transmission (Uncoated) ) mm sample thickness Wavelength (um) Barium Fluoride is transparent from the UV to the IR. The material is less resistant to water than CaF2. The material is relatively hard, but very sensitive to thermal shock. Of the optical fluorides it is the most resistant to high-energy Silicon Piano-Convex lenses are an ideal choice particularly well suited for imaging, biomedical, With a transmission range from 600 nm - 16 mn, zinc selenide Piano-Convex lenses absorption coefficient, these lenses are also particularly...

Optical Elements Polarization Optics Optical Isolators Optical Systems Optics Kits Spherical Lenses Achromatic Lenses Aspheric Lenses Cylindrical Lenses Spectral Filters N-BK7: Best Form Lenses Best Form optics are designed to minimize spherical aberration while still using spherical surfaces to form the lens. Each side of the lens is polished so that it has a different radius of curvature, making these lenses more expensive than plano-convex or bi-convex lenses. Ideally, Best Form Lenses are best used at infinite conjugates in high-power applications where As the diameter of a beam...

UV Fused Silica: Piano-Convex Lenses ■ Material: UV-Grade Fused Silica Design Wavelength: Focal Length Tolerance: ± 1 % Surface Quality: Optical Elements Polarization Optics Optical Isolators Optical Systems Please refer to our website for complete models and drawings. UV-grade fused silica has excellent transmission properties from the UV to near IR. See page 664 for a transmission versus wavelength plot. Broadband UV AR Coating, Rayg < 0.5% To order the lens with an AR coating for the 290 — 370 nm range, find the correct lens diameter, add the coating code to the Item #, and then add the...

Optical Elements Polarization Optics Optical Isolators Optical Systems Optics Kits Spherical Lenses Achromatic Lenses Aspheric Lenses Cylindrical Lenses Spectral Filters N-BK7: Piano-Convex Lenses (Page 1 of 4) ■ Wavelength Range: 350 nm - 2.0 iim, Uncoated Focal Length Tolerance: ± 1 % Surface Quality: 40-20 Scratch-Dig Piano-Convex optics are best used where one conjugate point (object distance S or image distance S') is more than five times the other. The performance of this lens shape is near best-form for either focusing collimated ight or for collimating a point source. Please refer...

N-BK7: Piano-Convex Lenses (Page 2 of 4) N-BK7 Piano-Convex Lenses: Diameter = 25.4 mm (1") Optical Elements Polarization Optics *Edge thickness given before 0.20 mm at 45° typical chamfer. N-BK7 Piano-Convex Lenses: Diameter = 30 mm See trie Lens Mount Section, Starting on Page 267. *Edge thickness given before 0.20 mm at 45° typical chamfer. N-BK7 Piano-Convex Lenses: Diameter : **See the Lens Mount Section, Starting on Page 267. *Edge thickness given before 0.20 mm at 45° typical chamfer "^See the Lens Mount Section, Starting on Page 267. N-BK7 Piano-Convex Lenses: Diameter = 75 mm *Edge...

Optical Elements Polarization Optics Optical Isolators Optical Systems Optics Kits Spherical Lenses Achromatic Lenses Aspheric Lenses Cylindrical Lenses Spectral Filters High-Power, Piano-Convex Lenses (Page 3 of 4) These Piano-Convex Lenses are fabricated from N-BK7 glass and feature laser line V-coats at 633 nm, 780 nm, or 1064/532 nm. They are characterized by a positive focal length and near-best-form shape for infinite and finite conjugate applications. With an average reflectance of less than 0.25% at the coating wavelength, these lenses provide exceptionally efficient transmittance...
