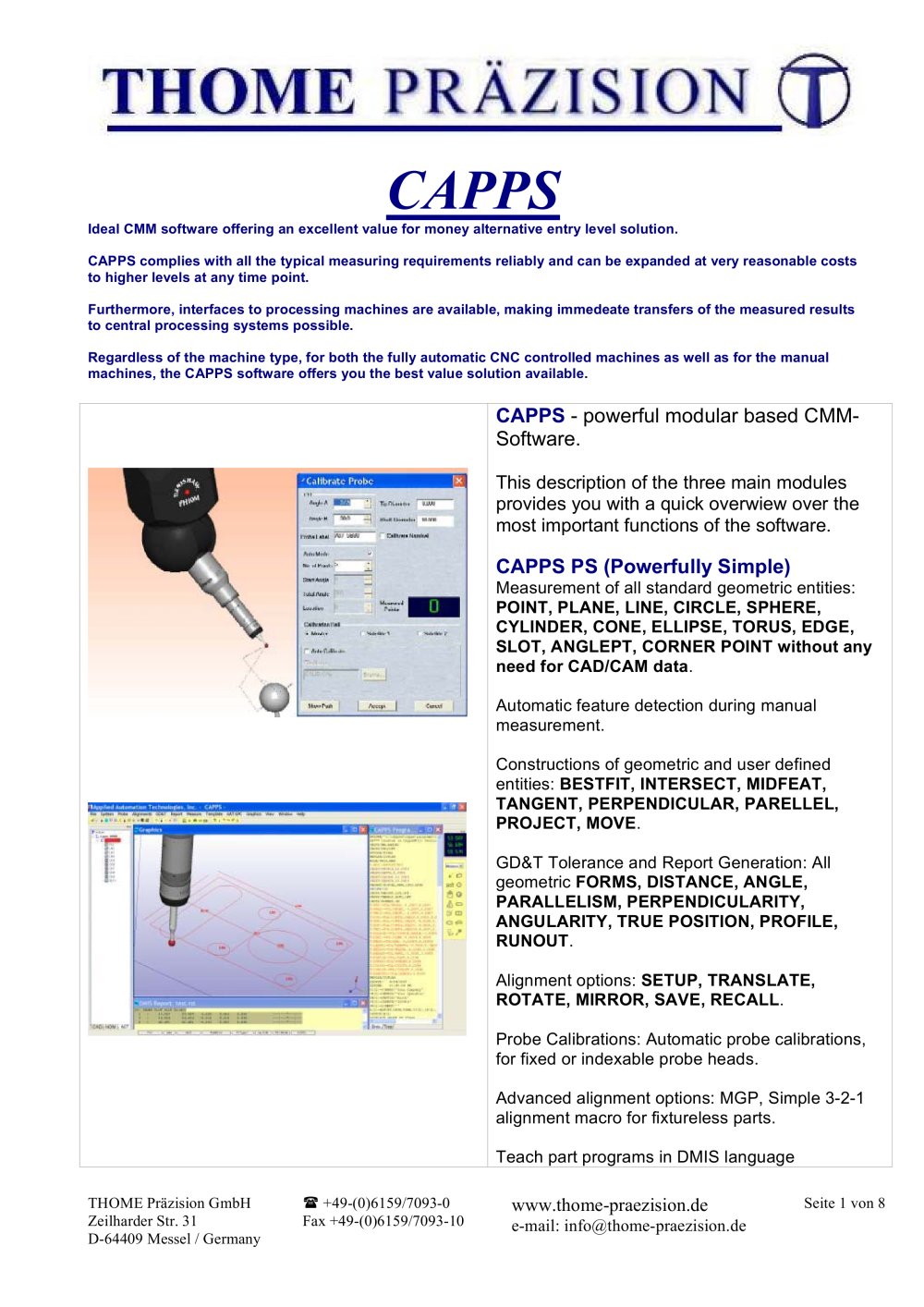

CAPPS
Ideal CMM
software offering an excellent value for money alternative entry level solution.
CAPPS complies with all the typical measuring requirements reliably and can be expanded at very reasonable costs
to higher levels at any time point.
Furthermore, interfaces to processing machines are available, making immedeate transfers of the measured results
to central processing systems possible.
Regardless of the machine type, for both the fully automatic CNC controlled machines as well as for the manual
machines, the CAPPS
software offers you the best value solution available.
CAPPS - powerful modular based CMMSoftware.
This description of the three main modules
provides you with a quick overwiew over the
most important functions of the
software.
CAPPS PS (Powerfully Simple)
Measurement of all standard geometric entities:
POINT, PLANE, LINE, CIRCLE, SPHERE,
CYLINDER, CONE, ELLIPSE, TORUS, EDGE,
SLOT, ANGLEPT, CORNER POINT without any
need for CAD/CAM data.
Automatic feature detection during manual
measurement.
Constructions of geometric and user defined
entities: BESTFIT, INTERSECT, MIDFEAT,
TANGENT, PERPENDICULAR, PARELLEL,
PROJECT, MOVE.
GD&T Tolerance and Report Generation: All
geometric FORMS, DISTANCE, ANGLE,
PARALLELISM, PERPENDICULARITY,
ANGULARITY, TRUE POSITION, PROFILE,
RUNOUT.
Alignment options: SETUP, TRANSLATE,
ROTATE, MIRROR, SAVE, RECALL.
Probe Calibrations: Automatic probe calibrations,
for fixed or indexable probe heads.
Advanced alignment options: MGP, Simple 3-2-1
alignment macro for fixtureless parts.
Teach part programs in DMIS language
