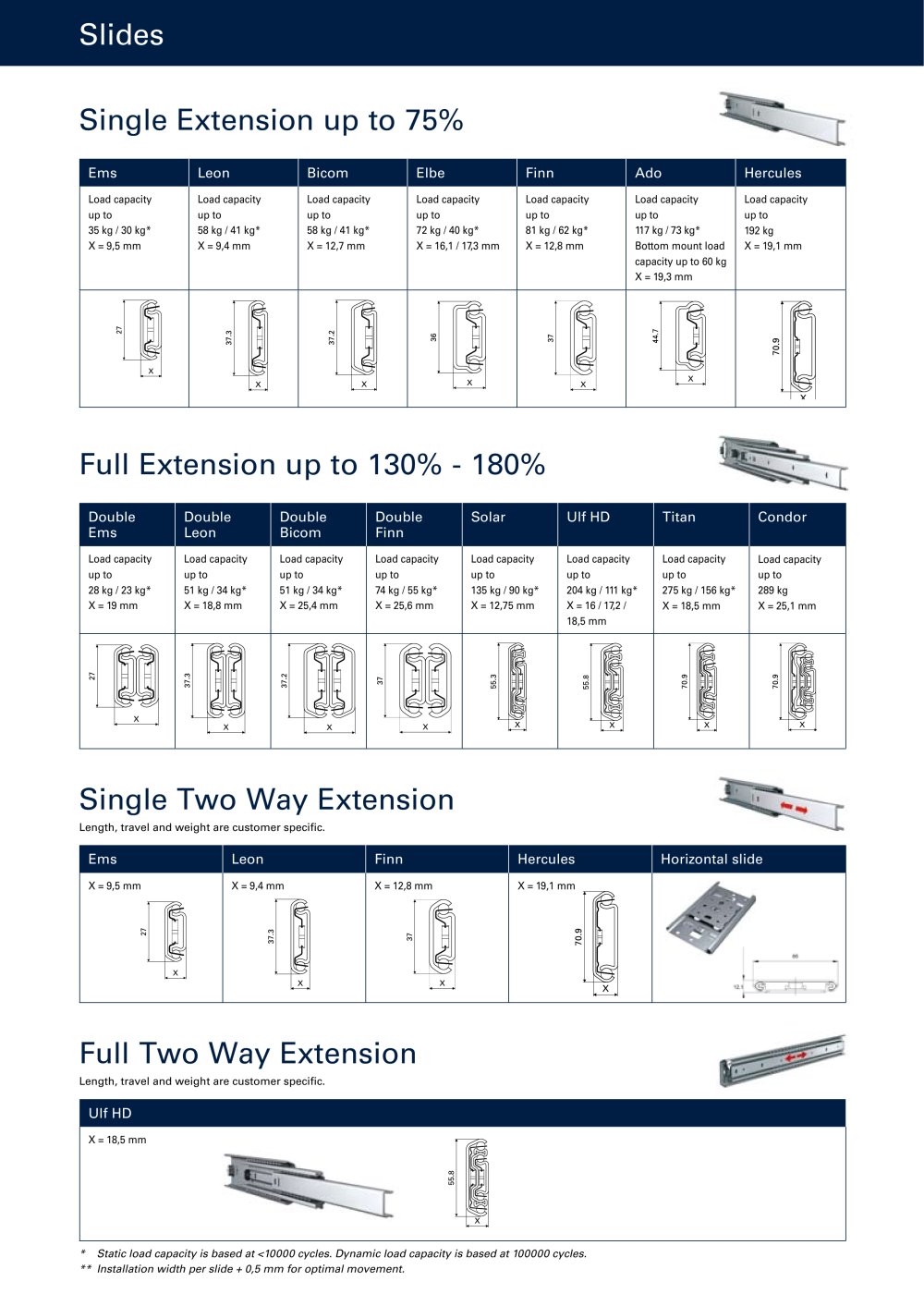

Single Extension up to 75% Ems Leon Bicom Elbe Finn Ado Hercules Load capacity up to 35 kg / 30 kg* X = 9,5 mm Load capacity up to 58 kg / 41 kg* X = 9,4 mm Load capacity up to 58 kg / 41 kg* X = 12,7 mm Load capacity up to 72 kg / 40 kg* X = 16,1 / 17,3 mm Load capacity up to 81 kg / 62 kg* X = 12,8 mm Load capacity up to 117 kg / 73 kg* Bottom mount load capacity up to 60 kg X = 19,3 mm Load capacity up to 192 kg X = 19,1 mm Full Extension up to 130% - 180% Double Ems Double Leon Double Bicom Double Finn Solar Ulf HD Titan Condor Load capacity up to 28 kg / 23 kg* X = 19 mm Load capacity up to 51 kg / 34 kg* X = 18,8 mm Load capacity up to 51 kg / 34 kg* X = 25,4 mm Load capacity up to 74 kg / 55 kg* X = 25,6 mm Load capacity up to 135 kg / 90 kg* X = 12,75 mm Load capacity up to 204 kg / 111 kg* X = 16 / 17,2 / 18,5 mm Load capacity up to 275 kg / 156 kg* X = 18,5 mm Load capacity up to 289 kg X = 25,1 mm Single Two Way Extension Length, travel and weight are customer specific. Ems Leon Finn Hercules Horizontal slide X = 9,5 mm X = 9,4 mm X = 12,8 mm X = 19,1 mm Full Two Way Extension Length, travel and weight are customer specific. Ulf HD X = 18,5 mm Slides * Static load capacity is based at <10000 cycles. Dynamic load capacity is based at 100000 cycles. ** Installation width per slide + 0,5 mm for optimal movement.
