TELESCOPICSLIDES

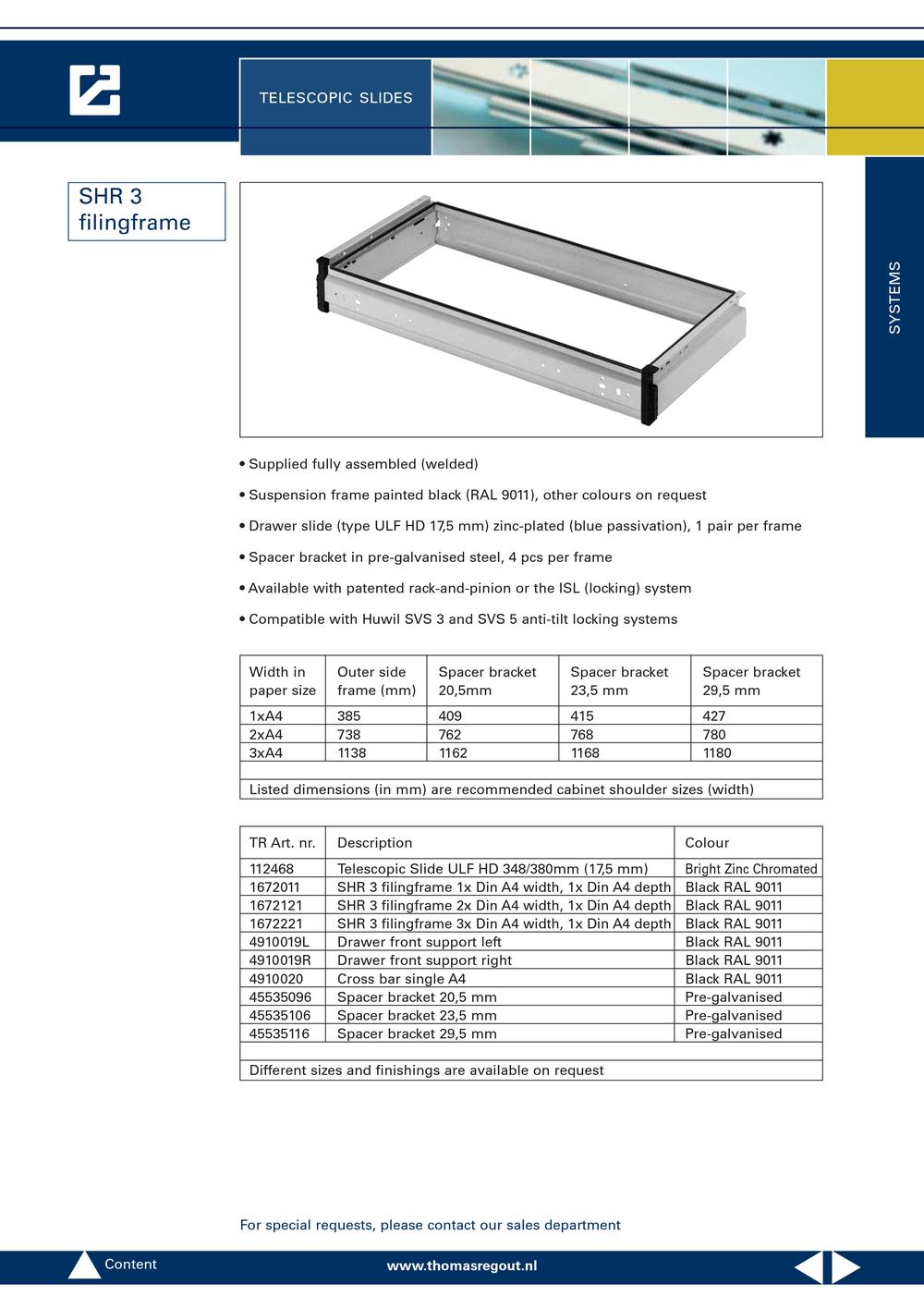

SHR 3 filingframe

SYSTEMS • Supplied fully assembled (welded)• Suspension frame painted black (RAL 9011), other colours on request • Drawer slide (type ULF HD 17,5 mm) zinc-plated (blue passivation), 1 pair per frame • Spacer bracket in pre-galvanised steel, 4 pcs per frame • Available with patented rack-and-pinion or the ISL (locking) system • Compatible with Huwil SVS 3 and SVS 5 anti-tilt locking systems Width in Outer side Spacer bracket Spacer bracket Spacer bracket paper sizeframe (mm)20,5mm23,5 mm29,5 mm 1xA4385409415427 2xA4738762768780 3xA41138116211681180 Listed dimensions (in mm) are recommended cabinet shoulder sizes (width) TR Art. nr.DescriptionColour 112468Telescopic Slide ULF HD 348/380mm (17,5 mm) Bright Zinc Chromated 1672011 SHR 3 filingframe 1x Din A4 width, 1x Din A4 depth Black RAL 9011 1672121 SHR 3 filingframe 2x Din A4 width, 1x Din A4 depth Black RAL 9011 1672221 SHR 3 filingframe 3x Din A4 width, 1x Din A4 depth Black RAL 9011 4910019LDrawer front support leftBlack RAL 9011 4910019RDrawer front support rightBlack RAL 9011 4910020Cross bar single A4Black RAL 9011 45535096Spacer bracket 20,5 mmPre-galvanised 45535106Spacer bracket 23,5 mmPre-galvanised 45535116Spacer bracket 29,5 mmPre-galvanised Different sizes and finishings are available on request For special requests, please contact our sales department Content www.thomasregout.nl www.thomasrtegout.nl
