TELESCOPICSLIDES

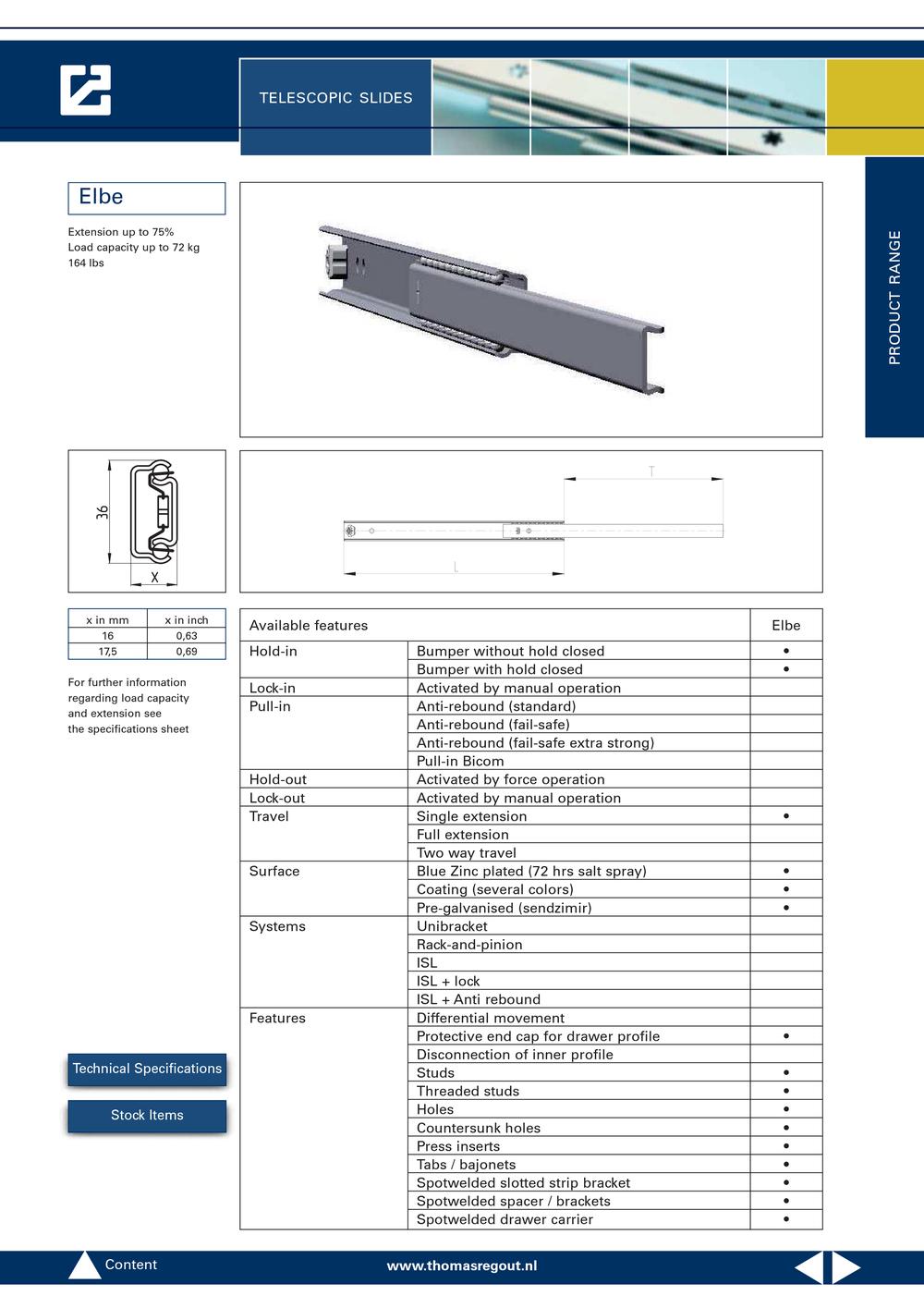

Elbe

Extension up to 75% Load capacity up to 72kg 164lbs For further informationregarding load capacity and extension see the specifications sheet PRODUCTRANGE x in mmx in inch 160,6317,50,69 Available featuresElbe Hold-inBumper without hold closed• Bumper with hold closed• Lock-inActivated by manual operation Pull-inAnti-rebound (standard) Anti-rebound (fail-safe) Anti-rebound (fail-safe extra strong) Pull-in Bicom Hold-outActivated by force operation Lock-outActivated by manual operation TravelSingle extension• Full extension Two way travel SurfaceBlue Zinc plated (72 hrs salt spray)• Coating (several colors)• Pre-galvanised (sendzimir)• SystemsUnibracket Rack-and-pinion ISL ISL + lock ISL + Anti rebound FeaturesDifferential movement Protective end cap for drawer profile• Disconnection of inner profile Technical Specifications Studs• Threaded studs• Stock Items Holes• Countersunk holes• Press inserts• Tabs / bajonets• Spotwelded slotted strip bracket• Spotwelded spacer / brackets•Spotwelded drawer carrier• Content www.thomasregout.nl www.thomasrtegout.nl
