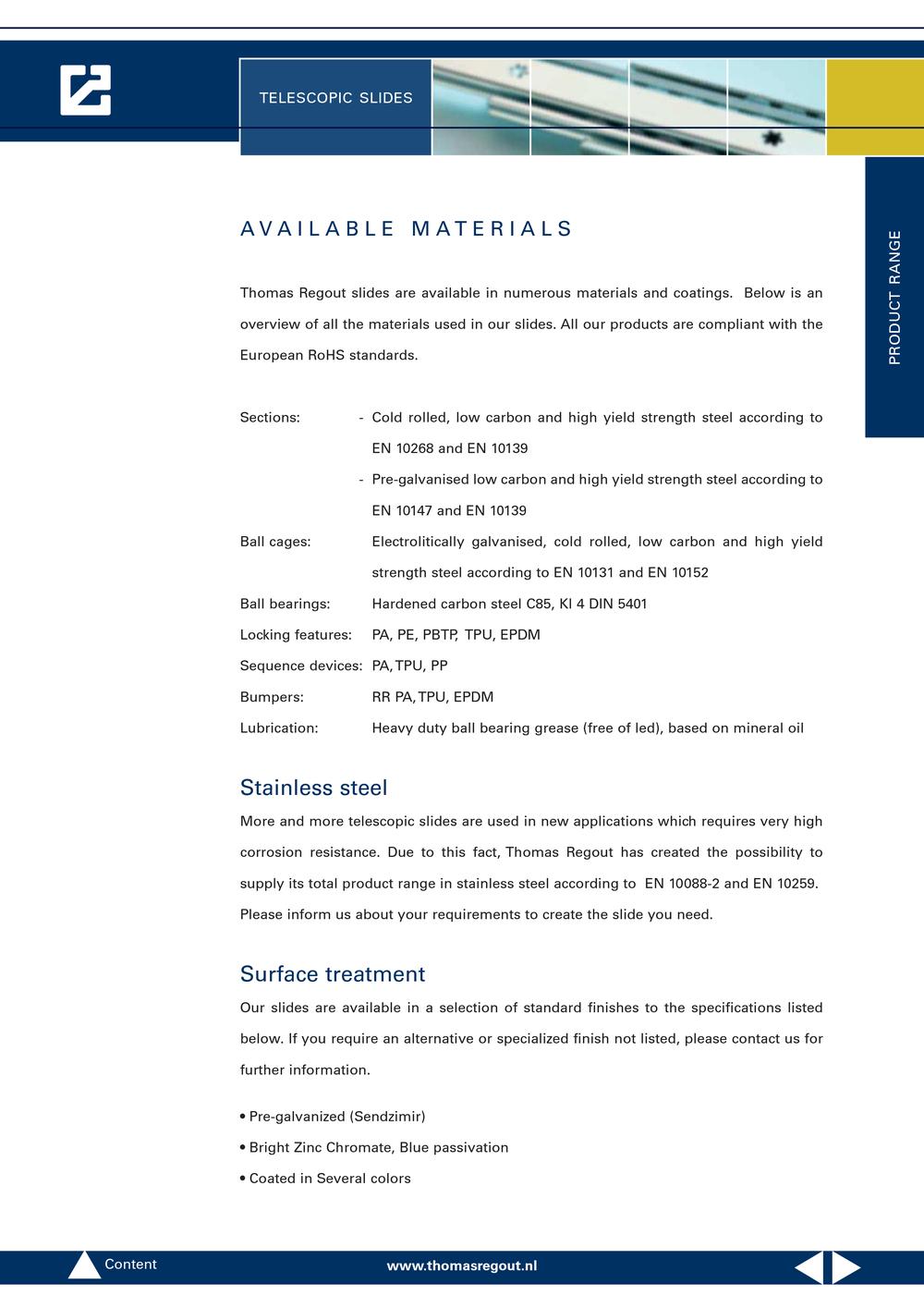

AVAILABLE MATERIALS

Thomas Regout slides are available in numerous materials and coatings. Below is anoverview of all the materials used in our slides. All our products are compliant with the European RoHS standards.Sections:-Cold rolled, low carbon and high yield strength steel according toEN10268 and EN 10139-Pre-galvanised low carbon and high yield strength steel according toEN 10147 and EN 10139Ball cages:Electrolitically galvanised, cold rolled, low carbon and high yieldstrength steel according to EN 10131 and EN 10152Ball bearings:Hardened carbon steel C85, Kl 4 DIN 5401 Locking features:PA, PE, PBTP, TPU, EPDM Sequence devices:PA, TPU, PP Bumpers:RR PA, TPU, EPDM Lubrication:Heavy duty ball bearing grease (free of led), based on mineral oil
PRODUCTRANGE

Stainless steel

More and more telescopic slides are used in new applications which requires very high corrosion resistance. Due to this fact, Thomas Regout has created the possibility to supply its total product range in stainless steel according to EN 10088-2 and EN 10259. Please inform us about your requirements to create the slide you need.

Surface treatment

Our slides are available in a selection of standard finishes to the specifications listed below. If you require an alternative or specialized finish not listed, please contact us for further information.• Pre-galvanized (Sendzimir)• Bright Zinc Chromate, Blue passivation • Coated in Several colors Content www.thomasregout.nl www.thomasrtegout.nl
