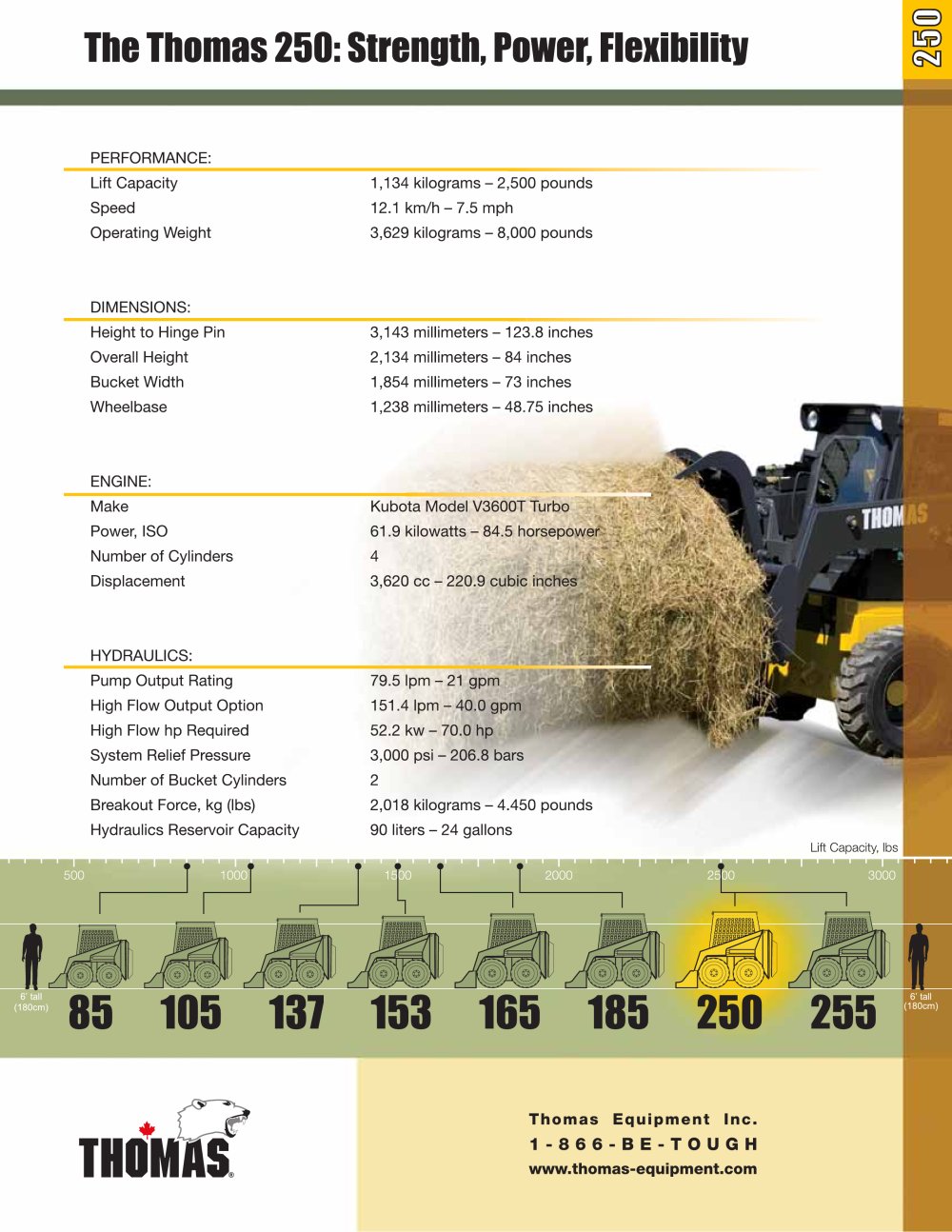

| The Thomas 250: Strength, Power, Flexibility | |||||||||||||||||||||||||
| PERFORMANCE: | |||||||||||||||||||||||||
| Lift Capacity 1,134 kilograms - 2,500 pounds Speed 12.1 km/h - 7.5 mph Operating Weight 3,629 kilograms - 8,000 pounds | |||||||||||||||||||||||||
| DIMENSIONS: | |||||||||||||||||||||||||
| Height to Hinge Pin Overall Height Bucket Width Wheel base | 3,143 millimeters - 123.8 inches 2,134 millimeters - 84 inches 1,854 millimeters - 73 inches 1,238 millimeters - 48.75 inches | ||||||||||||||||||||||||
| ENGINE: | |||||||||||||||||||||||||
| Make Power, ISO Number of Cylinders Displacement | Kubota Model V3600T Turbo 61.9 kilowatts - 84.5 horsepower 4 3,620 cc - 220.9 cubic inches | ||||||||||||||||||||||||
| HYDRAULICS: | |||||||||||||||||||||||||
| Pump Output Rating High Flow Output Option High Flow hp Required System Relief Pressure Number of Bucket Cylinders Breakout Force, kg (lbs) Hydraulics Reservoir Capacity | 79.5 Ipm -21 gpm 151.4 Ipm-40.0 gpm 52.2 kw - 70.0 hp 3,000 psi - 206.8 bars 2 2,018 kilograms - 4.450 pounds 90 liters - 24 gallons | ||||||||||||||||||||||||
| 85 105 137 153 165 185 250 | |||||||||||||||||||||||||
| THOMAS | |||||||||||||||||||||||||
