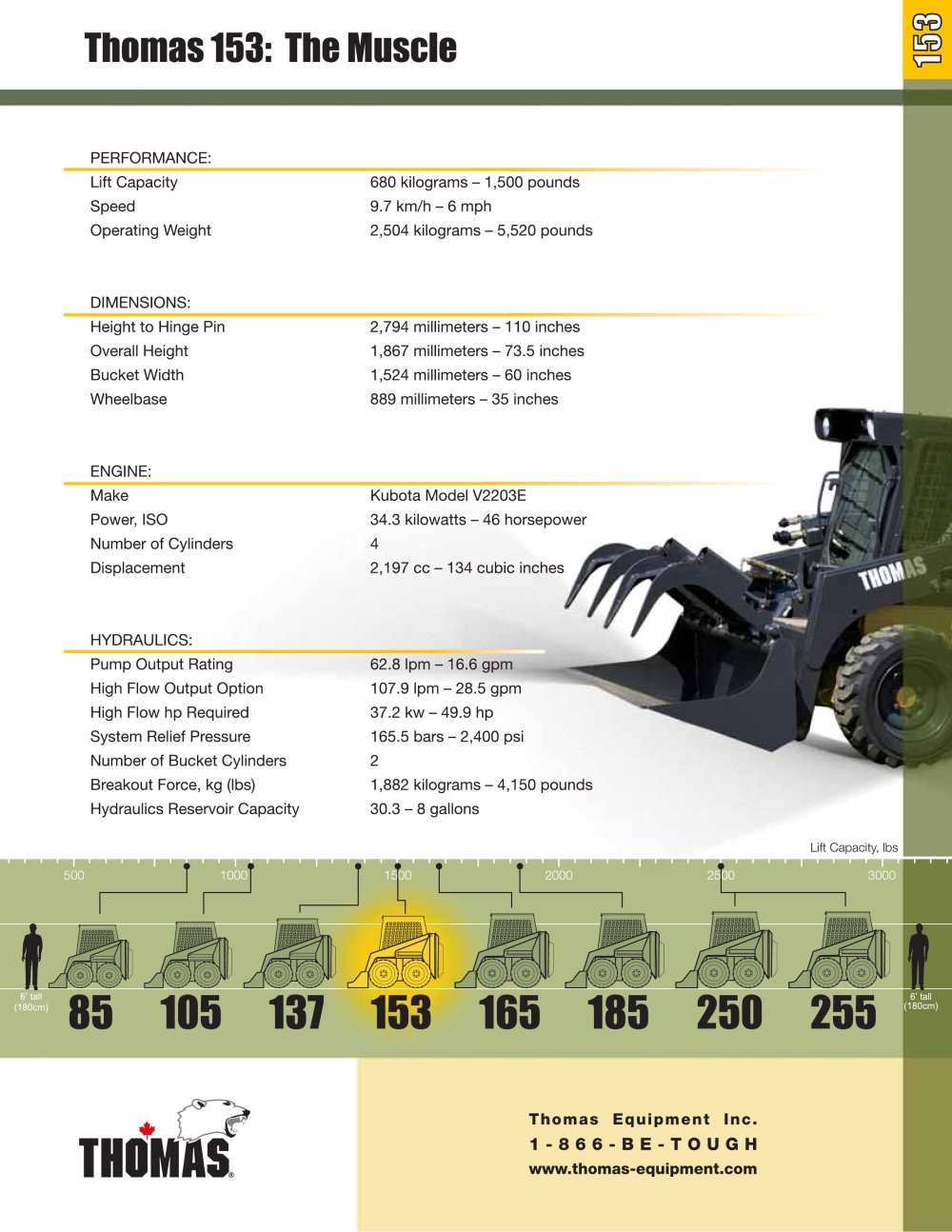

| Thomas 153: The Muscle | |||||||||||||||||||||||||
| PERFORMANCE:_ Lift Capacity 680 kilograms - 1,500 pounds Speed 9.7 km/h - 6 mph Operating Weight 2,504 kilograms - 5,520 pounds | |||||||||||||||||||||||||
| DIMENSIONS: | |||||||||||||||||||||||||
| Height to Hinge Pin Overall Height Bucket Width Wheel base | 2,794 millimeters - 110 inches 1,867 millimeters - 73.5 inches 1,524 millimeters - 60 inches 889 millimeters - 35 inches | ||||||||||||||||||||||||
| ENGINE: | |||||||||||||||||||||||||
| Make Power, ISO Number of Cylinders Displacement | Kubota Model V2203E 34.3 kilowatts - 46 horsepower 4 2,197 cc - 134 cubic inches | ||||||||||||||||||||||||
| HYDRAULICS: | |||||||||||||||||||||||||
| Pump Output Rating High Flow Output Option High Flow hp Required System Relief Pressure Number of Bucket Cylinders Breakout Force, kg (lbs) Hydraulics Reservoir Capacity | 62.8 lpm-16.6 gpm 107.9 lpm-28.5 gpm 37.2 kw - 49.9 hp 165.5 bars-2,400 psi 2 1,882 kilograms - 4,150 pounds 30.3 - 8 gallons | ||||||||||||||||||||||||
| 85 105 137 153 165 185 250 | |||||||||||||||||||||||||
| THOMAS | |||||||||||||||||||||||||
