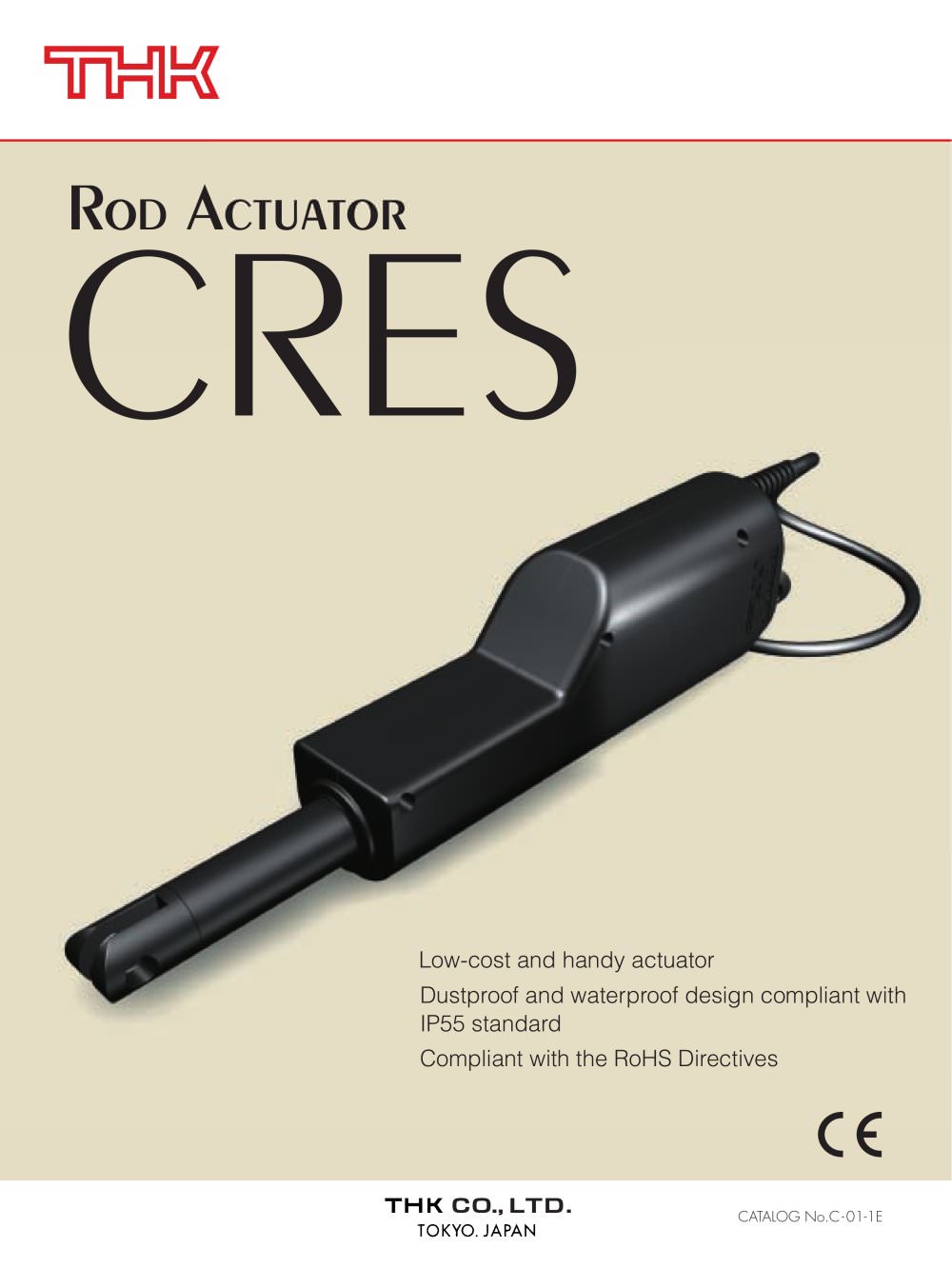

RoD Actuato - 1

ROD ACTUATOR IP55 standard Compilant with the RoHS Directives THK CATALOG No.C-01-1E TOKYO. JAPAN

Open the catalog to page 1
RoD Actuato - 2

ROD CTUATOR CRES All actuator components are concealed Splash-Proof construction, complies with IP55 standard 1

Open the catalog to page 2
RoD Actuato - 3

CRES Lineup High-Speed Type: CRES 200 High-Power Type: CRES 500 Rated thrust: 196 N;rated speed: 55 mm/s Rated thrust: 490;rated speed: 15 mm/s 2

Open the catalog to page 3
RoD Actuato - 4

ROD CTUATOR CRES Rod Actuator CRES is used in many applications including equipment familiar to everyday use. It is optimal for situations where simple operations with simple control are required. 0 3

Open the catalog to page 4
RoD Actuato - 9

External Dimensions of CRES CRES Model Number Coding Model number CRES Representative thrust 200: 196 N (20 kgf) 500: 490 N (50 kgf) ~®~ Stroke length 50 mm, 100 mm, 130 mm Motor voltage 12: 12 VDC 24: 24 VDC Special option No symbol: none E: Connector, etc. (mounted at THK) S: Contact THK for details. * Standard cable has a length of 1,000 mm (with wire end Pre-Soldered). CRES Lot Number Indication Details Item Year of manufacture Month of manufacture Date of manufacture Type© Type© Type© 05: 2005 1: January 01: 1st 1: CRES 500 - 12V 05: stroke 50 0: standard 06: 2006 2: February 2: CRES...

Open the catalog to page 9
RoD Actuato - 10

ROD CTUATOR CRES Sp)cifications of CRES _i Basic spcifications Item Unit CRES200 CRES500 Rated thrust N 196 ±10% 490± 10% Average speed (at rated thrust) mm/s 55 ±10% 15± 10% Screw lead mm 6 2 Rated voltage DCV 12±15% / 24±15% Rated current A 4.3 (12V) / 2.2 (24V) Service temperature environment - -10 to 60°C (20 to 80% RH or less) Storage temperature environment - -20 to 70C (20 to 80% RH or less) Maximum stroke (at point where the limit switch is activated) mm 50 / 100 / 130 Duty cycle % 10 Service life time (during operation at 10% duty and rated thrust) h 400 Mass g 700 or less * The...

Open the catalog to page 10
RoD Actuato - 11

Other For inquiries such as use of the actuator in a spcial environment, change of the motor's rated voltage and handling of the connector, contact THK. Precautions on Use Do not apply a moment load to the rod. 镕The current of the power supply must not exceed 8 A in case of 12 V or 4 A in case of 24 V. Exceeding these values will generate heat or cause fire. The stroke is controlled end to end at 0 to 50, 100 and 130. If you desire to stop the actuator between the stroke ends, externally provide a switch. ՕAt the work site, do not damage CRES by applying external force to it, cause...

Open the catalog to page 11
RoD Actuato - 12

ROD ACTUATOR CRES THK CO., LTD. HEAD OFFICE 3-11-6, NISHI-GOTANDA, SHINAGAWA-KU, TOKYO 141-8503 JAPAN INTERNATIONAL SALES DEPARTMENT PHONE:+81-3-5434-0351 FAX:+81-3-5434-0353 Global site : http://www.thk.com/ NORTH AMERICA THK America,Inc. HEADQUARTERS Phone:+1-847-310-1111 ՕCHICAGO OFFICE Phone:+1-847-310-1111 NEW YORK OFFICE Phone:+1-845-369-4035 ՕATLANTA OFFICE Phone:+1-770-840-7990 LOS ANGELES OFFICE Fax:+1-847-310-1271 ՕDSSELDORF OFFICE Phone:+49-2102-7425-0 ە FRANKFURT OFFICE Phone:+49-2102-7425-650 STUTTGART OFFICE Phone:+49-7150-9199-0 ՕMNCHEN OFFICE Phone:+49-8937-0616-0 ەU.K....
