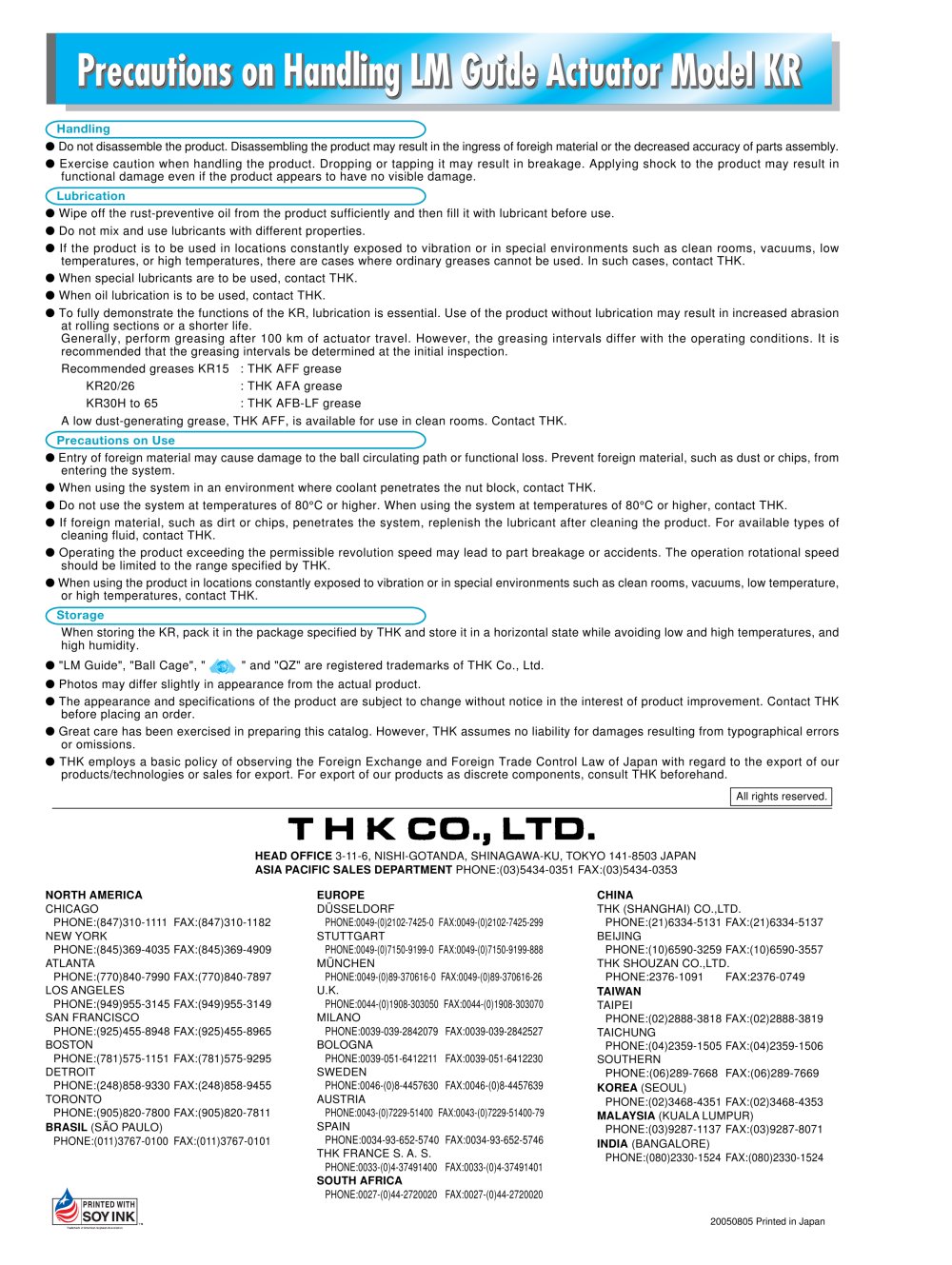

Text version of the page
| Handling | |||||||||||||||||||||||||||
| • Do not disassemble the product. Disassembling the product may result in the ingress of foreigh material or the decreased accuracy of parts assembly. • Exercise caution when handling the product. Dropping or tapping it may result in breakage. Applying shock to the product may result in functional damage even if the product appears to have no visible damage. | |||||||||||||||||||||||||||
| Lubrication | |||||||||||||||||||||||||||
| • Wipe off the rust-preventive oil from the product sufficiently and then fill it with lubricant before use. • Do not mix and use lubricants with different properties. • If the product is to be used in locations constantly exposed to vibration or in special environments such as clean rooms, vacuums, low temperatures, or high temperatures, there are cases where ordinary greases cannot be used. In such cases, contact THK. • When special lubricants are to be used, contact THK. • When oil lubrication is to be used, contact THK. • To fully demonstrate the functions of the KR, lubrication is essential. Use of the product without lubrication may result in increased abrasion at rolling sections or a shorter life. Generally, perform greasing after 100 km of actuator travel. However, the greasing intervals differ with the operating conditions. It is recommended that the greasing intervals be determined at the initial inspection. Recommended greases KR15 : THK AFF grease KR20/26 : THK AFA grease KR30H to 65 : THK AFB-LF grease A low dust-generating grease, THK AFF, is available for use in clean rooms. Contact THK. C Precautions on Use ^ | |||||||||||||||||||||||||||
| • Entry of foreign material may cause damage to the ball circulating path or functional loss. Prevent foreign material, such as dust or chips, from entering the system. • When using the system in an environment where coolant penetrates the nut block, contact THK. • Do not use the system at temperatures of 80°C or higher. When using the system at temperatures of 80°C or higher, contact THK. • If foreign material, such as dirt or chips, penetrates the system, replenish the lubricant after cleaning the product. For available types of cleaning fluid, contact THK. • Operating the product exceeding the permissible revolution speed may lead to part breakage or accidents. The operation rotational speed should be limited to the range specified by THK. • When using the product in locations constantly exposed to vibration or in special environments such as clean rooms, vacuums, low temperature, or high temperatures, contact THK. ^Storage ^ | |||||||||||||||||||||||||||
| When storing the KR, pack it in the package specified by THK and store it in a horizontal state while avoiding low and high temperatures, and high humidity. • "LM Guide", "Ball Cage", " " and "QZ" are registered trademarks of THK Co., Ltd. • Photos may differ slightly in appearance from the actual product. • The appearance and specifications of the product are subject to change without notice in the interest of product improvement. Contact THK before placing an order. • Great care has been exercised in preparing this catalog. However, THK assumes no liability for damages resulting from typographical errors or omissions. • THK employs a basic policy of observing the Foreign Exchange and Foreign Trade Control Law of Japan with regard to the export of our products/technologies or sales for export. For export of our products as discrete components, consult THK beforehand. | |||||||||||||||||||||||||||
| I All rights reserved~ | |||||||||||||||||||||||||||
