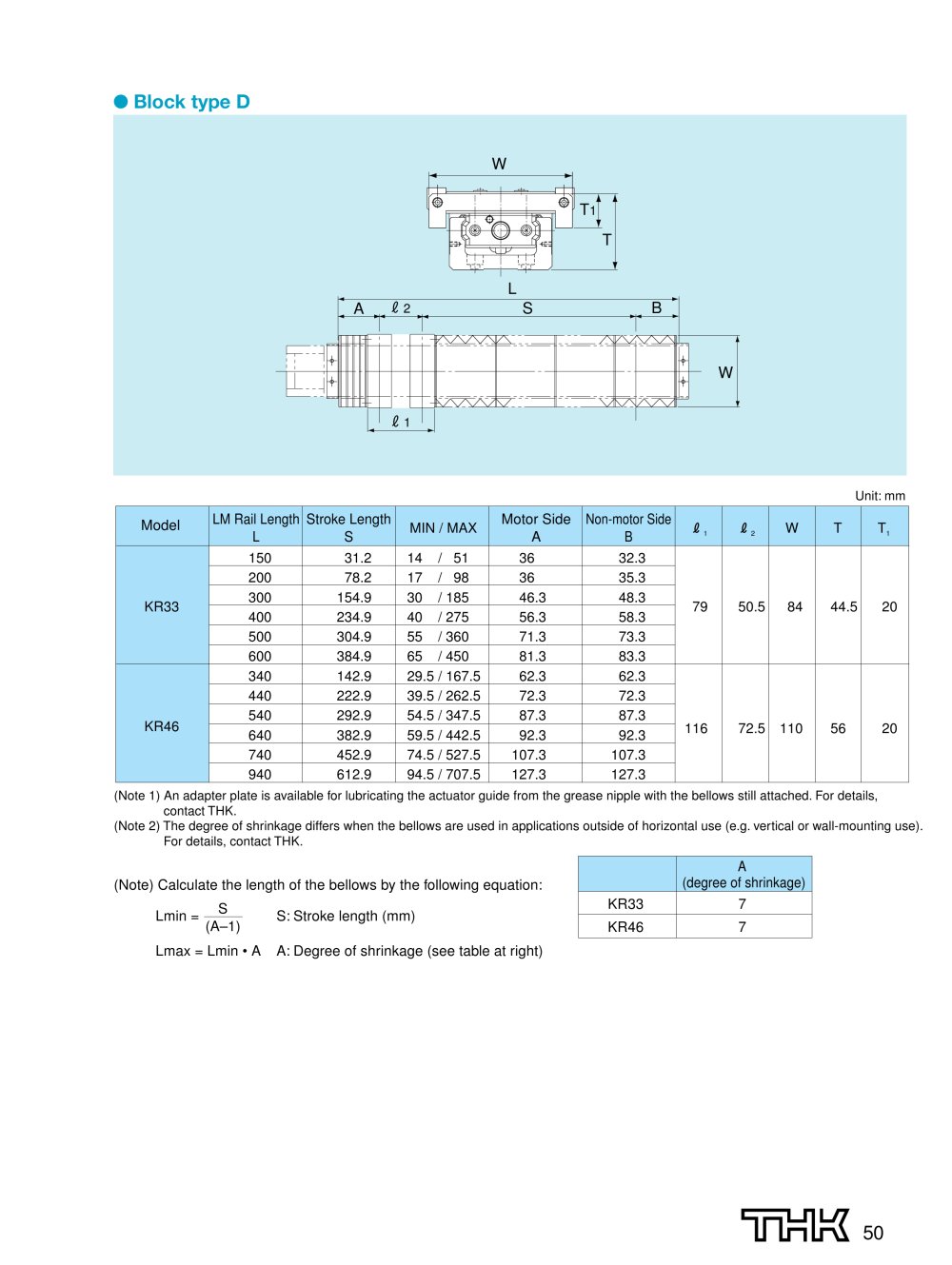

• Block type D
Unit: mm
Model
LM Rail Length L
Stroke Length S
MIN / MAX
Motor Side A
Non-motor Side B
R1
R2
W
T
T1
150
31.2
14 / 51
36
32.3
200
78.2
17 / 98
36
35.3
KR33
300
154.9
30 /185
46.3
48.3
79
50.5
84
44.5
20
400
234.9
40 /275
56.3
58.3
500
304.9
55 / 360
71.3
73.3
600
384.9
65 / 450
81.3
83.3
340
142.9
29.5 / 167.5
62.3
62.3
440
222.9
39.5 / 262.5
72.3
72.3
KR46
540
292.9
54.5 / 347.5
87.3
87.3
640
382.9
59.5 / 442.5
92.3
92.3
116
72.5
110
56
20
740
452.9
74.5 / 527.5
107.3
107.3
940
612.9
94.5 / 707.5
127.3
127.3
(Note 1) An adapter plate is available for lubricating the actuator guide from the grease nipple with the bellows still attached. For details, contact THK.
(Note 2) The degree of shrinkage differs when the bellows are used in applications outside of horizontal use (e.g. vertical or wall-mounting use). For details, contact THK.
A
(degree of shrinkage)
KR33
7
KR46
7
(Note) Calculate the length of the bellows by the following equation:
S
S: Stroke length (mm)
Lmin =
(A-1)
Lmax = Lmin • A A: Degree of shrinkage (see table at right)
50
