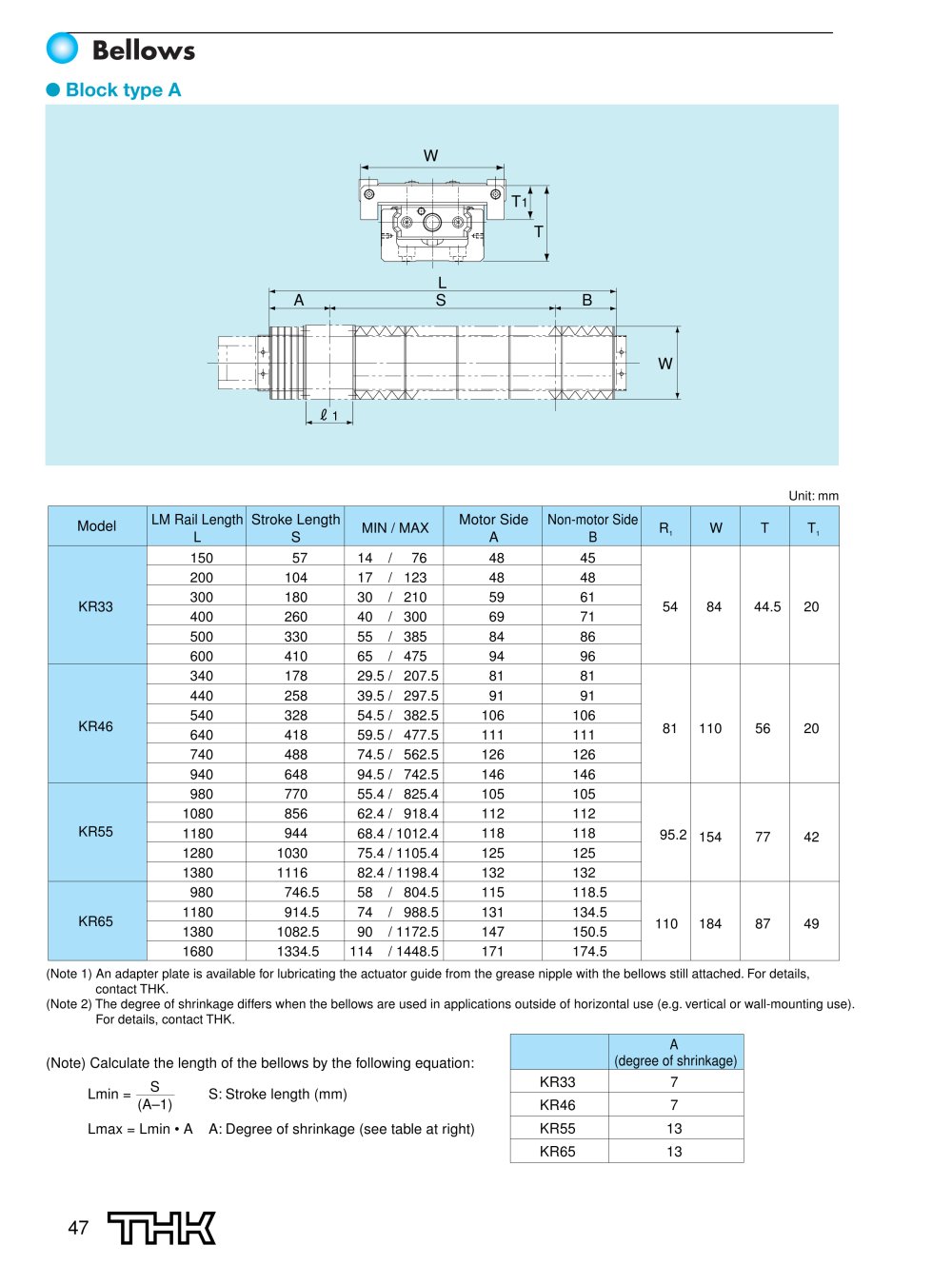

O Bellows

• Bloc

Unit: mm


Model	LM Rail Length L	Stroke Length S	MIN / MAX	Motor Side A	Non-motor Side B	R1	W	T	^T1
	150	57	14 / 76	48	45
	200	104	17 / 123	48	48
KR33	300	180	30 / 210	59	61	54	84	44.5	20
KR33	400	260	40 / 300	69	71	54	84	44.5	20
	500	330	55 / 385	84	86
	600	410	65 / 475	94	96
	340	178	29.5 / 207.5	81	81
	440	258	39.5 / 297.5	91	91
KR46	540	328	54.5 / 382.5	106	106	81	110	56	20
KR46	640	418	59.5 / 477.5	111	111	81	110	56	20
	740	488	74.5 / 562.5	126	126
	940	648	94.5 / 742.5	146	146
	980	770	55.4 / 825.4	105	105
	1080	856	62.4 / 918.4	112	112
KR55	1180	944	68.4 / 1012.4	118	118	95.2	154	77	42
	1280	1030	75.4 / 1105.4	125	125
	1380	1116	82.4 / 1198.4	132	132
	980	746.5	58 / 804.5	115	118.5
KR65	1180	914.5	74 / 988.5	131	134.5	110	184	87	49
KR65	1380	1082.5	90 / 1172.5	147	150.5	110	184	87	49
	1680	1334.5	114 / 1448.5	171	174.5

(Note 1) An adapter plate is available for lubricating the actuator guide from the grease nipple with the bellows still attached. For details, contact THK.

(Note 2) The degree of shrinkage differs when the bellows are used in applications outside of horizontal use (e.g. vertical or wall-mounting use). For details, contact THK.


		A (degree of shrinkage)
	KR33	7
	KR46	7
	KR55	13
	KR65	13

(Note) Calculate the length of the bellows by the following equation:

S: Stroke length (mm)

Lmin =

(A-1)

Lmax = Lmin • A A: Degree of shrinkage (see table at right)
