C

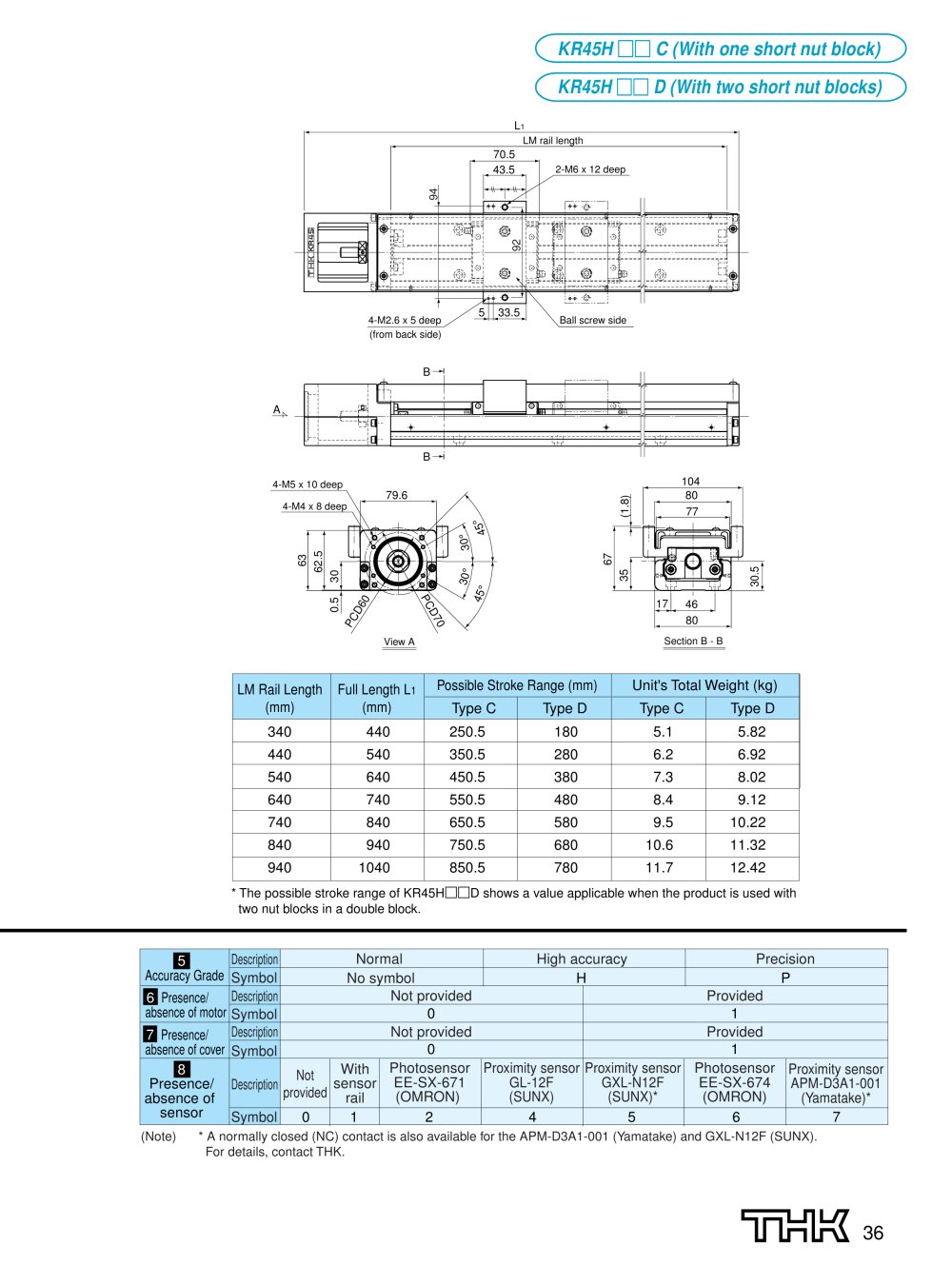

KR45H □□ C (With one short nut block
f^
)
C
KR45H □□ D (With two short nut blocks
f^
)
L
i
4-M2.6 x 5 deep (from back side)
A
104
4-M5 x 10 deep
80
8
77
m
CO
Ö CO
17^
46
80
Section B - B
View A
LM Rail Length (mm)
Full Length Li (mm)
Possible Stroke Range (mm)
Unit's Total Weight (kg)
Type C
Type D
Type C
Type D
340
440
250.5
180
5.1
5.82
440
540
350.5
280
6.2
6.92
540
640
450.5
380
7.3
8.02
640
740
550.5
480
8.4
9.12
740
840
650.5
580
9.5
10.22
840
940
750.5
680
10.6
11.32
940
1040
850.5
780
11.7
12.42
The possible stroke range of KR45H
CD
D shows a value applicable when the product is used with two nut blocks in a double block.
Accur
5
Grade
Description
Normal
High accuracy
Precision
acy
Symbol
No symbol
H
P
1
Presence/ sence of motor
Description
Not provided
Provided
ab
Symbol
0
1
7
Presence/ sence of cover
Description
Not provided
Provided
ab
Symbol
0
1
8|
Presence/ absence of sensor
Description
Not provided
With sensor rail
Photosensor EE-SX-671 (OMRON)
Proximity sensor
GL-12F (SUNX)
Proximity sensor GXL-N12F (SUNX)*
Photosensor
EE-SX-674
(OMRON)
Proximity sensor APM-D3A1-001 (Yamatake)*
Symbol
0
1
2
4
5
6
7
(Note) * A normally closed (NC) contact is also available for the APM-D3A1-001 (Yamatake) and GXL-N12F (SUNX). For details, contact THK.
36
