C

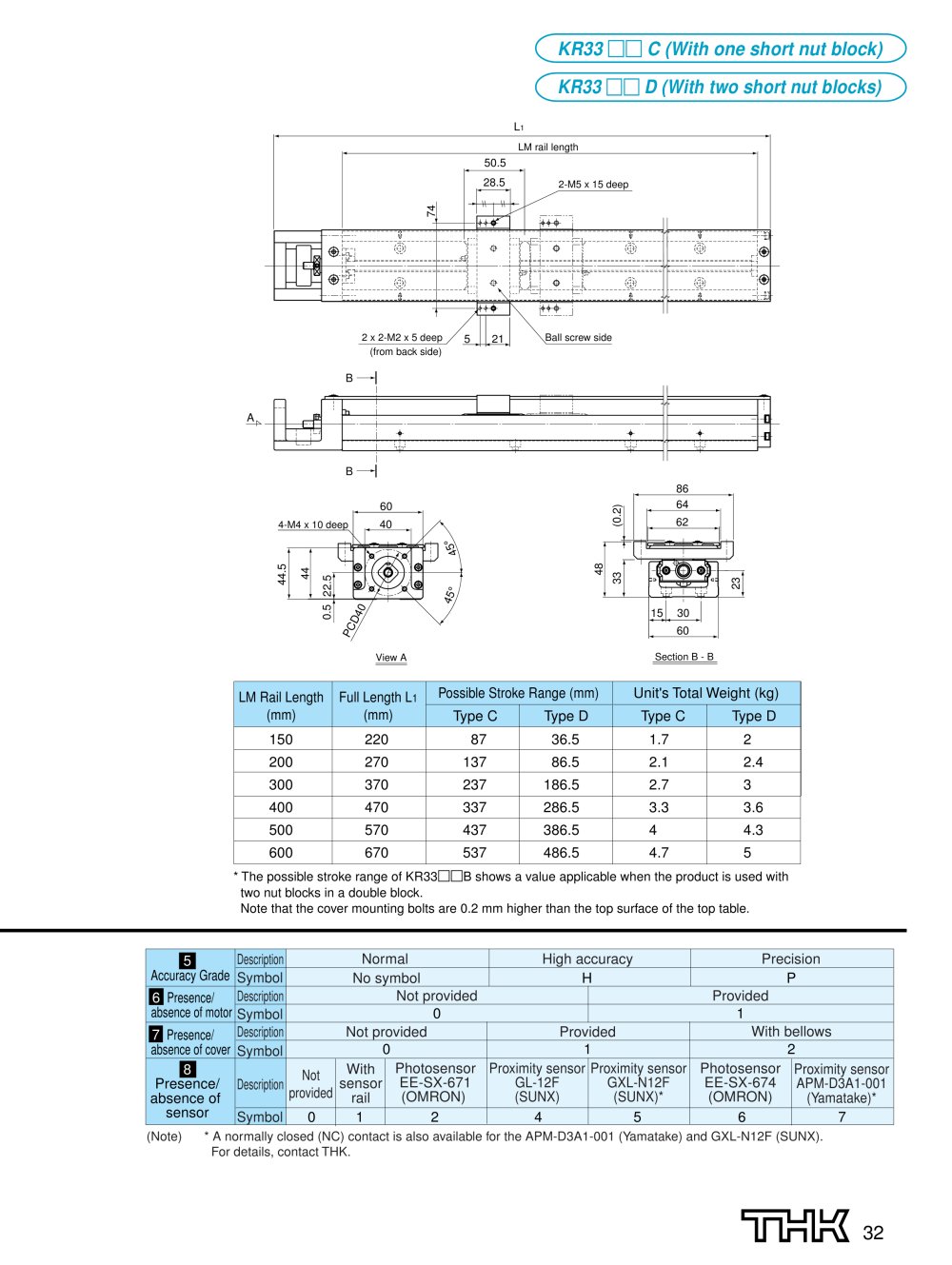

KR33 □□ C (With one short nut blockj^
)
C
KR33 □□ D (With two short nut blocks)^
)
L
1
2 x 2-M2 x 5 deep
/
5
(from back side)
B
A
86
60
co
t
Section B - B
View A
LM Rail Length (mm)
Full Length L
1
(mm)
Possible Stroke Range (mm)
Unit's Total Weight (kg)
Type C
Type D
Type C
Type D
150
220
87
36.5
1.7
2
200
270
137
86.5
2.1
2.4
300
370
237
186.5
2.7
3
400
470
337
286.5
3.3
3.6
500
570
437
386.5
4
4.3
600
670
537
486.5
4.7
5
* The possible stroke range of KR33^^B shows a value applicable when the product is used with two nut blocks in a double block.
Note that the cover mounting bolts are 0.2 mm higher than the top surface of the top table.
Accur
5
Grade
Description
Normal
High accuracy
Precision
acy
Symbol
No symbol
H
P
1
Presence/ sence of motor
Description
Not provided
Provided
ab
Symbol
0
1
7
Presence/ sence of cover
Description
Not provided
Provided
With bellows
ab
Symbol
0
1
2
8|
Presence/ absence of sensor
Description
Not provided
With sensor rail
Photosensor EE-SX-671 (OMRON)
Proximity sensor
GL-12F (SUNX)
Proximity sensor GXL-N12F (SUNX)*
Photosensor EE-SX-674 (OMRON)
Proximity sensor APM-D3A1-001 (Yamatake)*
Symbol
0
1
2
4
5
6
7
(Note) * A normally closed (NC) contact is also available for the APM-D3A1-001 (Yamatake) and GXL-N12F (SUNX). For details, contact THK.
