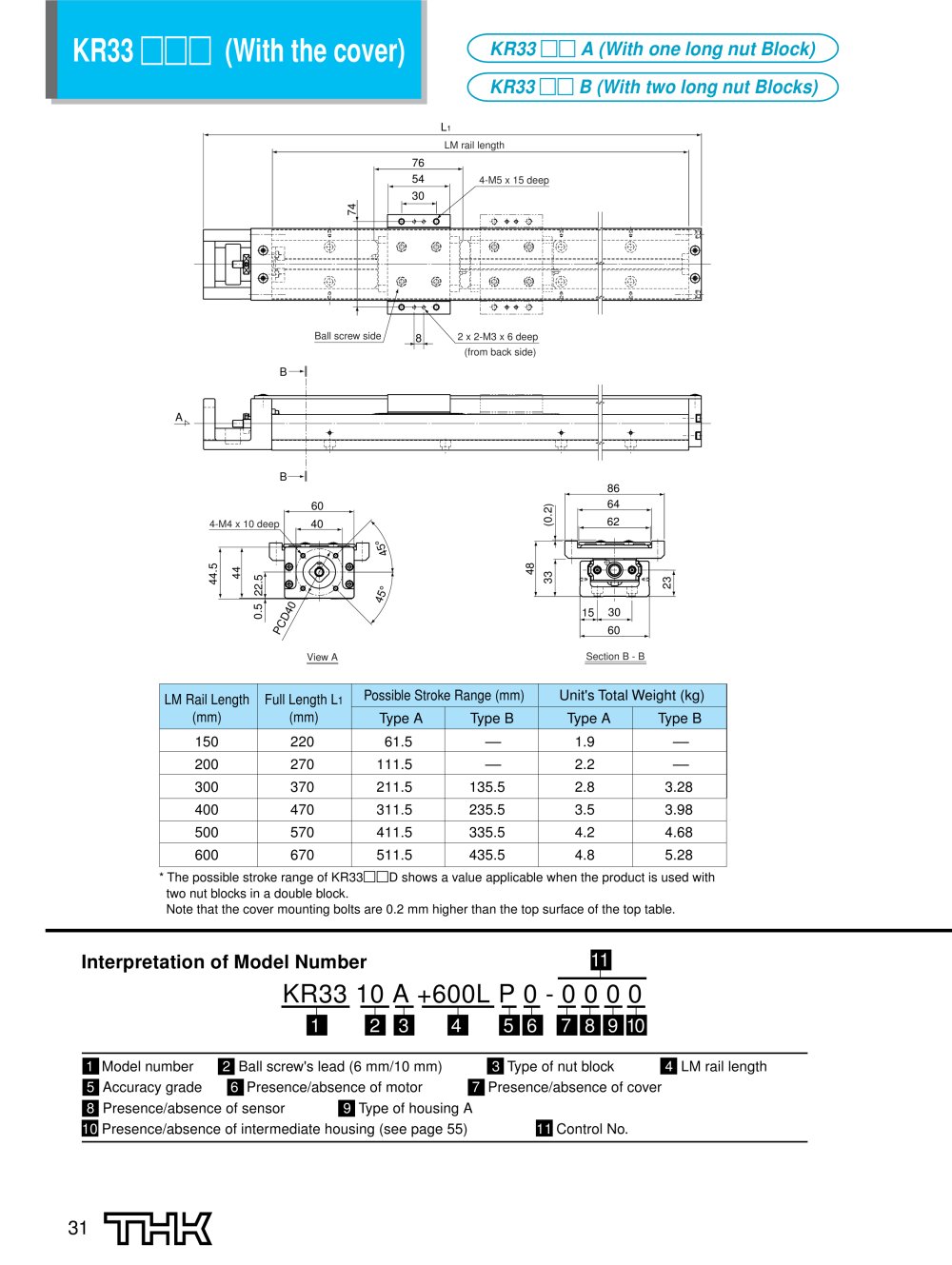

C KR33 □□ A (With one long nut Blockf^) C KR33 □□ B (With two long nut Blocks)^)

¡33 □□□ (With the cover)

Li

LM rail length

76

54

4-M5 x 15 deep

30

¡4

0 ~~* *~~ O"

tfri.

?S)\

@

j__(f______®_i

J.

~~o ♦T~~o f

Ball screw side

2 x 2-M3 x 6 deep (from back side)

8

B

A

86

60

4-M4 x 10 deep



	¿5.	_ 30 _t 60

^ -4

co

co co

co cm

Section B - B

View A


	LM Rail Length (mm)	Full Length Li (mm)	Possible Stroke Range (mm)		Unit's Total Weight (kg)
	LM Rail Length (mm)	Full Length Li (mm)	Type A	Type B	Type A	Type B
	150	220	61.5	—	1.9	—
	200	270	111.5	—	2.2	—
	300	370	211.5	135.5	2.8	3.28
	400	470	311.5	235.5	3.5	3.98
	500	570	411.5	335.5	4.2	4.68
	600	670	511.5	435.5	4.8	5.28

* The possible stroke range of KR33^^D shows a value applicable when the product is used with two nut blocks in a double block.

Note that the cover mounting bolts are 0.2 mm higher than the top surface of the top table.

11

Interpretation of Model Number

KR33 10 A +6QQL P 0 - 0 0 0 0

ll Model number |2| Ball screw's lead (6 mm/10 mm) |3| Type of nut block^^HjJ LM rail length J5| Accuracy grade k6| Presence/absence of motor I7| Presence/absence of cover J3| Presence/absence of sensor Type of housing A

10 Presence/absence of intermediate housing (see page 55)^^^^^ll1 Control No.
