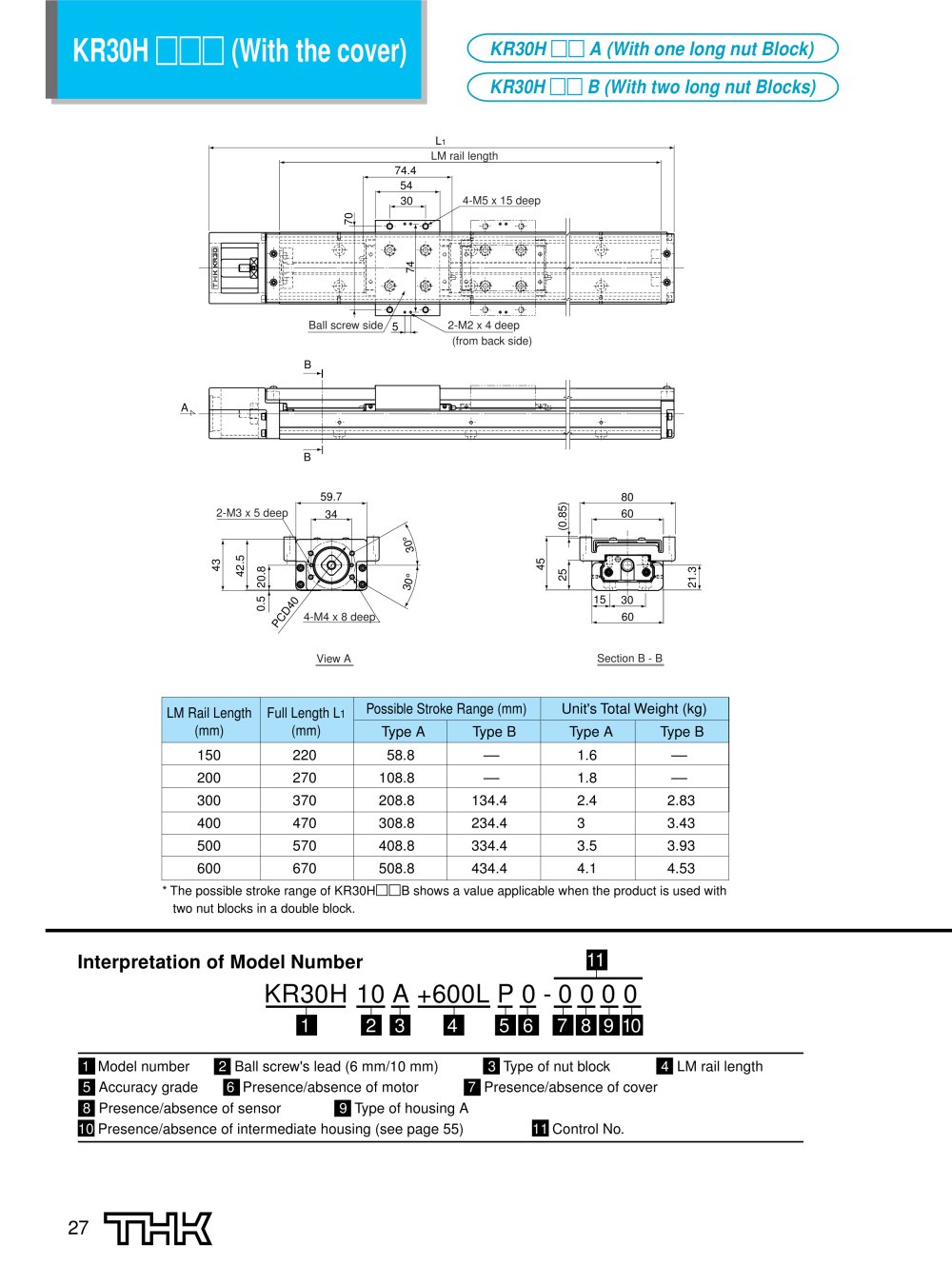

C KR30H □□ A (With one long nut Blockf^) c KR30H □□ B (With two long nut Blocks)^)

!30H □□□ (With the cover)

Li

Ball screw side/5 2-M2 x 4 deep

(from back side)

59.7 80

View A Section B - B


	LM Rail Length (mm)	Full Length Li (mm)	Possible Stroke Range (mm)		Unit's Total Weight (kg)
	LM Rail Length (mm)	Full Length Li (mm)	Type A	Type B	Type A	Type B
	150	220	58.8	—	1.6	—
	200	270	108.8	—	1.8	—
	300	370	208.8	134.4	2.4	2.83
	400	470	308.8	234.4	3	3.43
	500	570	408.8	334.4	3.5	3.93
	600	670	508.8	434.4	4.1	4.53

The possible stroke range of KR30hO^B shows a value applicable when the product is used with two nut blocks in a double block.

Interpretation of Model Number^^^^^^^^^^^^^^^l^H

KR30H 10 A +600L P 0 - 0 0 0 0

0 Wj3 ¡4 Sii @i8iÌ9s

1| Model number |2| Ball screw's lead (6 mm/10 mm) |3| Type of nut block^^Hjl LM rail length J5| Accuracy grade k6| Presence/absence of motor pi Presence/absence of cover J3| Presence/absence of sensor 19 Type of housing A

10 Presence/absence of intermediate housing (see page 55) Rj Control No.
