Catalogue Caged Ball LM Guide Actuator Model SKR

print

switch display

Page

/ 24

Contact the
Manufacturer

Where to buy
this product ?

THK -

/ 24

See other catalogues for THK

Text version of the page

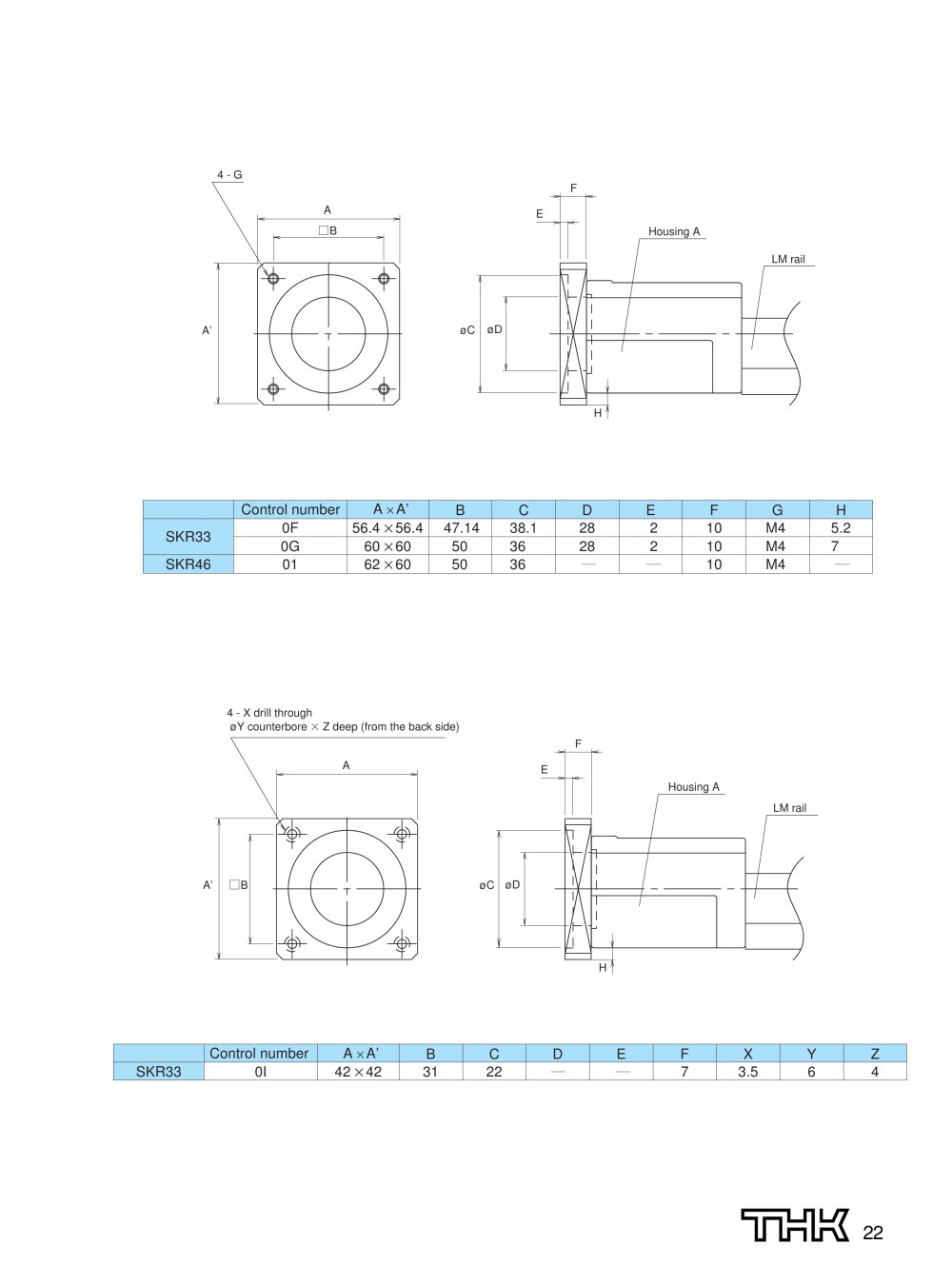

		Control number	A x A'	B	C	D	E	F	G	H
	SKR33	OF	56.4 x 56.4	47.14	38.1	28	2	10	M4	5.2
	SKR33	0G	60 x 60	50	36	28	2	10	M4	7
	SKR46	01	62 x 60	50	36	—	—	10	M4	—

4 - X drill through

0Y counterbore X Z deep (from the back side)

Control number

A x A'

B

C

D

E

F

X

Y

Z

SKR33

0I

42 x 42

31

22

—

—

7

3.5

6

4

^CinM1^22
