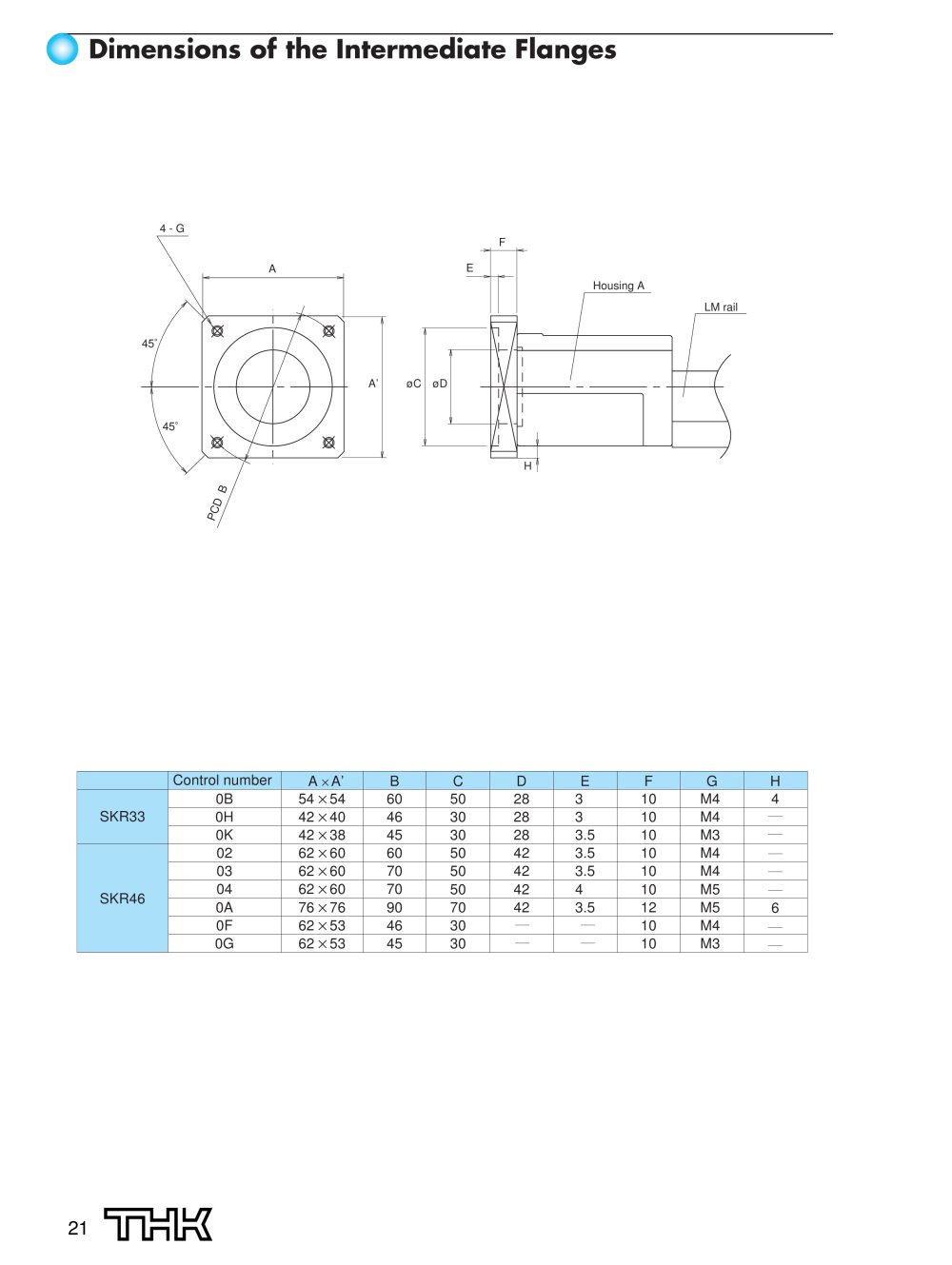

O Dimensions of the Intermediate Flange

4 - G


		Control number	A x A'	B	C	D	E	F	G	H
	SKR33	0B	54 x 54	60	50	28	3	10	M4	4
		0H	42 x 40	46	30	28	3	10	M4	—
		0K	42 x 38	45	30	28	3.5	10	M3	—
	SKR46	02	62 x 60	60	50	42	3.5	10	M4	—
		03	62 x 60	70	50	42	3.5	10	M4	—
		04	62 x 60	70	50	42	4	10	M5	—
		0A	76 x 76	90	70	42	3.5	12	M5	6
		0F	62 x 53	46	30	—	—	10	M4	—
		0G	62 x 53	45	30	—	—	10	M3	—
