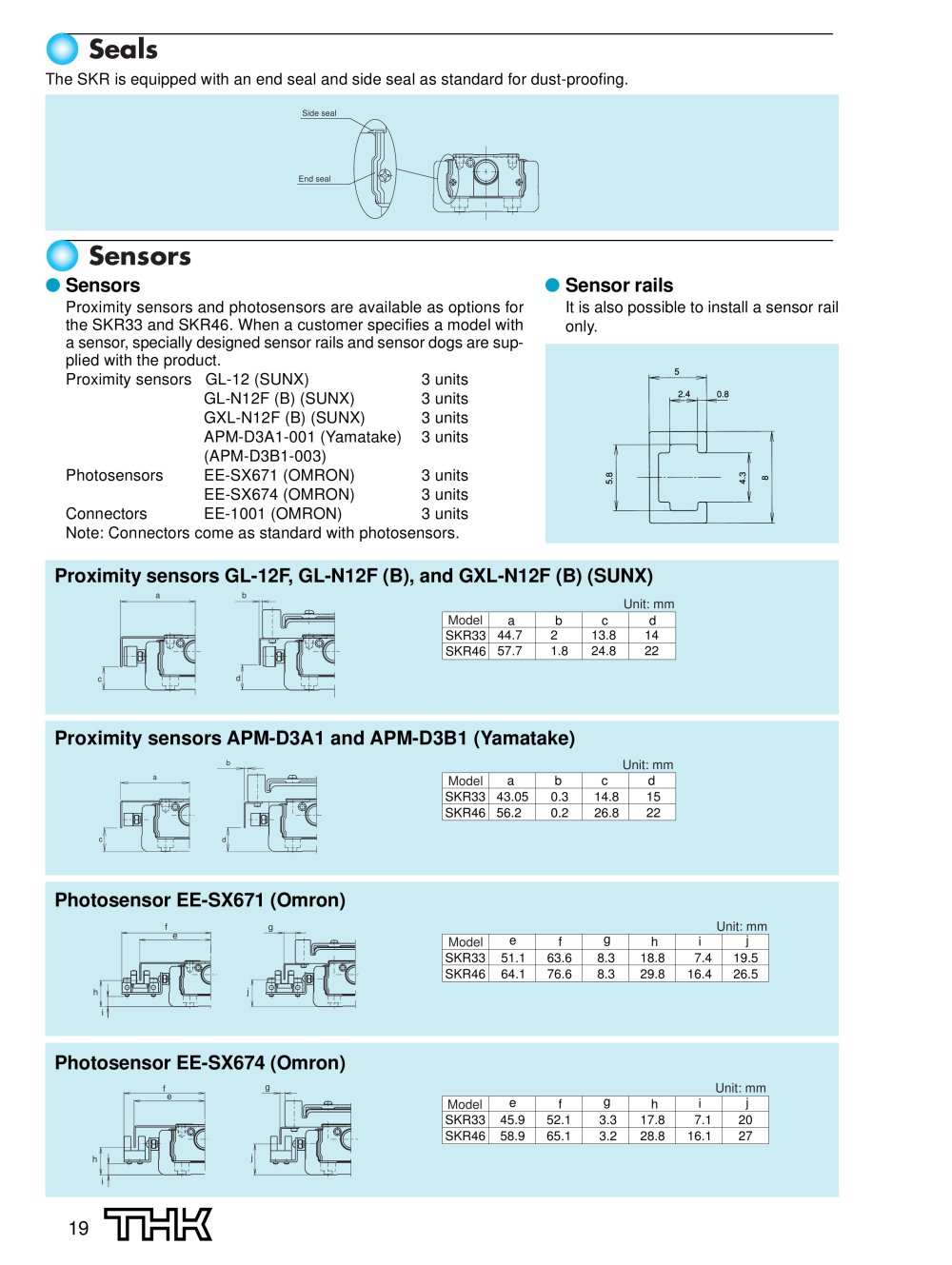

O Seals
The SKR is equipped with an end industrial seal and side seal as standard for dust-proofing.
Sensors
• Sensors
Proximity sensors and photosensors are available as options for the SKR33 and SKR46. When a customer specifies a model with
Sensor rails
It is also possible to install a sensor rail only.
a sensor, specially designed sensor rails and sensor dogs are sup­plied with the product.
Proximity sensors GL-12 (SUNX) 3 units
GL-N12F (B) (SUNX) 3 units
GXL-N12F (B) (SUNX) 3 units
APM-D3A1-001 (Yamatake) 3 units
(APM-D3B1-003) Photosensors EE-SX671 (OMRON) 3 units
EE-SX674 (OMRON) 3 units
Connectors EE-1001 (OMRON) 3 units
Note: Connectors come as standard with photosensors.
Proximity sensors GL-12F, GL-N12F (B), and GXL-N12F (B) (SUNX)
a b
Unit: mm
Model
a
b
c
d
SKR33
44.7
2
13.8
14
SKR46
57.7
1.8
24.8
22
mm
d
c
h±sL
Proximity sensors APM-D3A1 and APM-D3B1 (Yamatake)
Unit: mm
Model
a
b
c
d
SKR33
43.05
0.3
14.8
15
SKR46
56.2
0.2
26.8
22
a
EB
c
Photosensor EE-SX671 (Omron)
f g
e ^ "
Unit: mm
Model
e
f
g
h
i
j
SKR33
51.1
63.6
8.3
18.8
7.4
19.5
SKR46
64.1
76.6
8.3
29.8
16.4
26.5
h
Photosensor EE-SX674 (Omron)
Unit: mm
Model
e
f
g
h
i
j
SKR33
45.9
52.1
3.3
17.8
7.1
20
SKR46
58.9
65.1
3.2
28.8
16.1
27
I r^f^lP I ^ r
h
19 TflnlK
