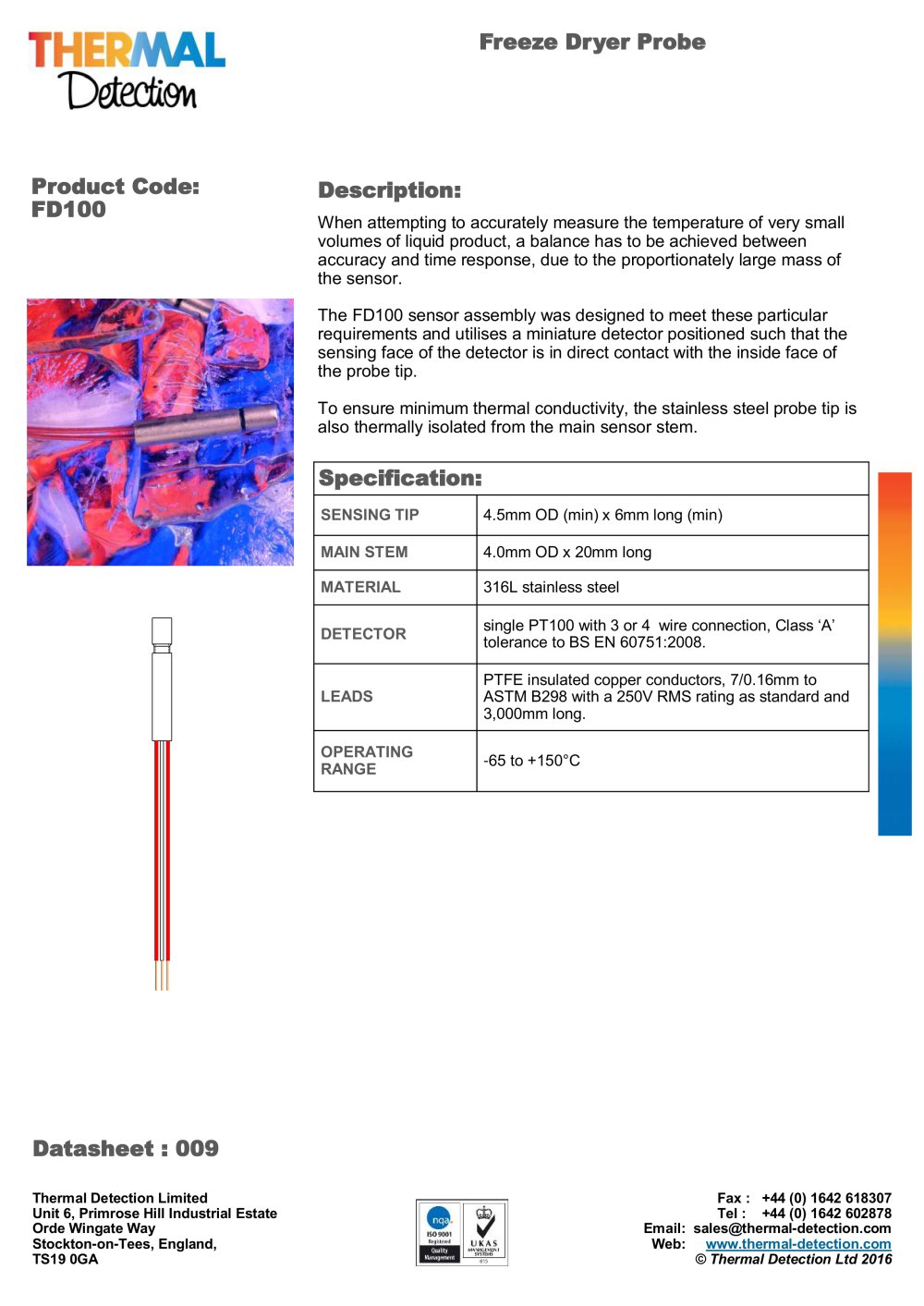

DATA SHEET No. 020

FD100 Freeze dryer probe - 28405 PRODUCT DESCRIPTION

Freeze Dryer Probe W hen attempting to accurately measure the temperature of very smal l

Freeze DryerProbe

v olumes of liquid product, a balance has to be achieved betweenaccuracy and time response, due to the proportionately large mass o f the sensor. T he FD100 sensor assembly was designed to meet these particula r requirements and utilises a miniature detector positioned such that the sensing face of the detector is in direct contact with the inside face o f the probe tip. T o ensure minimum thermal conductivity, the stainless steel probe tipis also thermally isolated from the main sensor stem.
S P E C I F I C A T I O N MECHANICAL Sensing tip: 4.5mm OD (min) x 6mm long (min) in 316 stainless steel.Main stem: 4.5mm OD x 20mm long in 316 stainless steel. ELECTRICAL Resistance Thermometer Product code : FD100
Detector: single PT100 with 3 or 4 wire connection, Class ‘A’ tolerance to BS EN 60751:1996.Flying lead: PTFE insulated copper conductors, 7/0.16mm to ASTM-B -298 with a 250V RMS rating and 3,000mm long.Operating range: -65 to +150°C For an effective and leak free chamber entry, sealing glands utilising soft sealan t technology are recommended. For further information please contact our SalesDepartment. 2000 Thermal Detection Ltd .
