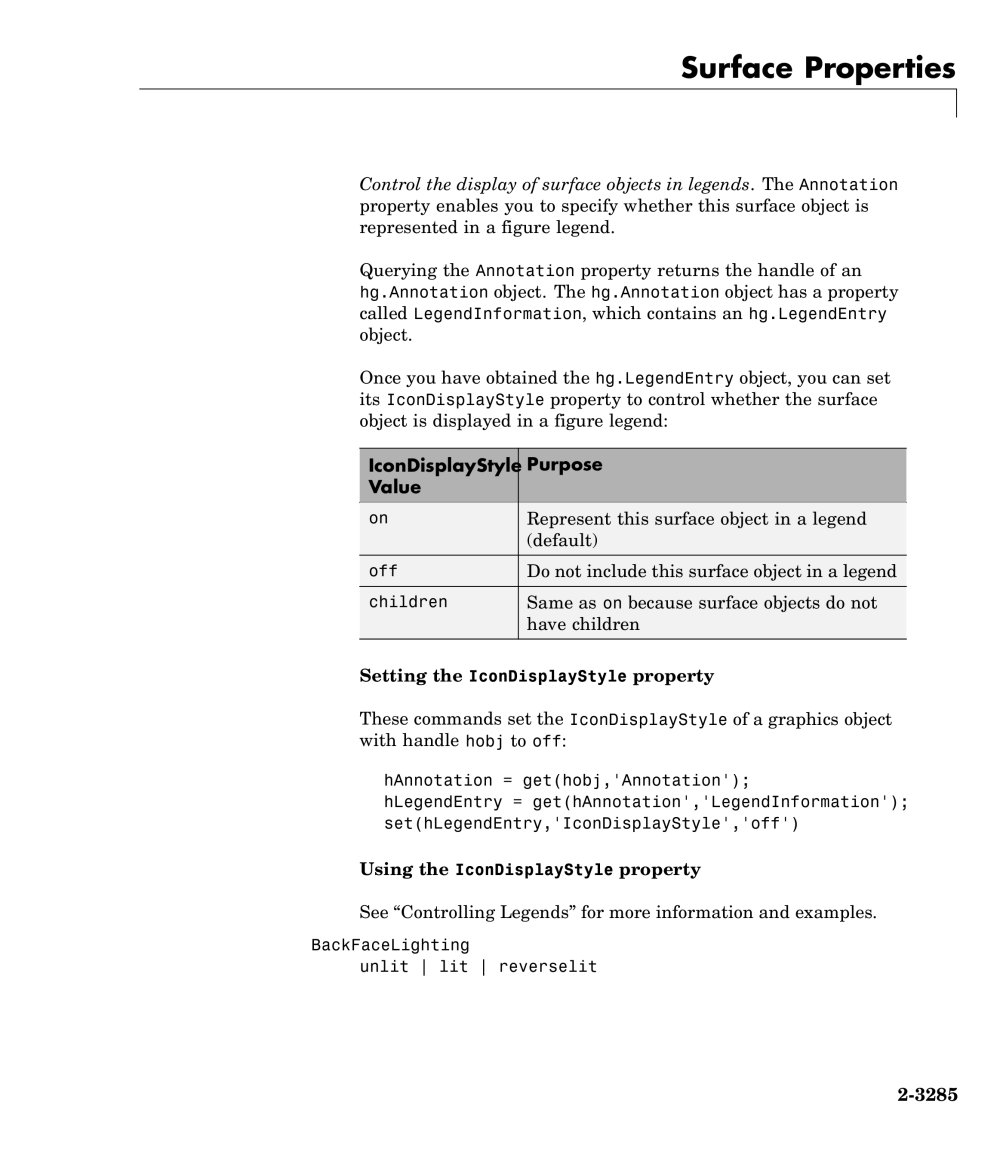

| Surface Properties | ||||||||||||||||||||||||||||||||||||
| Control the display of surface objects in legends.The Annotation property enables you to specify whether this surface object is represented in a figure legend. Querying the Annotation property returns the handle of an hg.Annotation object. The hg.Annotation object has a property called LegendInformation, which contains an hg. LegendEntry object. | ||||||||||||||||||||||||||||||||||||
| Once you have obtained the hg.LegendEntry object, you can set its IconDisplayStyle property to control whether the surface object is displayed in a figure legend: | ||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
| Setting the IconDisplayStyle property These commands set the IconDisplayStyle of a graphics object with handle hobj to off: hAnnotation = get(hobj,'Annotation'); hLegendEntry = get(hAnnotation','LegendInformation'); set(hLegendEntry,'IconDisplayStyle','off') Using the IconDisplayStyle property See "Controlling Legends" for more information and examples. BackFaceLighting unlit | lit | reverselit | ||||||||||||||||||||||||||||||||||||
| 2-3285 | ||||||||||||||||||||||||||||||||||||
