| Differencing Data | ||||||||||||||||||||||||||||||||||||||

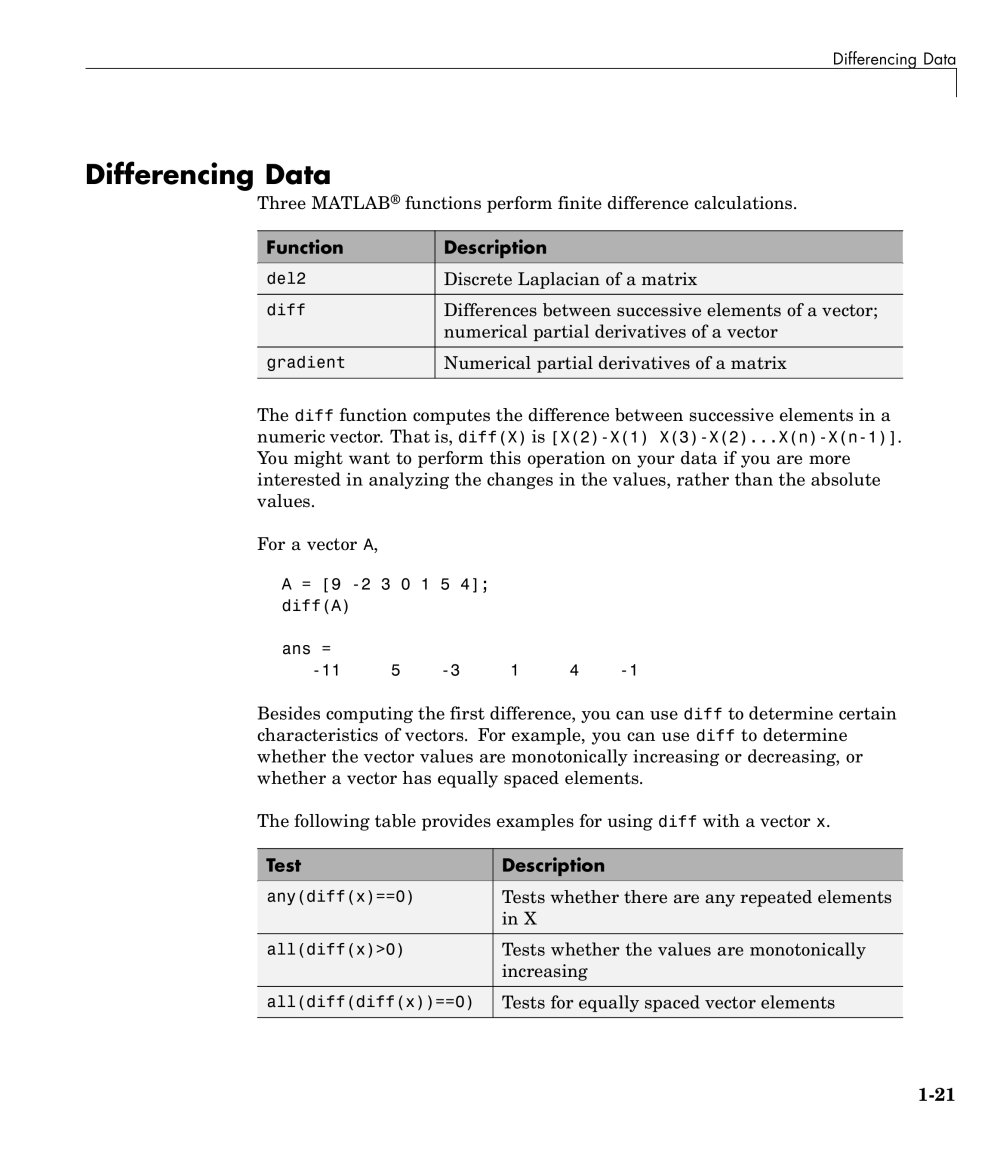

| Differencing Data Three MATLAB® functions perform finite difference calculations. | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| The diff function computes the difference between successive elements in a numeric vector. That is, diff(X) is [X(2)-X(1) X(3)-X(2). ..X(n)-X(n-1)j. You might want to perform this operation on your data ifyou are more interested in analyzing the changes in the values, rather than the absolute values. For a vector A, A = [9 -2 3 0 1 5 4]; diff(A) ans = -11 5-3 1 4-1 Besides computing the first difference, you can use diff to determine certain characteristics of vectors. For example, you can use diff to determine whether the vector values are monotonically increasing or decreasing, or whether a vector has equally spaced elements. | ||||||||||||||||||||||||||||||||||||||
| The following table provides examples for using diff with a vector x. | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| 1-21 | ||||||||||||||||||||||||||||||||||||||
