| Time Series Tools | |||||||||||||||||||||||||||||||||||||||||||||||

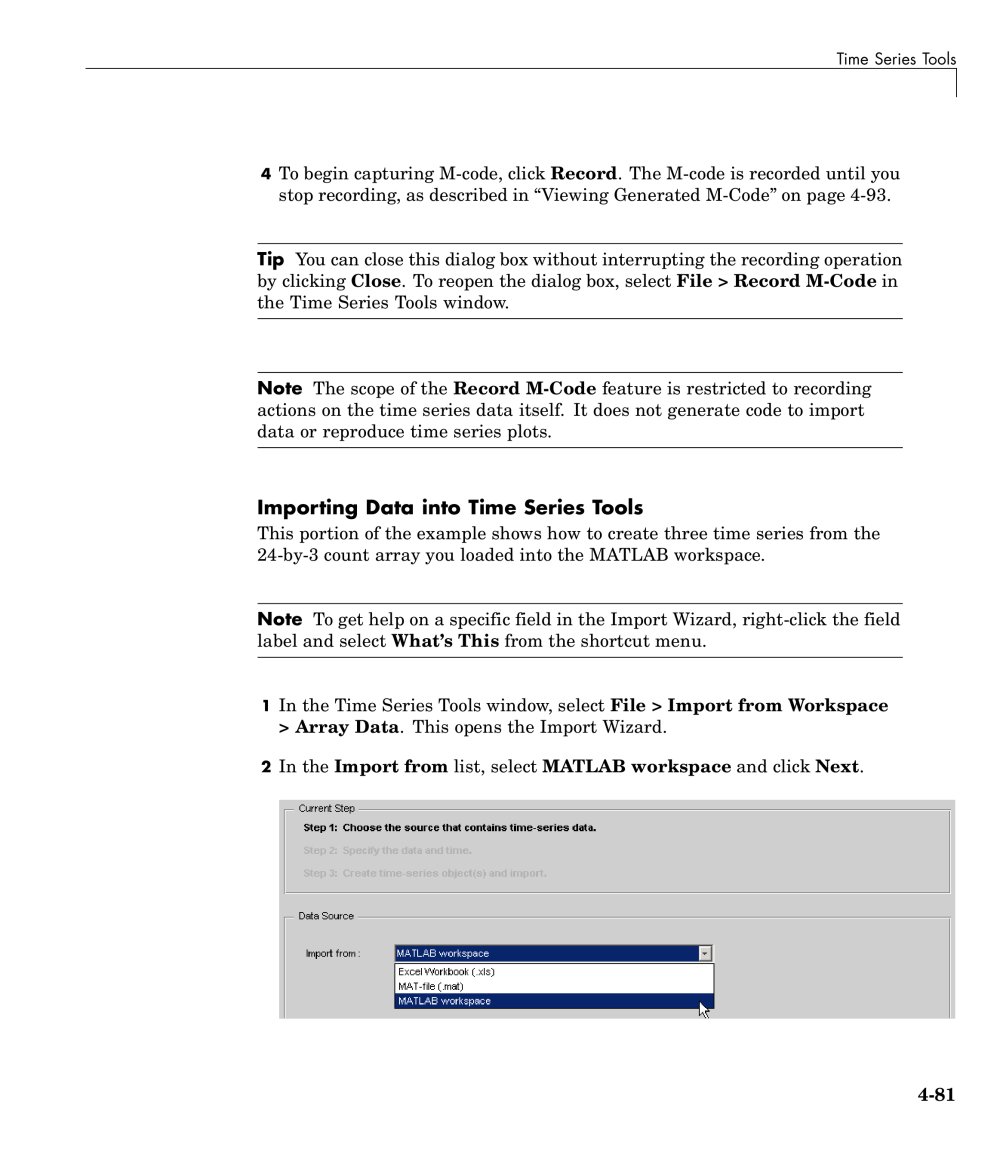

| 4 To begin capturing M-code, click Record. The M-code is recorded until you stop recording, as described in "Viewing Generated M-Code" on page 4-93. | |||||||||||||||||||||||||||||||||||||||||||||||
| Tip You can close this dialog box without interrupting the recording operation by clicking Close. To reopen the dialog box, select File > Record M-Code in the Time Series Tools window. | |||||||||||||||||||||||||||||||||||||||||||||||
| Note The scope of the Record M-Code feature is restricted to recording actions on the time series data itself. It does not generate code to import data or reproduce time series plots. | |||||||||||||||||||||||||||||||||||||||||||||||
| Importing Data into Time Series Tools This portion of the example shows how to create three time series from the 24-by-3 count array you loaded into the MATLAB workspace. | |||||||||||||||||||||||||||||||||||||||||||||||
| Note To get help on a specific field in the Import Wizard, right-click the field label and select What's This from the shortcut menu. | |||||||||||||||||||||||||||||||||||||||||||||||
| 1 In the Time Series Tools window, select File > Import from Workspace >Array Data. This opens the Import Wizard. 2 In the Import from list, select MATLAB workspace and click Next. i— Current Step Step 1: Choose the source that contains time-series data. r— Data Source — | |||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||
| Import from : | |||||||||||||||||||||||||||||||||||||||||||||||
| 4-81 | |||||||||||||||||||||||||||||||||||||||||||||||
