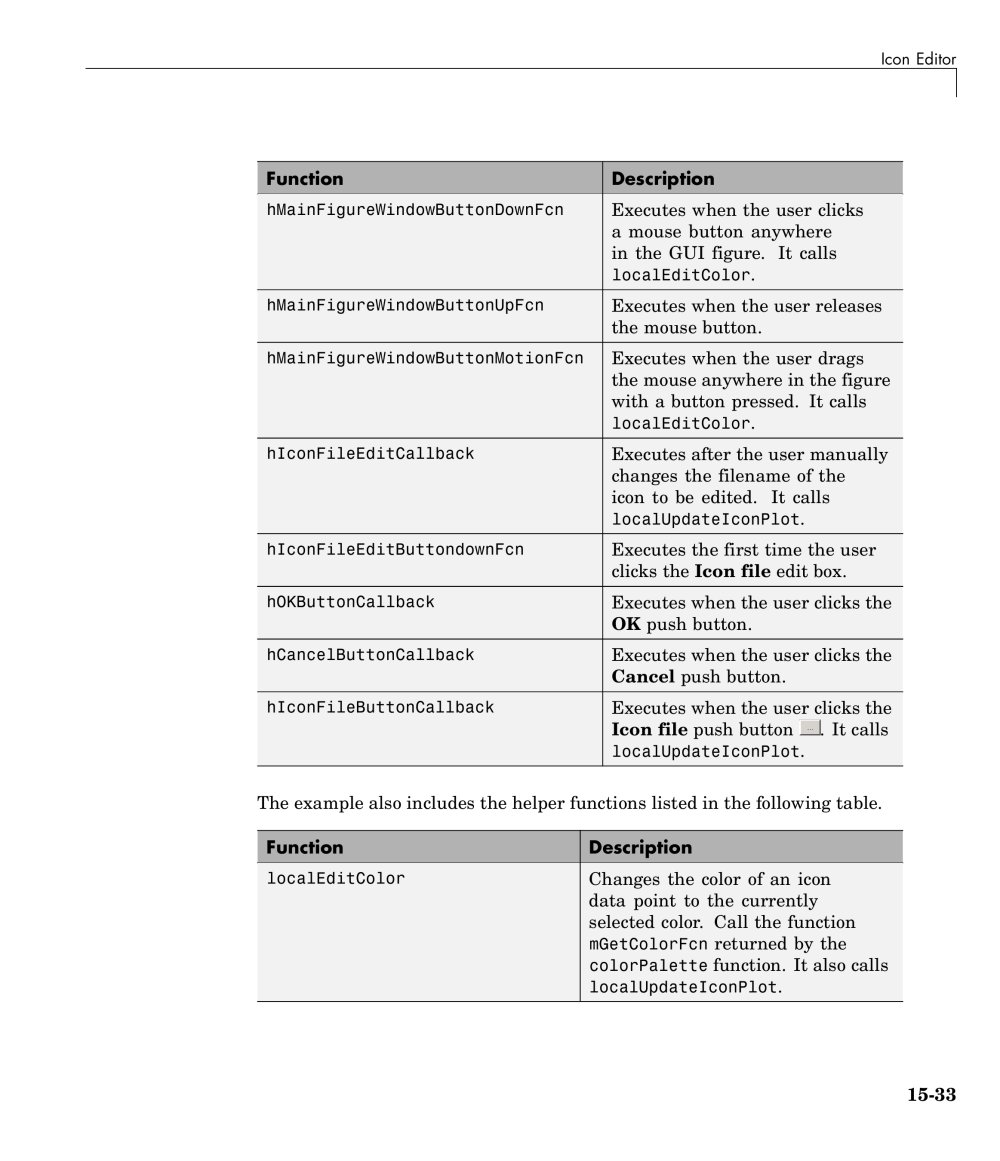

Icon Editor


	Function	Description
	IhMainFigureWindowButtonDownFcn	Executes when the user clicks a mouse button anywhere in the GUI figure. It calls localEditColor.
	IhMainFigureWindowButtonUpFcn	Executes when the user releases the mouse button.
	hMainFigureWindowButtonMotionFcn	Executes when the user drags the mouse anywhere in the figure with a button pressed. It calls localEditColor.
	hIconFileEditCallback	Executes after the user manually changes the filename of the icon to be edited. It calls localUpdatelconPlot.
	hIconFileEditButtondownFcn	Executes the first time the user clicks the Icon file edit box.
	hOKButtonCallback	Executes when the user clicks the OK push button.
	ICancelButtonCallback	Executes when the user clicks the Cancel push button.
	hIconFileButtonCallback	Executes when the user clicks the Icon file push button_.It calls localUpdatelconPlot.

The example also includes the helper functions listed in the following table.


	Function	Description
	localEditColor	Changes the color of an icon data point to the currently selected color. Call the function mGetColorFcn returned by the colorPalette function. It also calls localUpdatelconPlot.

15-33
