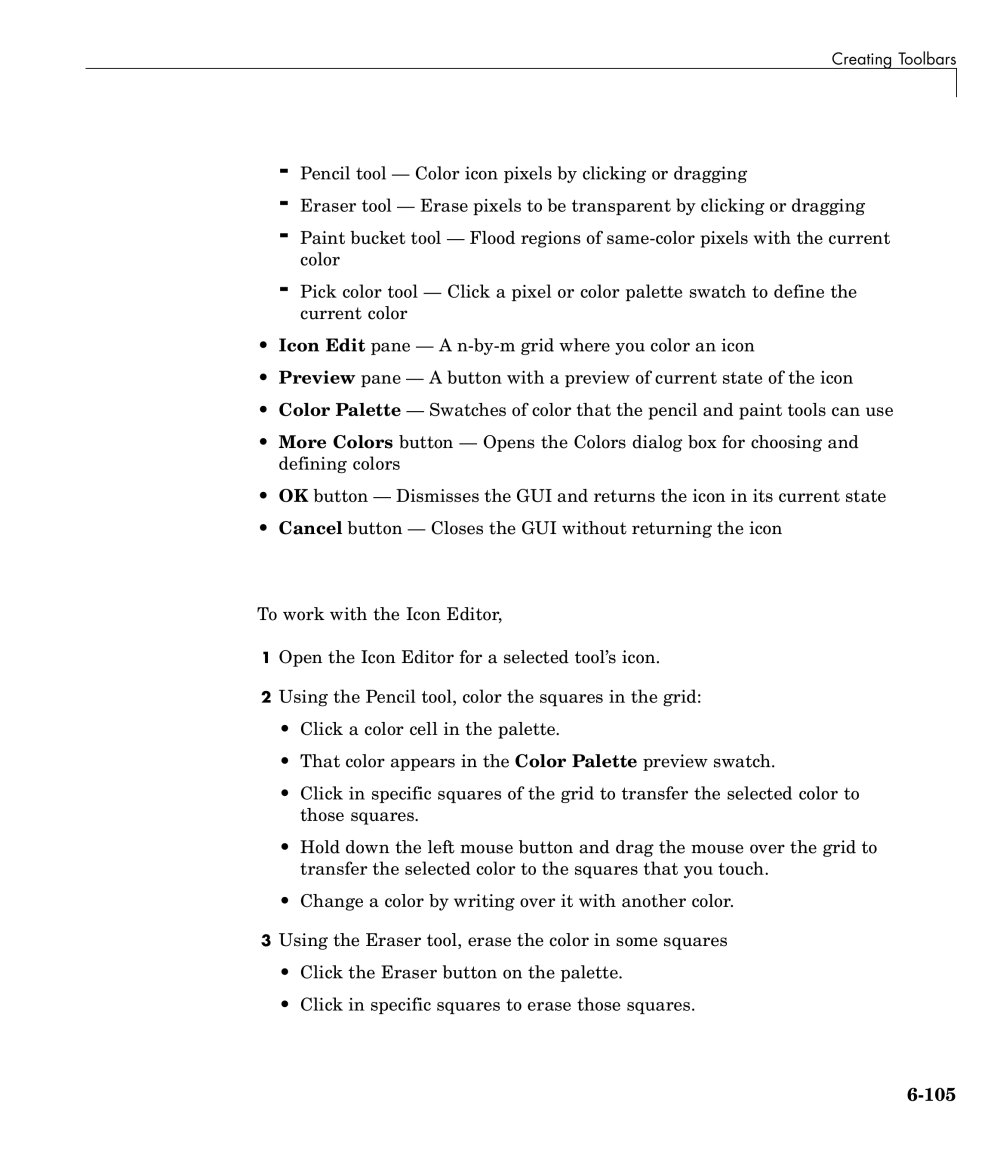

| Creating Toolbars | ||||||||
| - Pencil tool — Color icon pixels by clicking or dragging - Eraser tool — Erase pixels to be transparent by clicking or dragging - Paint bucket tool — Flood regions of same-color pixels with the current color - Pick color tool — Click a pixel or color palette swatch to define the current color • Icon Edit pane — A n-by-m grid where you color an icon • Preview pane — A button with a preview of current state of the icon • Color Palette — Swatches of color that the pencil and paint tools can use • More Colors button — Opens the Colors dialog box for choosing and defining colors • OK button — Dismisses the GUI and returns the icon in its current state • Cancel button — Closes the GUI without returning the icon To work with the Icon Editor, 1 Open the Icon Editor for a selected tool's icon. 2 Using the Pencil tool, color the squares in the grid: • Click a color cell in the palette. • That color appears in the Color Palette preview swatch. • Click in specific squares of the grid to transfer the selected color to those squares. • Hold down the left mouse button and drag the mouse over the grid to transfer the selected color to the squares that you touch. • Change a color by writing over it with another color. 3 Using the Eraser tool, erase the color in some squares • Click the Eraser button on the palette. • Click in specific squares to erase those squares. | ||||||||
| 6-105 | ||||||||
