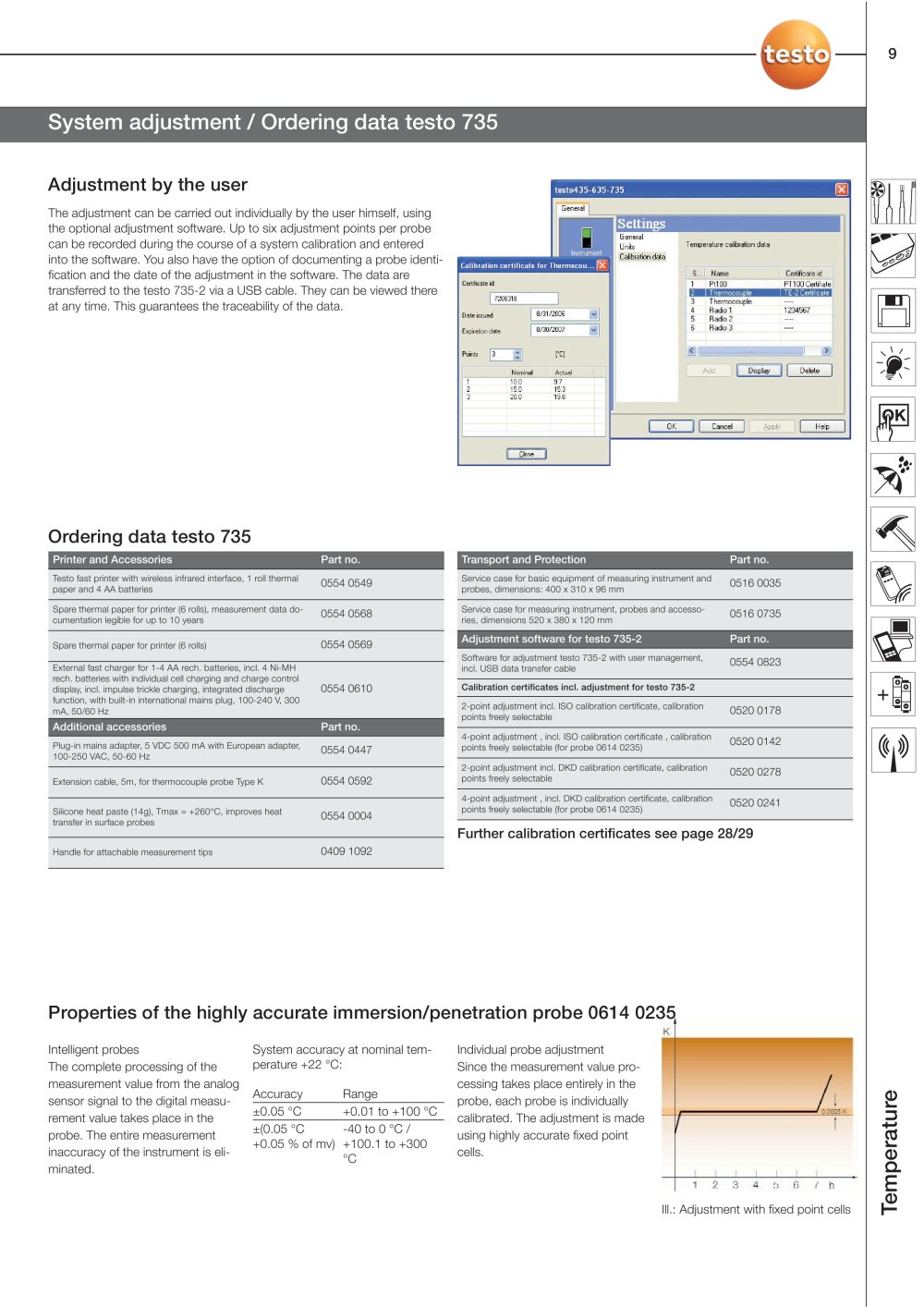

9 System adjustment / Ordering data testo 735 Temperature The adjustment can be carried out individually by the user himself, using the optional adjustment software. Up to six adjustment points per probe can be recorded during the course of a system calibration and entered into the software. You also have the option of documenting a probe identification and the date of the adjustment in the software. The data are transferred to the testo 735-2 via a USB cable. They can be viewed there at any time. This guarantees the traceability of the data. Adjustment by the user Testo fast printer with wireless infrared interface, 1 roll thermal paper and 4 AA batteries 0554 0549 Spare thermal paper for printer (6 rolls), measurement data documentation legible for up to 10 years 0554 0568 Spare thermal paper for printer (6 rolls) 0554 0569 External fast charger for 1-4 AA rech. batteries, incl. 4 Ni-MH rech. batteries with individual cell charging and charge control display, incl. impulse trickle charging, integrated discharge function, with built-in international mains plug, 100-240 V, 300 mA, 50/60 Hz 0554 0610 Plug-in mains adapter, 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz 0554 0447 Printer and Accessories Additional accessories Part no. Service case for basic equipment of measuring instrument and probes, dimensions: 400 x 310 x 96 mm 0516 0035 Transport and Protection Part no. Extension cable, 5m, for thermocouple probe Type K 0554 0592 Silicone heat paste (14g), Tmax = +260°C, improves heat transfer in surface probes 0554 0004 Handle for attachable measurement tips 0409 1092 Further calibration certificates see page 28/29 Part no. Properties of the highly accurate immersion/penetration probe 0614 0235 Ill.: Adjustment with fixed point cells System accuracy at nominal temperature +22 °C: Accuracy Range ±0.05 °C +0.01 to +100 °C ±(0.05 °C +0.05 % of mv) -40 to 0 °C / +100.1 to +300 °C Individual probe adjustment Since the measurement value processing takes place entirely in the probe, each probe is individually calibrated. The adjustment is made using highly accurate fixed point cells. Intelligent probes The complete processing of the measurement value from the analog sensor signal to the digital measurement value takes place in the probe. The entire measurement inaccuracy of the instrument is eliminated. Software for adjustment testo 735-2 with user management, incl. USB data transfer cable 0554 0823 2-point adjustment incl. ISO calibration certificate, calibration points freely selectable 0520 0178 4-point adjustment , incl. ISO calibration certificate , calibration points freely selectable (for probe 0614 0235) 0520 0142 2-point adjustment incl. DKD calibration certificate, calibration points freely selectable 0520 0278 4-point adjustment , incl. DKD calibration certificate, calibration points freely selectable (for probe 0614 0235) 0520 0241 Calibration certificates incl. adjustment for testo 735-2 Adjustment software for testo 735-2 Part no. Ordering data testo 735 Service case for measuring instrument, probes and accessories, dimensions 520 x 380 x 120 mm 0516 0735
