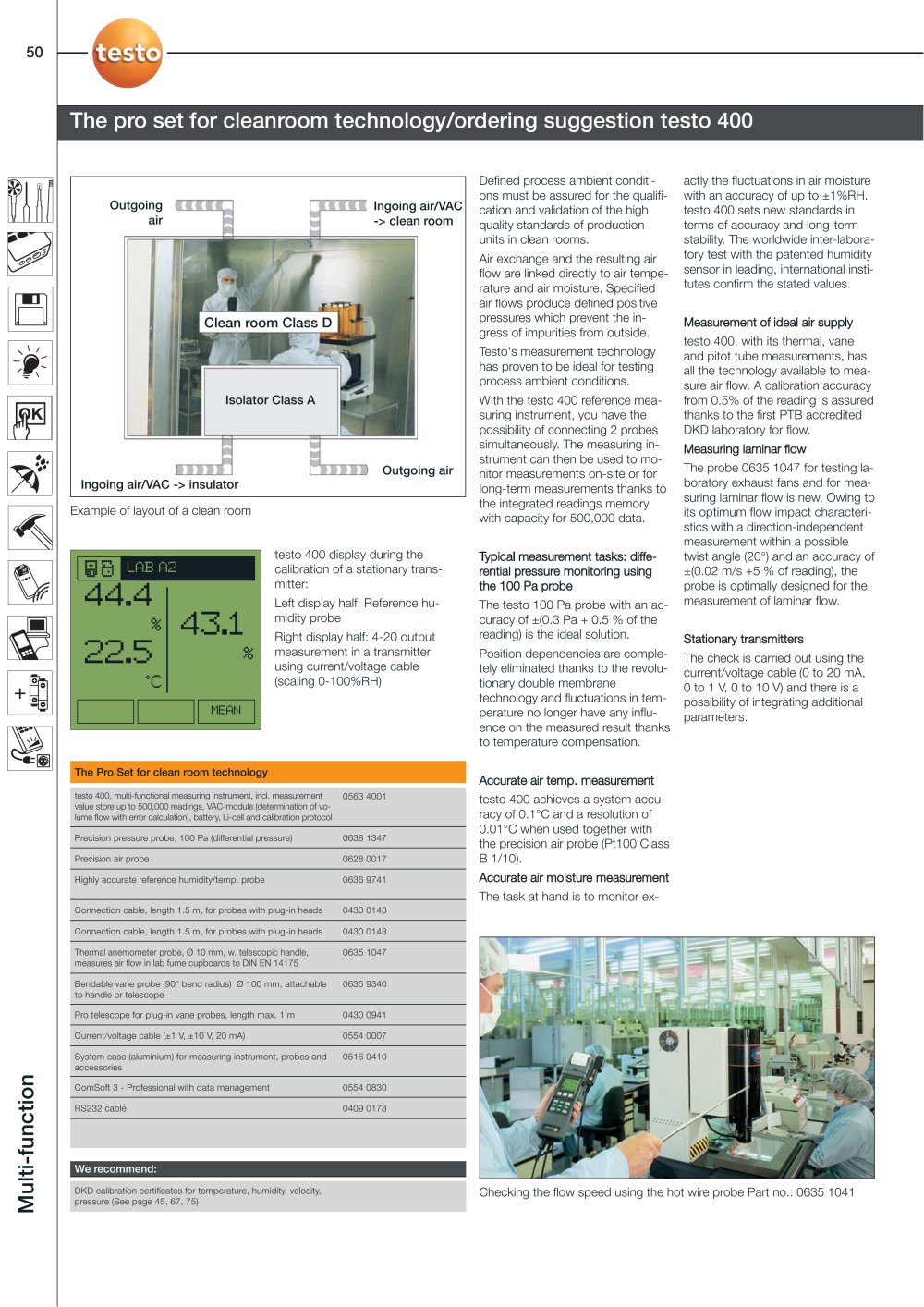

The pro set for cleanroom technology/ordering suggestion testo 400
Defined process ambient
conditions must be assured for the
qualification and validation of the
high quality standards of
production units in
clean rooms.Air exchange and the resulting airflow are linked directly to air
temperature and air moisture.
Specified air flows produce defined
positive pressures which prevent
the ingress of impurities from
outside.Testo’s measurement technologyhas proven to be ideal for testing
process ambient conditions.With the testo 400 referencemeasuring instrument, you have the
possibility of connecting 2 probes
simultaneously. The measuring
instrument can then be used to
monitor measurements on-site or
for long-term measurements thanks
to the integrated readings memory
with capacity for 500,000 data. Accurate a air m moisture m measurement Ingoing air/VAC->clean room The task at hand is to monitorexactly the fluctuations in air
moisture with an accuracy of up to
±1%RH. testo 400 sets new
standards in terms of accuracy and
long-term stability. The worldwide
inter-laboratory test with the
patented
humidity sensor in
leading, international institutes
confirm the stated values.
Clean room Class D
Measurement o of i ideal a air s supply testo 400, with its thermal, vane
and
pitot tube measurements, has
all the technology available to
measure air flow. A calibration
accuracy from 0.5% of the reading
is assured thanks to the first PTB
accredited DKD laboratory for flow. Isolator Class AOutgoing airIngoing air/VAC ->insulator
Outgoingair Measuring l laminar f flow The probe 0635 1047 for testing
laboratory
exhaust fans and for
measuring laminar flow is new.
Owing to its optimum flow impact
characteristics with a direction-
independent measurement within a
possible twist angle (20°) and an
accuracy of ±(0.02 m/s +5 % of
reading), the probe is optimally
designed for the measurement of
laminar flow. testo 400 display during thecalibration of a stationary
transmitter:Left display half: Referencehumidity probeRight display half: 4-20 outputmeasurement in a transmitter
using current/voltage cable
(scaling 0-100%RH)
Lab A2
Typical m measurement t tasks:differential
44.422.5
p pressure m monitoringusing t the 1 100 P Pa p probe
%°C
43.1
The testo 100 Pa probe with an
accuracy of ±(0.3 Pa + 0.5 % of the
reading) is the ideal solution.Position dependencies arecompletely eliminated thanks to the
revolutionary double membrane
technology and fluctuations in
temperature no longer have any
influence on the measured result
thanks to temperature
compensation.
%
Stationary t transmitters Mean The check is carried out using the
current/voltage cable (0 to 20 mA,
0 to 1 V, 0 to 10 V) and there is a
possibility of integrating additional
parameters.
The Pro Set for clean room technology testo 400, multi-functional measuring instrument, incl. measurementvalue store up to 500,000 readings, VAC-module (determination of
volume flow with error calculation), battery, Li-cell and calibration protocol 0563 4001Precision pressure probe, 100 Pa (differential pressure)0638 1347Precision air probe 0628 0017Highly accurate reference humidity/temp. probe incl. cal. cert.0636 9741Connection cable, length 1.5 m, for probes with plug-in heads0430 0143Connection cable, length 1.5 m, for probes with plug-in heads0430 0143 Accurate a air t temp. m measurement testo 400 achieves a system
accuracy of 0.1°C and a resolution
of 0.01°C when used together with
the precision air probe (Pt100 Class
B 1/10).
Thermal anemometer probe, Ø 10 mm, w. telescopic handle,measures air flow in lab fume cupboards to DIN EN 14175 0635 1047Bendable vane probe (90° bend radius) Ø 100 mm, attachableto handle or telescope0635 9340Pro telescope for plug-in vane probes, length max. 1 m0430 0941Current/voltage cable (±1 V, ±10 V, 20 mA) 0554 0007System case (aluminium) for measuring instrument, probes andaccessories0516 0410ComSoft 3 - Professional with data management0554 0830RS232 cable0409 0178 We recommend: DKD calibration certificates for temperature, humidity, velocity,pressure (See page 45, 67, 75) Checking the flow speed using the hot wire probe Part no.: 0635 1041
Example of layout of a clean room
Multi-function
