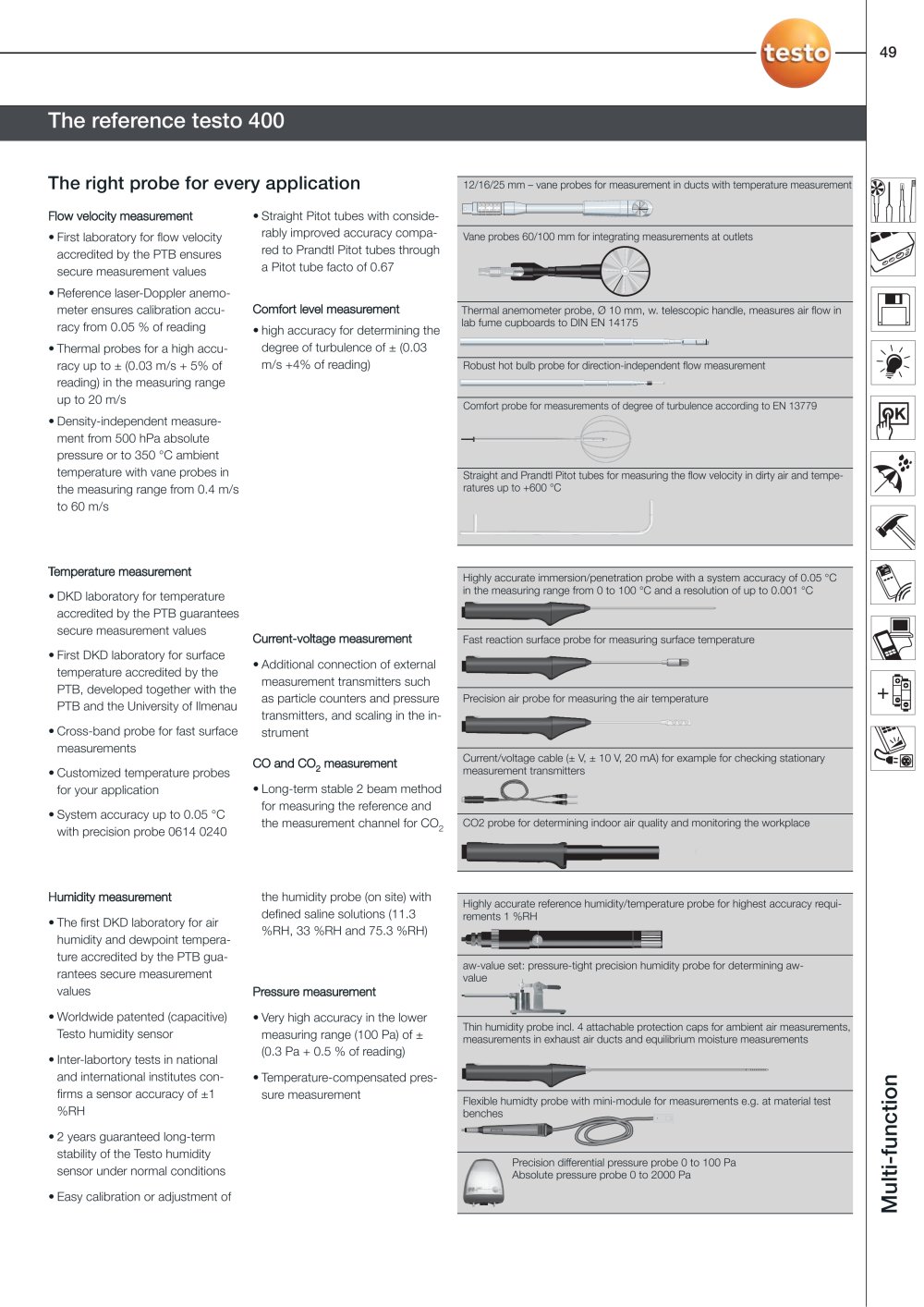

49 The reference testo 400 Multi-function The right probe for every application Comfort probe for measurements of degree of turbulence according to EN 13779 Robust hot bulb probe for direction-independent flow measurement Vane probes 60/100 mm for integrating measurements at outlets 12/16/25 mm – vane probes for measurement in ducts with temperature measurement Straight and Prandtl Pitot tubes for measuring the flow velocity in dirty air and temperatures up to +600 °C Comfort level measurement • high accuracy for determining the degree of turbulence of ± (0.03 m/s +4% of reading) Flow velocity measurement • First laboratory for flow velocity accredited by the PTB ensures secure measurement values • Reference laser-Doppler anemometer ensures calibration accuracy from 0.05 % of reading • Thermal probes for a high accuracy up to ± (0.03 m/s + 5% of reading) in the measuring range up to 20 m/s • Density-independent measurement from 500 hPa absolute pressure or to 350 °C ambient temperature with vane probes in the measuring range from 0.4 m/s to 60 m/s Thermal anemometer probe, Ø 10 mm, w. telescopic handle, measures air flow in lab fume cupboards to DIN EN 14175 Temperature measurement • DKD laboratory for temperature accredited by the PTB guarantees secure measurement values • First DKD laboratory for surface temperature accredited by the PTB, developed together with the PTB and the University of Ilmenau • Cross-band probe for fast surface measurements • Customized temperature probes for your application • System accuracy up to 0.05 °C with precision probe 0614 0240 Current-voltage measurement • Additional connection of external measurement transmitters such as particle counters and pressure transmitters, and scaling in the instrument CO and CO2 measurement • Long-term stable 2 beam method for measuring the reference and the measurement channel for CO2 Highly accurate immersion/penetration probe with a system accuracy of 0.05 °C in the measuring range from 0 to 100 °C and a resolution of up to 0.001 °C Fast reaction surface probe for measuring surface temperature Precision air probe for measuring the air temperature CO2 probe for determining indoor air quality and monitoring the workplace Current/voltage cable (± V, ± 10 V, 20 mA) for example for checking stationary measurement transmitters Highly accurate reference humidity/temperature probe for highest accuracy requirements 1 %RH Humidity measurement • The first DKD laboratory for air humidity and dewpoint temperature accredited by the PTB guarantees secure measurement values •Worldwide patented (capacitive) Testo humidity sensor • Inter-labortory tests in national and international institutes confirms a sensor accuracy of ±1 %RH • 2 years guaranteed long-term stability of the Testo humidity sensor under normal conditions • Easy calibration or adjustment of Pressure measurement • Very high accuracy in the lower measuring range (100 Pa) of ± (0.3 Pa + 0.5 % of reading) • Temperature-compensated pressure measurement aw-value set: pressure-tight precision humidity probe for determining awvalue Flexible humidty probe with mini-module for measurements e.g. at material test benches Precision differential pressure probe 0 to 100 Pa Absolute pressure probe 0 to 2000 Pa • Straight Pitot tubes with considerably improved accuracy compared to Prandtl Pitot tubes through a Pitot tube facto of 0.67 the humidity probe (on site) with defined saline solutions (11.3 %RH, 33 %RH and 75.3 %RH) Thin humidity probe incl. 4 attachable protection caps for ambient air measurements, measurements in exhaust air ducts and equilibrium moisture measurements
