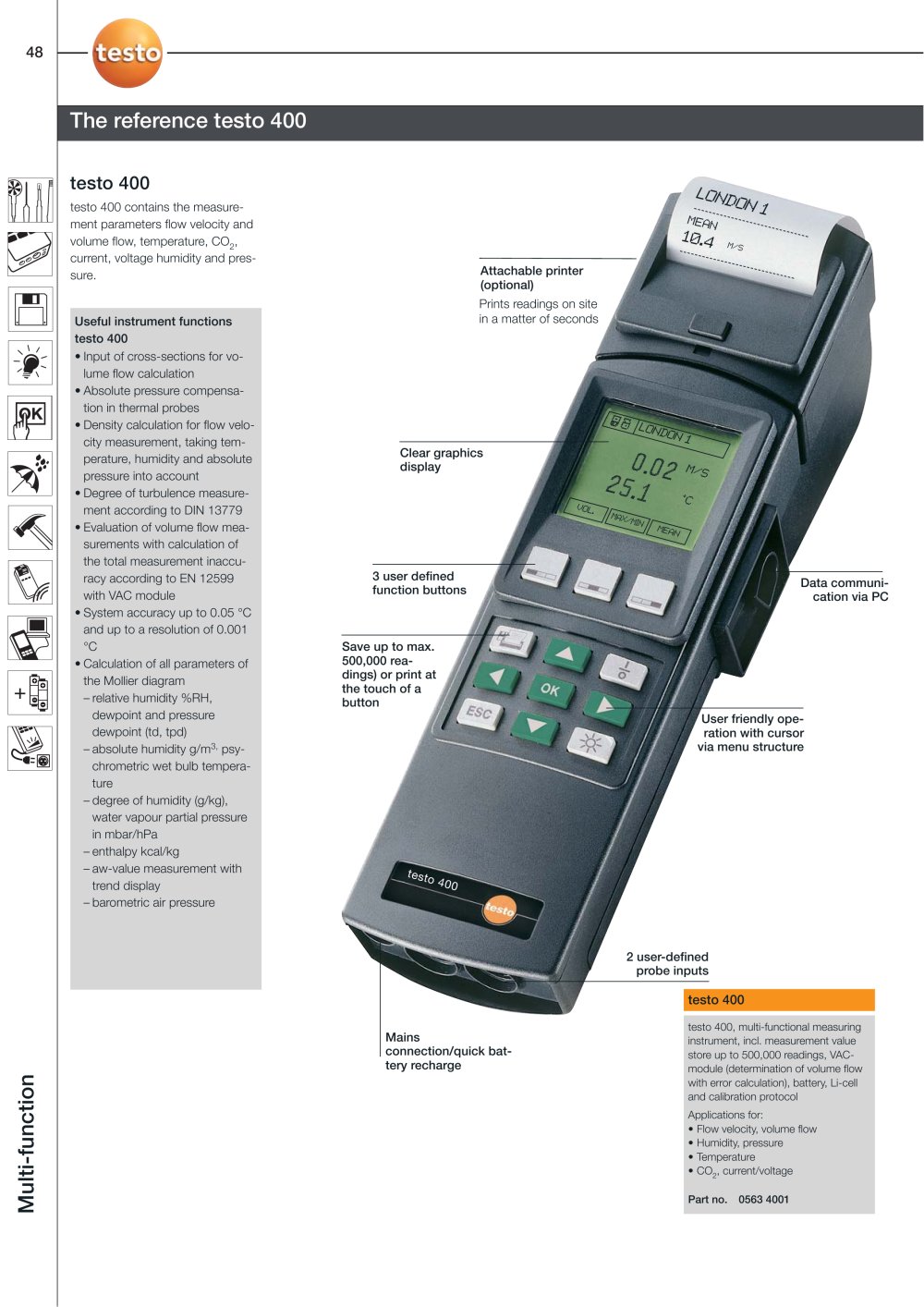

48

fhe refer

testo 400

testo 400 contains the measurement parameters flow velocity and volume flow, temperature, CO₂, current, voltage humidity and pressure.

Attachable printer

Prints readings on site in a matter of seconds

Useful instrument functions testo 400

• Input of cross-sections for volume flow calculation

• Absolute pressure compensation in thermal probes

• Density calculation for flow velocity measurement, taking temperature, humidity and absolute pressure into account

• Degree of turbulence measurement according to DIN 13779

• Evaluation of volume flow measurements with calculation of the total measurement inaccuracy according to EN 12599 with VAC module

• System accuracy up to 0.05 °C and up to a resolution of 0.001 °C

• Calculation of all parameters of the Mollier diagram -relative humidity %RH,

dewpoint and pressure

dewpoint (td, tpd) -absolute humidity g/m^3,

psychrometric wet bulb

temperature -degree of humidity (g/kg),

water vapour partial pressure

in mbar/hPa

- enthalpy kcal/kg

- aw-value measurement with trend display

- barometric air pressure

Clear graphics display

3 user defined function buttons

Data

communication via PC

Save up to max. 500,000 readings) or print at the touch of a

User friendly operation with

cursor via menu structure

2 user-defined

probe inputs

testo 400

testo 400, multi-functional measuring instrument, incl. measurement value store up to 500,000 readings, VAC-module (determination of volume flow with error calculation), battery, Li-cell and calibration protocol

Applications for:

• Flow velocity, volume flow

• Humidity, pressure

• Temperature •CO₂, current/voltage

Part no. 0563 4001

Mains

connection/quick battery recharge
