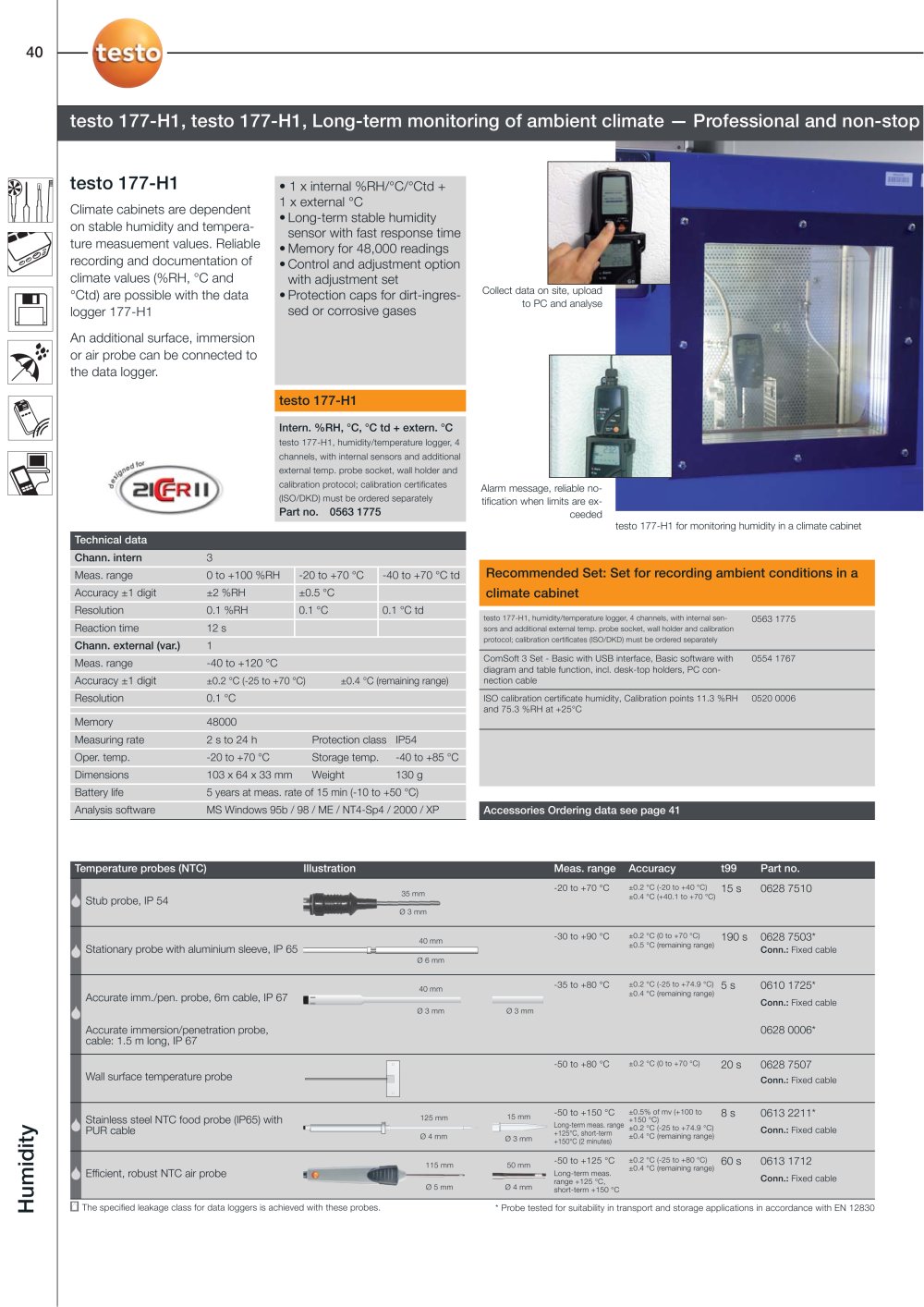

esto 177-1

testo 177-H1

Climate cabinets are dependent on stable humidity and temperature measuement values. Reliable recording and documentation of climate values (%RH, °C and °Ctd) are possible with the data logger 177-H1

An additional surface, immersion or air probe can be connected to the data logger.

• 1 x internal %RH/°C/°Ctd + 1 x external °C

• Long-term stable humidity sensor with fast response time

• Memory for 48,000 readings

• Control and adjustment option with adjustment set

• Protection caps for dirt-ingressed or corrosive gases

Collect data on site, upload to PC and analyse

testo 177-H1

Intern. %RH, °C, °C td + extern. °C

testo 177-H1, humidity/temperature logger, 4 channels, with internal sensors and additional external temp. probe socket, wall holder and calibration protocol Part no. 0563 1775

Alarm message, reliable notification when limits are exceeded

testo 177-H1 for monitoring humidity in a climate cabinet


Technical data
Chann. intern	3
Meas. range	0 to +100 %RH	-20 to +70 °C	-40 to +70 °C td
Accuracy ±1 digit	±2 %RH	±0.5 °C
Resolution	0.1 %RH	0.1 °C	0.1 °C td
Reaction time	12 s
Chann. external (var.)	1
Meas. range	-40 to +120 °C
Accuracy ±1 digit	±0.2 °C (-25 to +70 °C) ±0.4 °C (remaining range)
Resolution	0.1 °C
Memory	48000
Measuring rate	2 s to 24 h	Protection class IP54
Oper. temp.	-20 to +70 °C	Storage temp.	-40 to +85 °C
Dimensions	103 x 64 x 33 mm	Weight	130 g
Battery life	5 years at meas. rate of 15 min (-10 to		+50 °C)
Analysis software	MS Windows 95b /	98 / ME / NT4-Sp4 / 2000 / XP

Recommended Set: Set for recording ambient conditions in a climate cabinet


	testo 177-H1, humidity/temperature logger, 4 channels, with Internal sensors and additional external temp. probe socket, wall holder and calibration protocol	0563 1775
	ComSoft 3 Set - Basic with USB interface, Basic software with diagram and table function, incl. desk-top holders, PC connection cable	0554 1767
	ISO calibration certificate humidity, Calibration points 11.3 %RH and 75.3 %RH at +25°C	0520 0006

Accessories Ordering data see pa

Industrial temperature probes (NTC)

Meas. range Accuracy t99 Part no.

-20 to+70 °C ±0.2 -C(-20 to+40 °C) 15 s 0628 7510

±0.4 °C(+40.1 to+70 °C)

jb mm

Stub probe, IP 54

0 3 mm

-30 to +90 °C ±0.2 °C (0 to +70 °C) 190 s 0628 7503*

40 mm

±0.5 °C (remaining range)

Stationary probe with aluminium sleeve, IP 65

Conn.: Fixed cable

0 6 mm

-35 to +80 °C

±0.2 °C (-25 to +74.9 °C) 5 s ±0.4 °C (remaining range)

0610 1725*

Conn.: Fixed cable

0628 0006*

40 mm

Accurate imm./pen. probe, 6m cable, IP 67

0 3 mm

Accurate immersion/penetration probe, cable: 1.5 m long, IP 67

-50 to +80 °C ±0.2 °C (0 to +70 °C)

20 s

0628 7507 Conn.: Fixed cable

Wall surface temperature probe

-50 to +150 °C ±0.5% of mv (+100 to

^L°^ng:^terT^e? ^range +0⁵2°°c((-25 to +74.9 °C)

+¹²⁵°^Cl, ^short-term ±0.4 °C (remaining range) +150°C (2 minutes) ^v y y ;

0613 2211* Conn.: Fixed cable

8 s

15 mm

125 mm

Stainless steel NTC food probe (IP65) with PUR cable

0 4 mm

03 mm

50 _mm -50 to +125 °C ±0.2 °C (-25 to +80 °C) 60 s

^JU ^1,11,1 ±0.4 °C (remaining range) ■ ■ Long-term meas. range +125 °C, ⁰⁴ ^mm short-term +150 °C

0613 1712

Conn.: Fixed cable

115 mm 0 5 mm

Efficient, robust NTC air probe

I The specified leakage class for data loggers Is achieved with these probes.

* Probe tested for suitability In transport and storage applications In accordance with EN 12830
