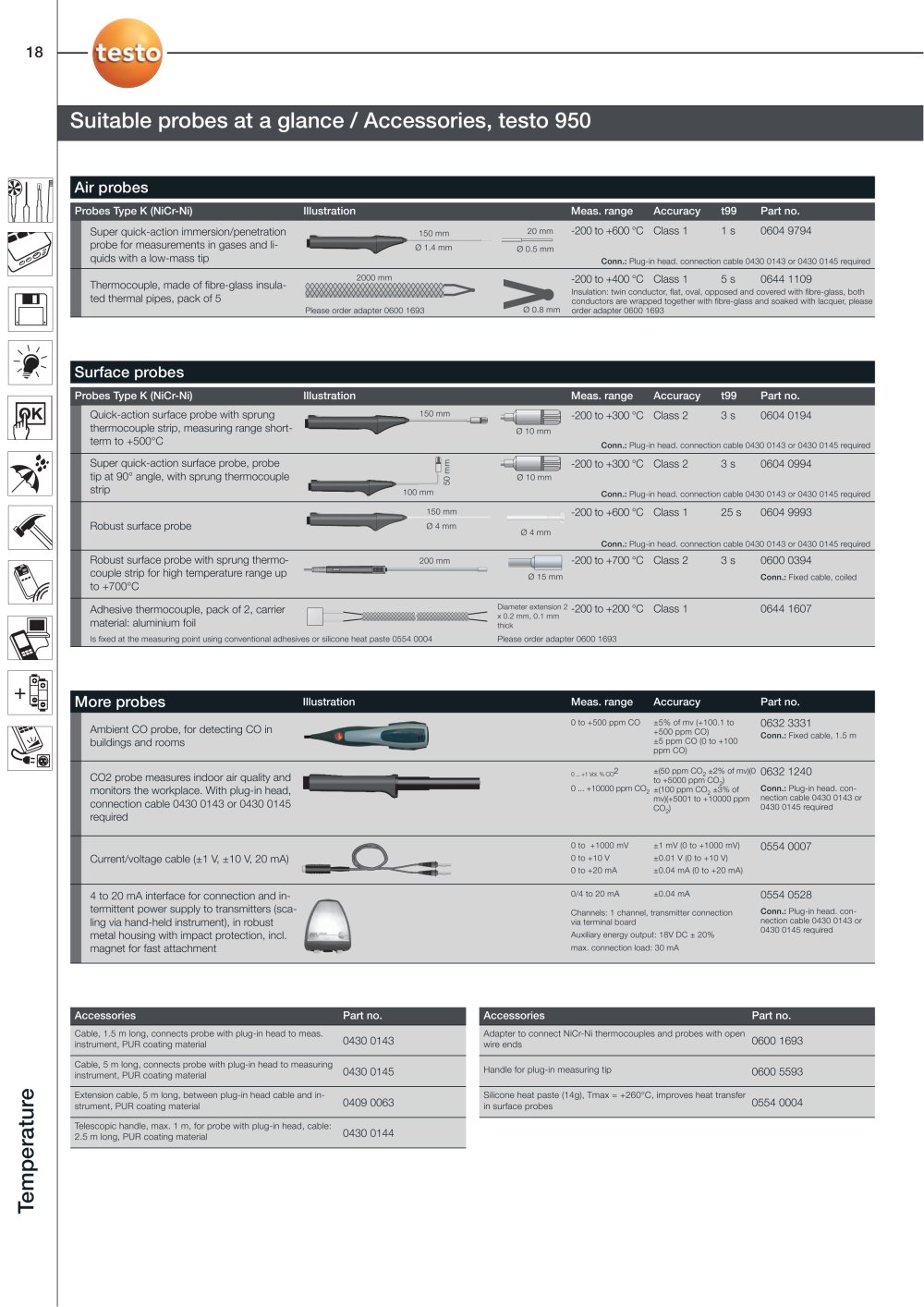

Air probes
Probes Type K (NiCr-Ni)	Illustration		Meas. range Accuracy t99 Part no.
Super quick-action immersion/penetration	_r__^ 150 mm	20 mm	-200 to +600 °C Class 1 1 s 0604 9794
probe for measurements in gases and liquids with a low-mass tip	* — s]^""'''^ 0 1.4 mm	0 0.5 mm	Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required
Thermocouple, made of fibre-glass insulated thermal pipes, pack of 5	2000 mm Please order adapter 0600 1693		-200 to +400 °C Class 1 5 s 0644 1109 Insulation: twin conductor, flat, oval, opposed and covered with fibre-glass, both conductors are wrapped together with fibre-glass and soaked with lacquer, please order adapter 0600 1693

Surface probes

150 mm

Quick-action surface probe with sprung thermocouple strip, measuring range short-

term to +500°C

-200 to +300 °C Class 2 3 s

0604 0194 0614 0194*

0 10 mm

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

Super quick-action surface probe, probe tip at 90° angle, with sprung thermocouple strip

-200 to+300 °C Class 2 3 s 0604 0994

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

0 10 mm

100 mm

-200 to +600 °C Class 1

25 s 0604 9993

150 mm 04 mm

Robust surface probe

04 mm

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

130 mm H

04 mm

0 4 mm -200 to+600 °C Class 1 25 s 0604 9893

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

Robust surface probe, at 90° angle, suitable for inaccessible places

Robust surface probe with sprung thermocouple strip for high temperature range up to +700°C

-200 to+700 °C Class 2

3 s 0600 0394

Conn.: Fixed cable, coiled

200 mm

0 15 mm

,._vw,_w,__^Diameter ^extension ² -200 to +200 °C Class 1

r " x 0.2 mm, 0.1 mm thick

Please order adapter 0600 1693

0644 1607

Adhesive thermocouple, pack of 2, carrier material: aluminium foil

Is fixed at the measuring point using conventional industrial adhesives or silicone heat paste 0554 0004

More probes

Meas. range Accuracy

Part no.

0 to +500 ppm CO ±5% of mv (+100.1 to +500 ppm CO) ±5 ppm CO (0 to +100

ppm CO)

0632 3331

Conn.: Fixed cable, 1.5 m

Ambient CO probe, for detecting CO in buildings and rooms

0 to +1 Vol. % CO₂ ±(50 ppm CO₂ ±2% of mv)(0 0632 1240 ² to +5000 ppm² CO₂)

0 to+10000 ppm CO₂ ±(100 ppm CO₂ ±3%% of Conn.: Plug-in head.

mv)(+5001 to +10000 ppm connection cable 0430 0143 CO₂) or 0430 0145 required

CO2 probe measures indoor air quality and monitors the workplace. With plug-in head,

connection cable 0430 0143 or 0430 0145

required


Current/voltage cable (±1 V, ±10 V, 20 mA) _______		0 to +1000 mV ±1 mV (0 to +1000 mV) 0 to+10 V ±0.01 V(0 to+10 V) 0 to +20 mA ±0.04 mA (0 to +20 mA)		0554 0007
4 to 20 mA interface for connection and ___ intermittent power supply to transmitters / (scaling via hand-held instrument), in robust metal housing with impact protection, incl. magnet for fast attachment		0/4 to 20 mA ±0.04 mA Channels: 1 channel, transmitter connection via terminal board Auxiliary energy output: 18V DC ± 20% max. connection load: 30 mA		0554 0528 Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

Accessories	Part no.		Accessories	Part no.
Cable, 1.5 m long, connects probe with plug-in head to meas. instrument, PUR coating material	0430 0143		Adapter to connect NiCr-Ni thermocouples and probes with open wire ends	0600 1693
Cable, 5 m long, connects probe with plug-in head to measuring instrument, PUR coating material	0430 0145		Handle for plug-in measuring tip	0600 5593
Extension cable, 5 m long, between plug-in head cable and instrument, PUR coating material	0409 0063		Silicone heat paste (14g), Tmax = +260°C, improves heat transfer in surface probes	0554 0004
Telescopic handle, max. 1 m, for probe with plug-in head, cable: 2.5 m long, PUR coating material	0430 0144

*with EEPROM: Precision adjustment for each probe at a measuring point; measuring range limits are saved in probe; t95 extrapolation; surface allowance In surface probe can be adapted to measuring task
