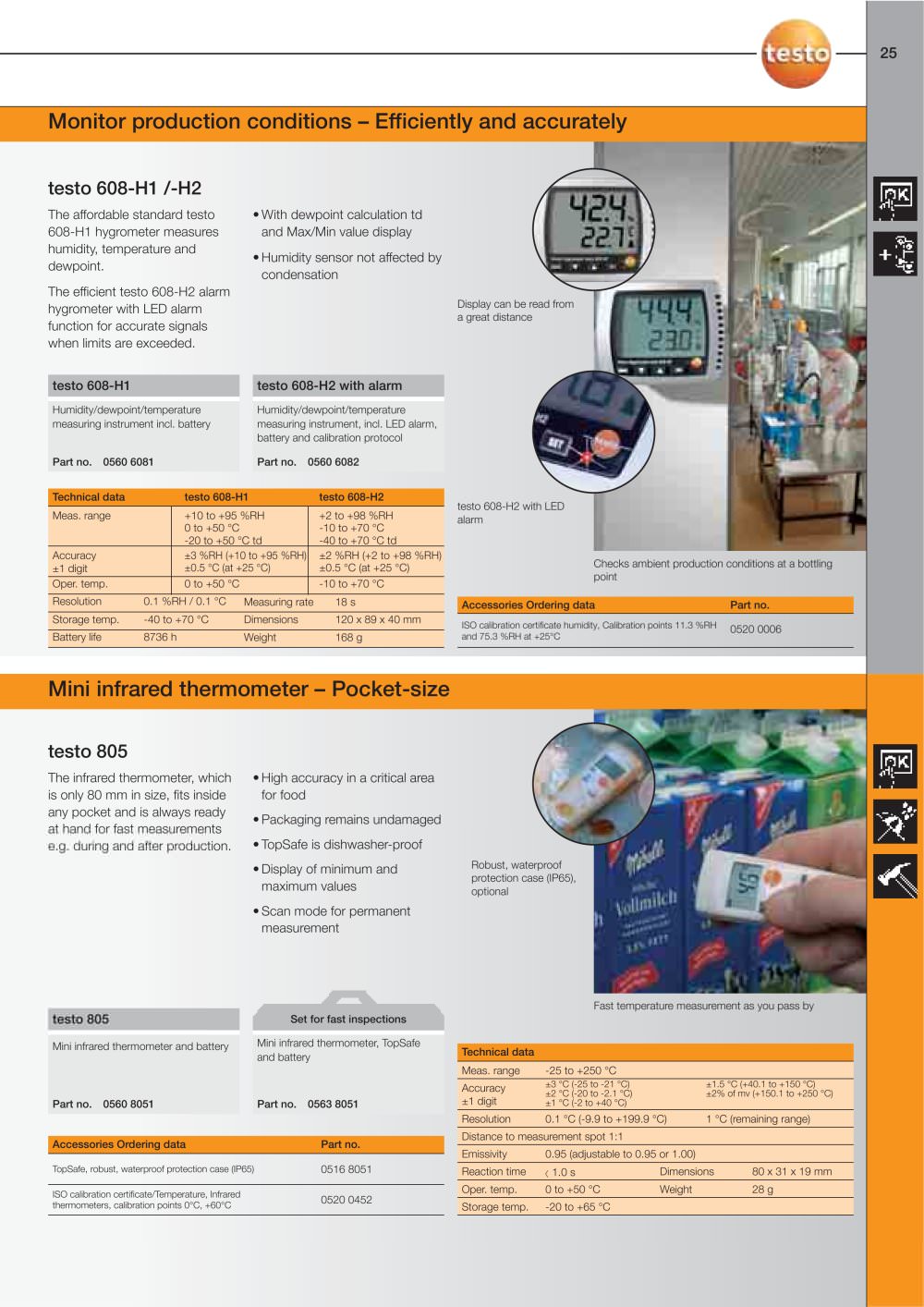

Monitor production conditions - Efficiently and accurately

testo 608-H1 /-H2

The affordable standard testo 608-H1 hygrometer measures humidity, temperature and dewpoint.

The efficient testo 608-H2 alarm hygrometer with LED alarm function for accurate signals when limits are exceeded.

»With dewpoint calculation td and Max/Min value display

►Humidity sensor not affected by condensation

Display can be read from a great distance

testo 608-H1

H u m i d ity/d ewpo i nt/tem pe rat u re measuring instrument incl. battery

testo 608-H2 with alarm

Humidity/dewpoint/temperature measuring instrument, incl. LED alarm, battery and calibration protocol

Part no. 0560 6082

Part no. 0560 6081


Technical data		testo 608-H1	testo 608-H2
Meas. range		+10 to +95 %RH 0 to +50 °C -20 to +50 °C td	+2 to +98 %RH -10 to +70 °C -40 to +70 °C td
Accuracy ±1 digit		±3 %RH (+10 to +95 %RH) ±0.5 °C (at +25 °C)	±2 %RH (+2 to +98 %RH) ±0.5 °C (at +25 °C)
Oper. temp.		0 to +50 °C	-10 to +70 °C
Resolution	0.1 %RH/0.1 °C Measuring rate 18 s
Storage temp.	-40 to +70 °C Dimensions		120x89x40 mm
Battery life	8736 h Weight		168 g

testo 608-H2 with LED alarm

Checks ambient production conditions at a bottling point

Accessories Ordering data

Part no.

ISO calibration certificate humidity, Calibration points 11.3 %RH and 75.3 %RH at +25°C

Mini infrared thermometer - Pocket-size

testo 805

The infrared thermometer, which is only 80 mm in size, fits inside any pocket and is always ready at hand for fast measurements e.g. during and after production.

» High accuracy in a critical area for food

» Packaging remains undamaged

» TopSafe is dishwasher-proof

» Display of minimum and maximum values

» Scan mode for permanent measurement

Robust, waterproof protection case (IP65), optional

Vollfl»^,ch

Fast temperature measurement as you pass by

testo 805

Mini infrared thermometer and battery

Set for fast inspections

Mini infrared thermometer, TopSafe and battery


Technical data
Meas. range	-25 to +250 °C
Accuracy ±1 digit	±3 °C (-25 to -21 °C) ±2 °C (-20 to-2.1 °C) ±1 °C (-2 to +40 °C)	±1.5 °C (+40.1 to+150 °C) ±2% of mv (+150.1 to +250 °C)
Resolution	0.1 °C (-9.9 to +199.9 °C)	1 °C (remaining range)
Emissivity	0.95 (adjustable to 0.95 or 1.00)
Reaction time	< 1.0 s Dimensions 80 x 31 x 19 mm
Oper. temp.	0 to +50 °C Weight	28 g
Storage temp.	-20 to +65 °C

Part no. 0560 8051

Part no. 0563 8051


	Accessories Ordering data	Part no.
	TopSafe, robust, waterproof protection case (IP65)	0516 8051
	ISO calibration certificate/Temperature, Infrared thermometers, calibration points 0°C, +60°C	0520 0452
