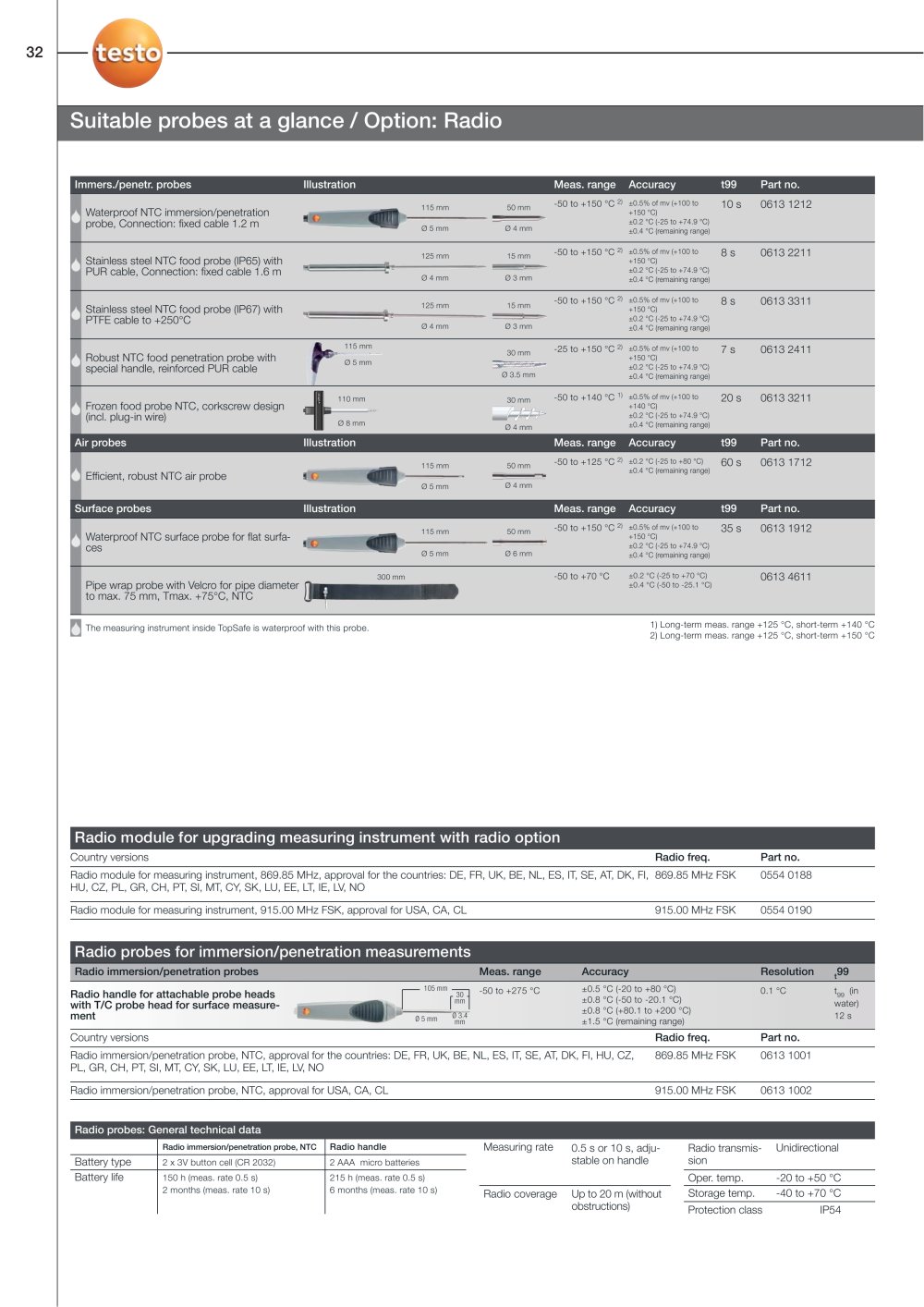

Suitable probes at a glance/ Option: Radio

Meas. rangeAccuracyIllustrationImmers./penetr. probesPart no. t99
-50 to+150 °C 2) ±0.5% of mv(+100 to+150 °C) ±0.2 °C(-25 to+74.9 °C) ±0.4 °C(remaining range) 10 s Waterproof NTC immersion/penetrationprobe0613 1212
115 mmØ5 mm50 mmØ4 mm -50 to+150 °C 2) ±0.5% of mv(+100 to+150 °C) ±0.2 °C(-25 to+74.9 °C) ±0.4 °C(remaining range) 8 s Stainless steel NTC food probe (IP65) withPUR cable0613 2211
125 mmØ4 mm15 mmØ3 mm 115 mmØ5 mm30 mmØ3.5 mm -25 to+150 °C 2) ±0.5% of mv(+100 to+150 °C) ±0.2 °C(-25 to+74.9 °C) ±0.4 °C(remaining range) 7 s Robust NTC food penetration probe withspecial handle, reinforced PUR cable0613 2411
110 mmØ8 mm30 mmØ4 mm -50 to+140 °C 1) ±0.5% of mv(+100 to+140 °C) ±0.2 °C(-25 to+74.9 °C) ±0.4 °C(remaining range) 20 s Frozen food probe NTC, corkscrew design(incl. plug-in wire)0613 3211
-50 to+150 °C 2) ±0.5% of mv(+100 to+150 °C) ±0.2 °C(-25 to+74.9 °C) ±0.4 °C(remaining range) 8 s 0613 3311 Stainless steel NTC food probe (IP67) withTeflon cable to +250°C
125 mmØ4 mm15 mmØ3 mm High temperature NTC food probe, stainlesssteel, can be used at up to +275°C, Teflon cable up to +200°C (short-term up to 250°C)0613 3411
125 mmØ4 mm15 mmØ2.2 mm 0 to+275 °C ±1% of mv(+100.1 to+275 °C) ±(0.3 °C±0.5% of mv)(0 to +100 °C) 6 s Meas. rangeAccuracyIllustrationAir probesPart no. t99
115 mmØ5 mm50 mmØ4 mm -50 to+125 °C 2) ±0.2 °C(-25 to+80 °C)±0.4 °C(remaining range) 60 s Efficient, robust NTC air probe0613 1712 Meas. rangeAccuracyIllustrationSurface probesPart no. t99
-50 to+150 °C 2) ±0.5% of mv(+100 to+150 °C) ±0.2 °C(-25 to+74.9 °C) ±0.4 °C(remaining range) 35 s Waterproof NTC surface probe for flatsurfaces0613 1912
115 mmØ5 mm50 mmØ6 mm 300 mm -50 to+70 °C ±0.2 °C(-25 to+70 °C)±0.4 °C(-50 to-25.1 °C) Pipe wrap probe with Velcro for pipe diameterto max. 75 mm, Tmax. +75°C, NTC0613 4611
The measuring instrument inside TopSafe is waterproof with this probe. 1) Long-term meas. range +125 °C, short-term +140 °C2) Long-term meas. range +125 °C, short-term +150 °C

Radio module for upgrading measuring instrument with radio option

Country v versions Radio freq. Part no. Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI,HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NORadio module for measuring instrument, 915.00 MHz FSK, approval for USA, CA, CL0554 01880554 0190869.85 MHz FSK915.00 MHz FSK

Radio probes for immersion/penetration measurements

Meas. rangeAccuracyRadio immersion/penetration probest Resolution
99 Radio handle for attachable probe headswith T/C probe head for surface measurement
105 mmØ5 mm30mmØ3.4mm 0.1 °C t 99 (inwater) 12 s-50 to+275 °C±0.5 °C(-20 to+80 °C)±0.8 °C(-50 to-20.1 °C)±0.8 °C(+80.1 to+200 °C)±1.5 °C(remaining range) Country v versions Radio freq. Part no. Radio immersion/penetration probe, NTC, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ,PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NORadio immersion/penetration probe, NTC, approval for USA, CA, CL0613 10010613 1002869.85 MHz FSK915.00 MHz FSK Radio probes: General technical data
Radio immersion/penetration probe, NTC Radio handle Measuring rate0.5 s or 10 s,adjustable on handleBattery typeBattery life RadiotransmissionRadio coverageUnidirectional
2 x 3V button cell (CR 2032)2 AAA micro batteries150 h (meas. rate 0.5 s)2 months (meas. rate 10 s)215 h (meas. rate 0.5 s)6 months (meas. rate 10 s) Oper. temp.-20 to+50 °CStorage temp.-40 to+70 °C Up to 20 m (withoutobstructions) Protection class IP54
