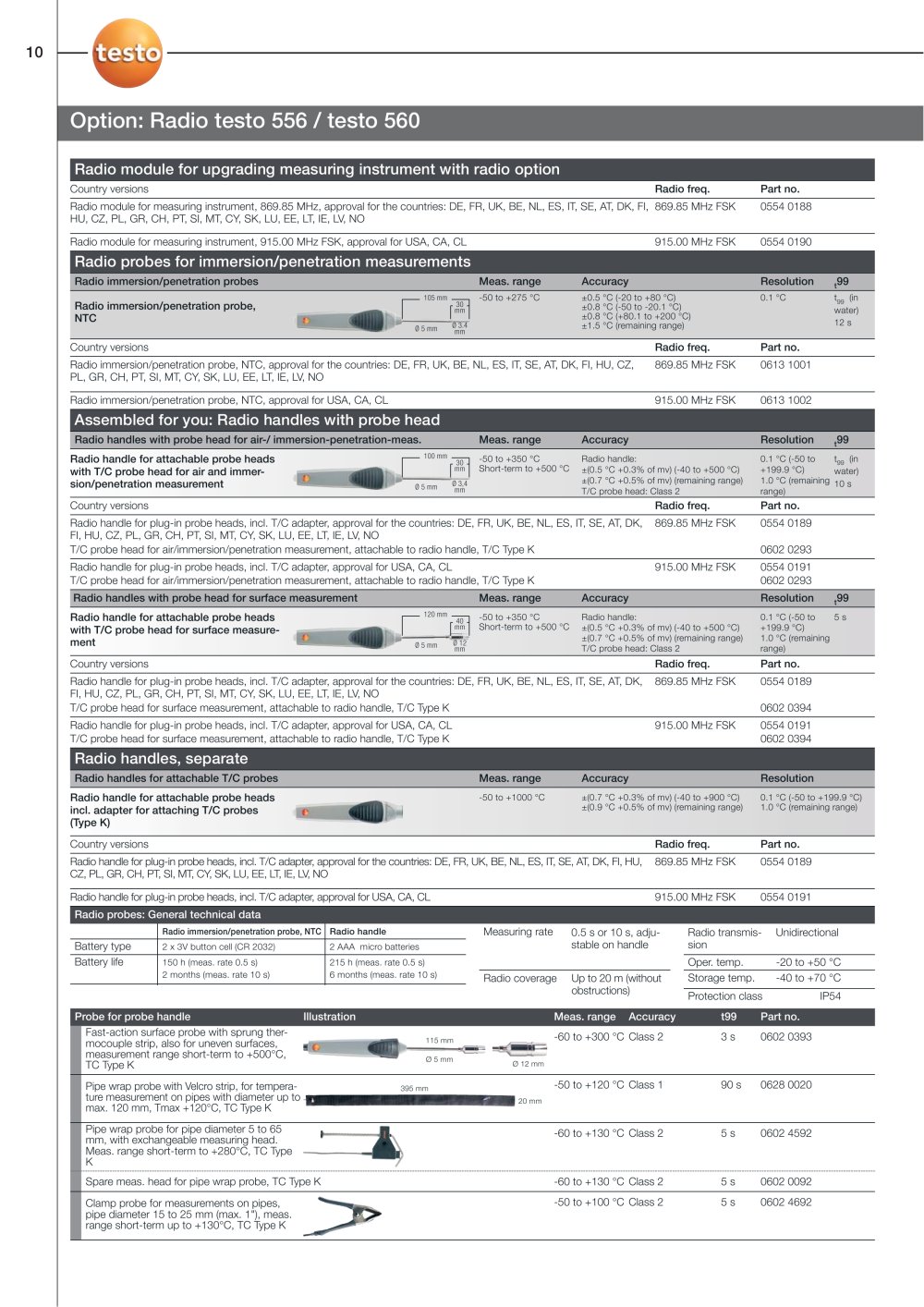

Option: Radiotesto 556 /testo 560

Radio module for upgrading measuring instrument with radio option

Country v versions Radio freq. Part no. Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI,HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NORadio module for measuring instrument, 915.00 MHz FSK, approval for USA, CA, CL0554 01880554 0190869.85 MHz FSK915.00 MHz FSK

Radio probes for immersion/penetration measurements

Meas. rangeAccuracyRadio immersion/penetration probest Resolution
99 105 mmØ5 mm30mmØ3.4mm -50 to+275 °C±0.5 °C(-20 to+80 °C)±0.8 °C(-50 to-20.1 °C) ±0.8 °C(+80.1 to+200 °C) ±1.5 °C(remaining range)0.1 °Ct (inwater) 12 s Radio immersion/penetration probe,NTC
99 Country v versions Radio freq. Part no. Radio immersion/penetration probe, NTC, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ,PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NORadio immersion/penetration probe, NTC, approval for USA, CA, CL0613 10010613 1002869.85 MHz FSK915.00 MHz FSK

Assembled for you: Radio handles with probe head

Meas. rangeAccuracyRadio handles with probe head for air-/ immersion-penetration-meas.t Resolution
99 Radio handle for attachable probe headswith T/C probe head for air and immersion/penetration measurement
100 mmØ5 mm30mmØ3,4mm 0.1 °C(-50 to +199.9 °C)1.0 °C(remaining range) t 99 (inwater) 10 s-50 to+350 °CShort-term to+500 °CRadio handle:±(0.5 °C+0.3% of mv) (-40 to+500 °C) ±(0.7 °C+0.5% of mv) (remaining range)T/C probe head: Class 2 Country v versions Radio freq. Part no. Radio handle for plug-in probe heads, incl. T/C adapter, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK,FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NORadio handle for plug-in probe heads, incl. T/C adapter, approval for USA, CA, CL0554 0189T/C probe head for air/immersion/penetration measurement, attachable to radio handle, T/C Type K0602 02930554 0191T/C probe head for air/immersion/penetration measurement, attachable to radio handle, T/C Type K0602 0293869.85 MHz FSK915.00 MHz FSK Meas. rangeAccuracyRadio handles with probe head for surface measurementt Resolution
99 Radio handle for attachable probe headswith T/C probe head for surface measurement
40mmØ12mm120 mmØ5 mm 0.1 °C(-50 to +199.9 °C) 1.0 °C(remaining range) 5 s-50 to+350 °CShort-term to+500 °CRadio handle:±(0.5 °C+0.3% of mv) (-40 to+500 °C) ±(0.7 °C+0.5% of mv) (remaining range) T/C probe head: Class 2 Country v versions Radio freq. Part no. Radio handle for plug-in probe heads, incl. T/C adapter, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK,FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NORadio handle for plug-in probe heads, incl. T/C adapter, approval for USA, CA, CL0554 0189T/C probe head for surface measurement, attachable to radio handle, T/C Type K0602 03940554 0191T/C probe head for surface measurement, attachable to radio handle, T/C Type K0602 0394869.85 MHz FSK915.00 MHz FSK

Radio handles, separate

Meas. rangeAccuracyRadio handles for attachable T/C probesResolution Radio handle for attachable probe headsincl. adapter for attaching T/C probes(Type K)
-50 to+1000 °C±(0.7 °C+0.3% of mv) (-40 to+900 °C)±(0.9 °C+0.5% of mv) (remaining range)0.1 °C(-50 to+199.9 °C)1.0 °C(remaining range) Country v versions Radio freq. Part no. Radio handle for plug-in probe heads, incl. T/C adapter, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU,CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NORadio handle for plug-in probe heads, incl. T/C adapter, approval for USA, CA, CL0554 01890554 0191869.85 MHz FSK915.00 MHz FSK Radio probes: General technical data
Radio immersion/penetration probe, NTC Radio handle Measuring rate0.5 s or 10 s,adjustable on handleBattery typeBattery life RadiotransmissionRadio coverageUnidirectional
2 x 3V button cell (CR 2032)2 AAA micro batteries150 h (meas. rate 0.5 s)2 months (meas. rate 10 s)215 h (meas. rate 0.5 s)6 months (meas. rate 10 s) Oper. temp.-20 to+50 °CStorage temp.-40 to+70 °C Up to 20 m (withoutobstructions) Protection class IP54 Meas. rangeAccuracyIllustrationProbe for probe handlePart no.t99 Fast-action surface probe with sprungthermocouple strip, also for uneven surfaces, measurement range short-term to +500°C, TC Type K0602 0393
115 mmØ5 mmØ12 mm -60 to+300 °C Class 23 s Pipe wrap probe with Velcro strip, fortemperature measurement on pipes with diameter up to max. 120 mm, Tmax +120°C, TC Type K
395 mm20 mm -50 to+120 °C Class 190 sPipe wrap probe for pipe diameter 5 to 65mm, with exchangeable measuring head. Meas. range short-term to +280°C, TC Type K0602 4592 0628 0020 -60 to+130 °C Class 25 sSpare meas. head for pipe wrap probe, TC Type K0602 0092 -60 to+130 °C Class 25 sClamp probe for measurements on pipes,pipe diameter 15 to 25 mm (max. 1"), meas. range short-term up to +130°C, TC Type K0602 4692 -50 to+100 °C Class 25 s
