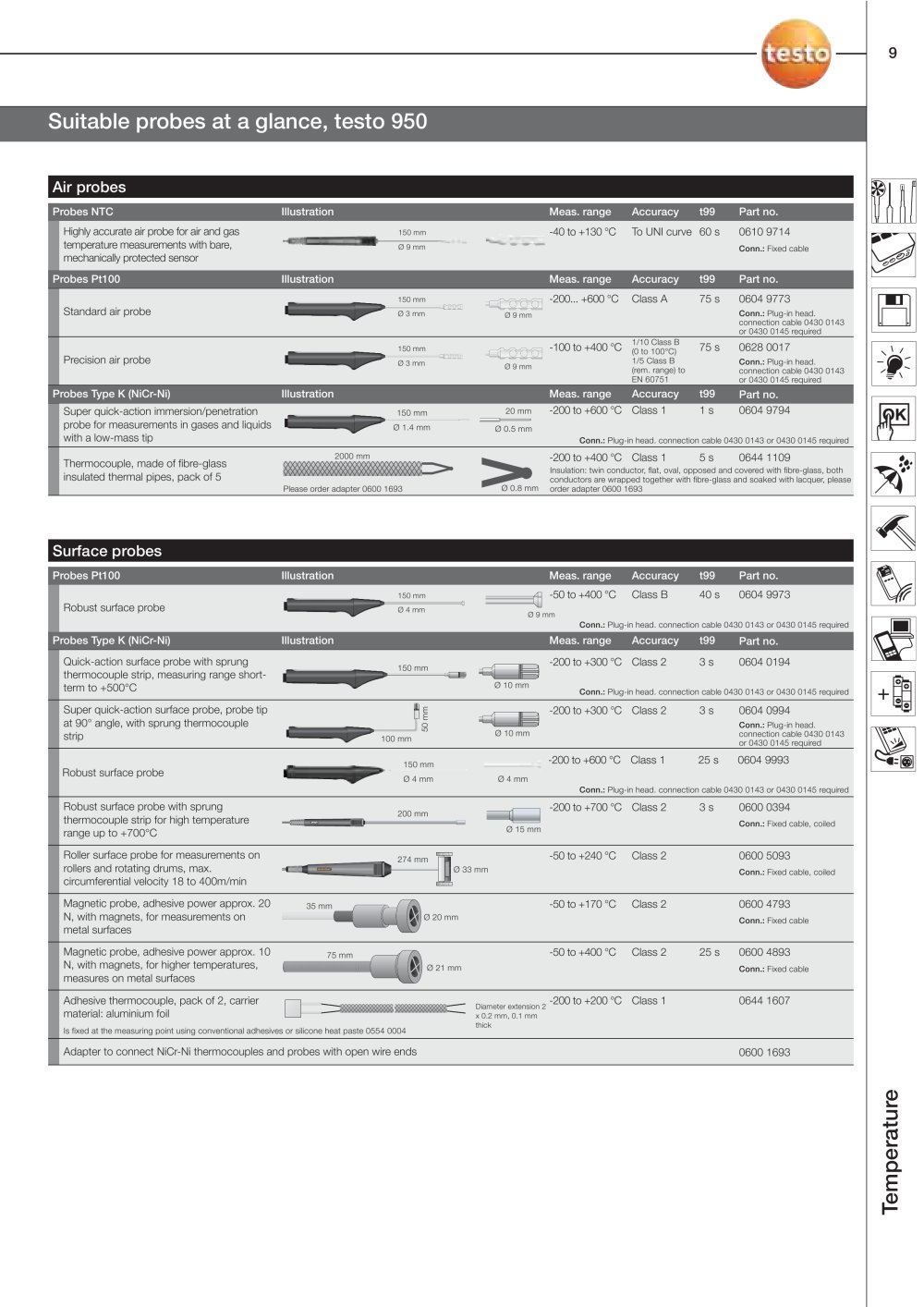

Air probes

Probes NTC

Meas. range Accuracy t99 Part no.

-40 to+130 °C To UNI curve 60 s

Highly accurate air probe for air and gas temperature measurements with bare, mechanically protected sensor

0610 9714 Conn.: Fixed cable

150 mm

0 9 mm

robes PM00

Meas. range Accuracy t99 Part no.

-200... +600 °C Class A

75 s 0604 9773

Conn.: Plug-in head. connection cable 0430 0143 _or 0430 0145 required_

150 mm

Standard air probe

_j I _A™ or* 1/10 Klasse B -nnO] ^-100 ^t0+⁴⁰⁰ °^C (0...100°C) 1/5 Klasse B (restl. ⁰⁹ ^mm Bereich) nach EN

60751

75 s 0628 0017

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

150 mm

Precision air probe

03 mm

robes Type K (NiCr-Ni)

^Meas ^ran9^e

Accuracy t99 Part no.

20 mm -200 to +600 °C Class 1

1 s

0604 9794

Super quick-action immersion/penetration probe for measurements in gases and liquids with a low-mass tip

150 mm 0 1.4 mm

0 0.5 mm

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

2000 mm

-200 to+400 °C Class 1

5 s

0644 1109

Thermocouple, made of fibre-glass insulated thermal pipes, pack of 5

Insulation: twin conductor, flat, oval, opposed and covered with fibre-glass, both conductors are wrapped together with fibre-glass and soaked with lacquer, please 0 0.8 mm order adapter 0600 1693_

Please order adapter 0600 1693

Surface probes

Probes Pt100

Meas. range Accuracy t99 Part no.

-50 to +

40 s 0604 9973

0628 0018*

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

150 mm

Robust surface probe

04 mm

09 mm

Probes Type K (NiCr-Ni)

Meas. range Accuracy t99 Part no.

Quick-action surface probe with sprung thermocouple strip, measuring range short-term to +500°C

-200 to

3 s 0604 0194

0614 0194*

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

150 mm

0 10 mm

Super quick-action surface probe, probe tip at 90° angle, with sprung thermocouple strip

-200 to+300 °C Class 2

3 s 0604 0994

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

0 10 mm

100 mm

-200 to+600 °C Class 1

0604 9993

25 s

150 mm 04 mm

Robust surface probe

04 mm

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

0 4 mm W -200 to +600 °C Class 1

25 s

0604 9893

130 mm

Robust surface probe, at 90° angle, suitable for inaccessible places

04 mm

Conn.: Plug-in head. connection cable 0430 0143 or 0430 0145 required

Robust surface probe with sprung

-200 to +700 °C Class 2

3 s 0600 0394

Conn.: Fixed cable, coiled

200 mm

thermocouple strip for high temperature range up to +700°C

0 15 mm

Roller surface probe for measurements on rollers and rotating drums, max. circumferential velocity 18 to 400m/min

-50 to +240 °C Class 2

0600 5093

Conn.: Fixed cable, coiled

274 mm

0 33 mm

Magnetic probe, adhesive power approx. 20 N, with magnets, for measurements on metal surfaces

-50 to +170 °C Class 2

0600 4793

Conn.: Fixed cable

35 mm

i 0 20 mm

Magnetic probe, adhesive power approx. 10 N, with magnets, for higher temperatures, measures on metal surfaces

-50 to +400 °C Class 2

25 s

0600 4893 Conn.: Fixed cable

75 mm

I 0 21 mm

-200 to +400 °C Class 2

3 s

0600 1494

Conn.: Fixed cable

270 mm

Miniature surface probe for measurements on electronic components, small motors...

numi -

05 mm

-200 to +200 °C Class 1

0644 1607

Adhesive thermocouple, pack of 2, carrier material: aluminium foil

₌ ^ D¡^ameter iäxtenüton ²

x 0.2 mm, 0.1 mm thick

Is fixed at the measuring point using conventional industrial adhesives or silicone heat paste 0554 0004

Adapter to connect NiCr-Ni thermocouples and probes with open wire ends

0600 1693

*with EEPROM: Precision adjustment for each probe at a measuring point; measuring range limits are saved In probe; t95 extrapolation; surface allowance In surface probe can be adapted to measuring task
