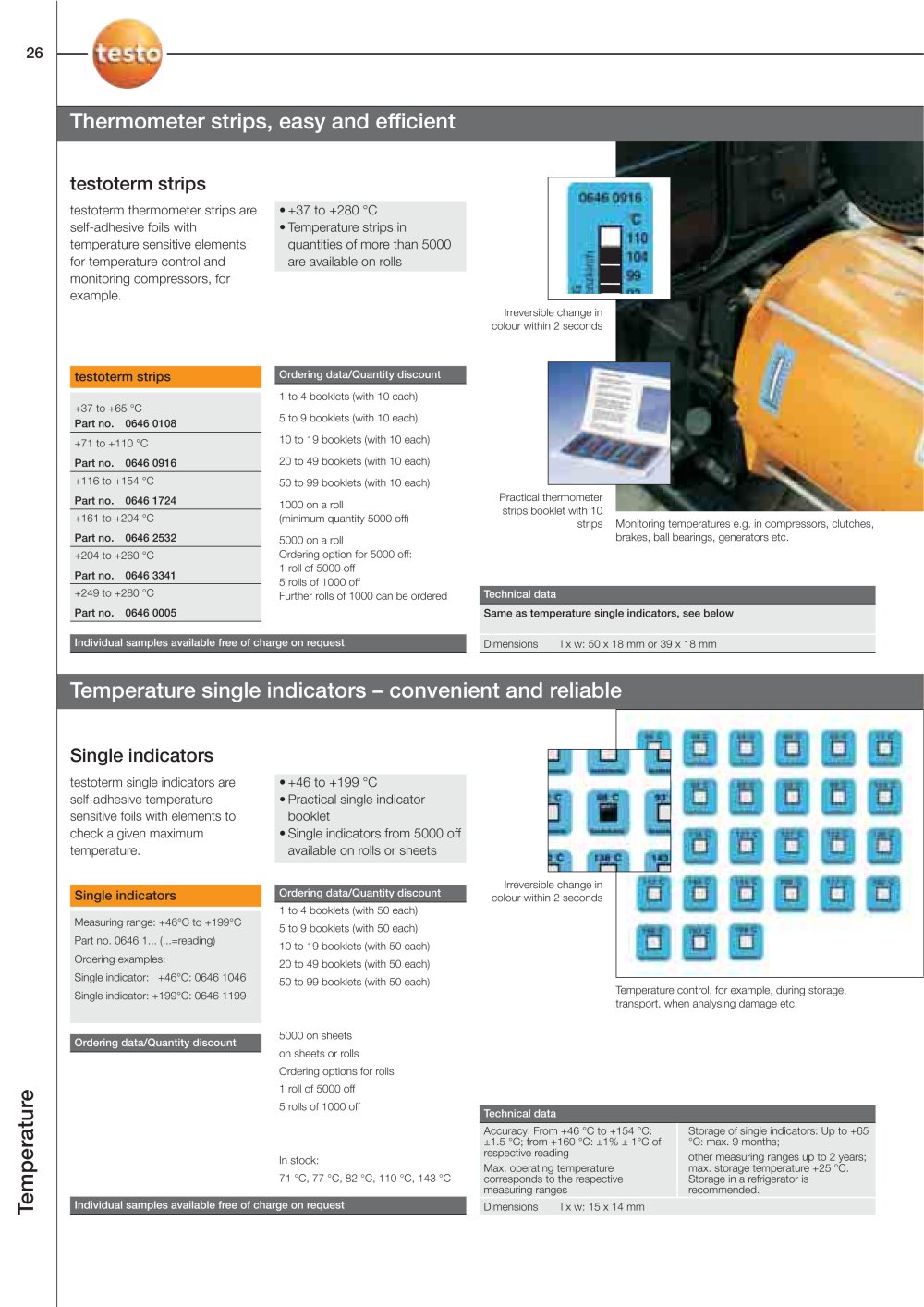

26

hermor

testoterm strips

testoterm thermometer strips are self-adhesive foils with temperature sensitive elements for temperature control and monitoring industrial compressors, for example.

• +37 to +280 °C

• Temperature strips in quantities of more than 1000 are available on rolls

Irreversible change In colour within 2 seconds

Ordering data/Quantity discount

testoterm strips

+37 to +65 °C

Part no. 0646 0108

+71 to+110 °C Part no. 0646 0916 + 116 to+154 °C Part no. 0646 1724 + 161 to +204 °C Part no. 0646 2532 +204 to +260 °C Part no. 0646 3341 +249 to +280 °C

Part no. 0646 0005

1 to 4 booklets (with 10 each) 5 to 9 booklets (with 10 each) 10 to 19 booklets (with 10 each) 20 to 49 booklets (with 10 each) 50 to 99 booklets (with 10 each)

roll of 1000

Practical thermometer strips booklet with 10

strips Monitoring temperatures e.g. in compressors, industrial clutches, brakes, ball bearings, generators etc.

Technical data

Same as temperature single indicators, see below

Individual samples available free of charge on request

Dimensions

l x w: 50 x 18 mm or 39 x 18 mm

mperature single indicators - convenient and reliable

Single indicators

testoterm single indicators are self-adhesive temperature

sensitive foils with elements to check a given maximum temperature.

• +43 to +260 °C

• Practical single indicator booklet

Irreversible change in colour within 2 seconds

Ordering data/Quantity discount

Single indicators

Measuring range: +43°C to +260°C Part no. 0646 1... (..-reading) Ordering examples: Single indicator: +43°C: 0646 1043 Single indicator: +204°C: 0646 1204

1 to 4 booklets (with 50 each) 5 to 9 booklets (with 50 each) 10 to 19 booklets (with 50 each)

20 to 49 booklets (with 50 each) 50 to 99 booklets (with 50 each) 5000 on sheet (with 50 each) In stock:

71 °C, 77 °C, 82 °C, 110 °C, 143 °C

Ordering data/Quantity discount

For all additional single indicators (43/46/49/54/60/65/88/93/99/ 104/116/121/127/132/138/149/ 154/160/166/171/177/182/188/ 193/199/204/210/216/224/232/ 241/249/254/260 °C) the following applies: Delivery time of 4 weeks for minimum order of 10 booklets.

Temperature control, for example, during storage, transport, when analysing damage etc.

Technical data

Accuracy: From +43 °C to +154 °C: ±1.5 °C; from +160 °C: ±1% ± 1°C of respective reading

Max. operating temperature corresponds to the respective measuring ranges

Dimensions l x w: 15 x 14 mm

Storage of single indicators: Up to +65 °C: max. 9 months;

other measuring ranges up to 2 years; max. storage temperature +25 °C. Storage in a refrigerator is recommended.

vidual samples available free of charge on request
