| | | 25 | | |
| | | |

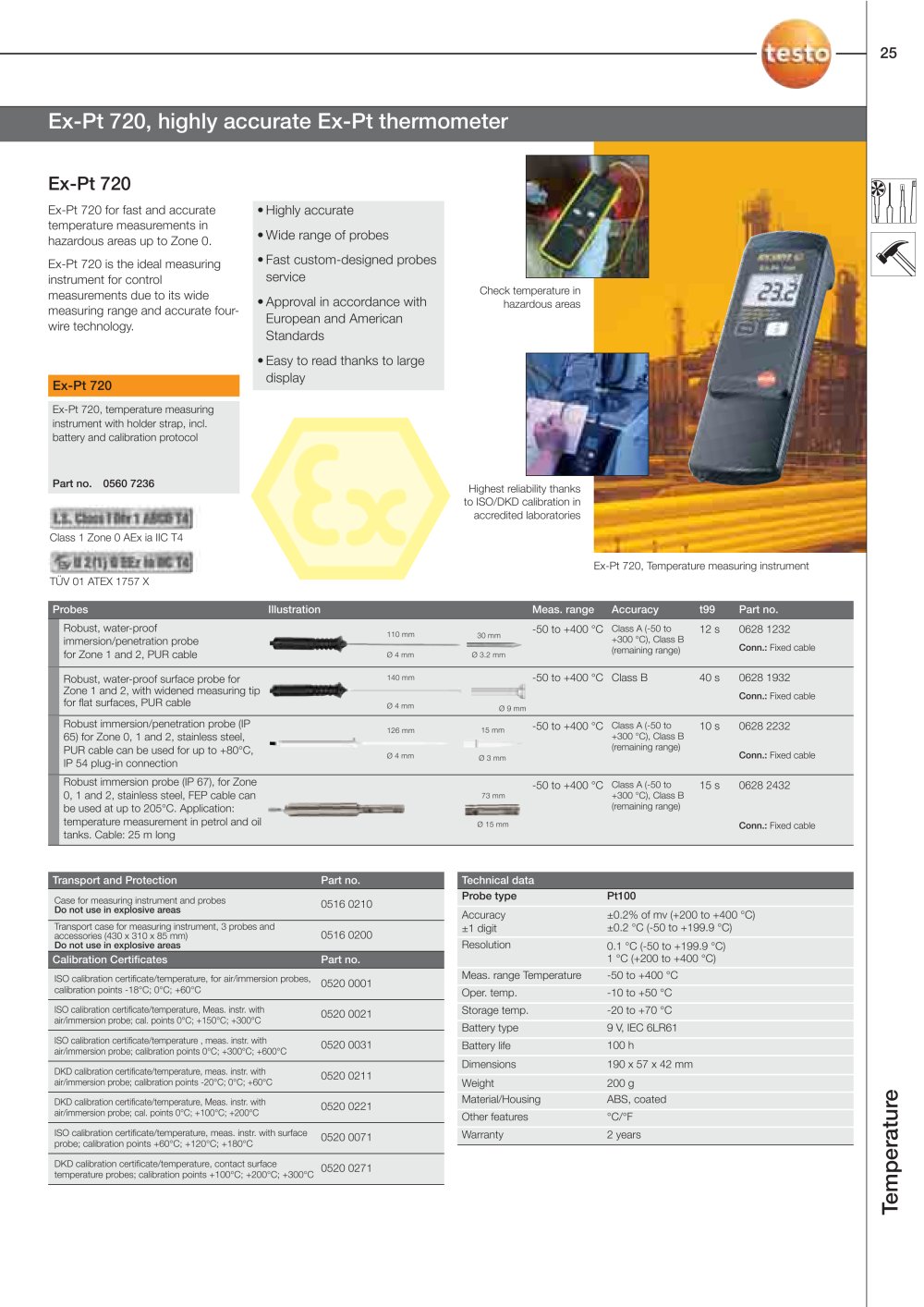

| | | Ex-Pt 720 Ex-Pt 720 is the ideal measuring instrument for control measurements due to its wide measuring range and accurate four-wire technology. | | |
| | | • Highly accurate • Wide range of probes • Fast custom-designed probes service • Approval in accordance with European and American Standards • Easy to read thanks to large display | | |
| | | Check temperature in hazardous areas | | |
| | | |
| | | |
| | | Ex-Pt 720 Ex-Pt 720, temperature measuring instrument with holder strap, incl. battery and calibration protocol | | |
| | | |
| | | |
| | | Part no. 0560 7236 | | |
| | | Highest reliability thanks to ISO/DKD calibration in accredited laboratories | | |
| | | |
| | | |
| | | Class 1 Zone 0 AEx ia IIC T4 &H211)6EExial№T4l TÜV 01 ATEX 1757 X Probes | | |
| | | Ex-Pt 720, Temperature measuring instrument | | |
| | | |
| | | Mlustration | | Meas. range Accuracy | | t99 Part no. | | |
| | | | |
| | | |
| | | Robust, water-proof immersion/penetration probe for Zone 1 and 2 | | |
| | | -50 to +400 °C Class A (-50 to . 30 mm +300 °C), Class B 0 3.2 mm (rema¡n¡ng range) | | |
| | | 12 s | | 0628 1232 Conn.: Fixed cable | | |
| | | 110 mm 0 4 mm | | |
| | | |
| | | |
| | | |
| | | |
| | | Robust, water-proof surface probe for Zone 1 and 2, with widened measuring tip for flat surfaces | | |
| | | -50 to +400 °C Class B | | |
| | | 40 s 0628 1932 Conn.: Fixed cable | | |
| | | 110 mm | | |
| | | |
| | | |
| | | |
| | | 04 mm | | |
| | | 09 mm | | |
| | | |
| | | |
| | | |
| | | Robust immersion/penetration probe (IP 65) for Zone 0, 1 and 2, stainless steel, PUR cable can be used for up to +80°C, IP 54 plug-in connection | | |
| | | 15 mm -50 to +400 °C Class A (-50 to +300 °c), Class B (remaining range) | | |
| | | 10 s | | 0628 2232 | | |
| | | 125 mm | | |
| | | |
| | | |
| | | Conn.: Fixed cable | | |
| | | |
| | | 04 mm | | |
| | | 03 mm | | |
| | | |
| | | |
| | | |
| | | |
| | | Robust immersion probe (IP 67), for Zone 0, 1 and 2, stainless steel, FEP cable can be used at up to 205°C. Application: temperature measurement in petrol and oil tanks. Cable: 25 m long | | |
| | | -50 to +400 °C Class A (-50 to 73 mm +300 °c), Class B (remaining range) | | |
| | | 15 s | | 0628 2432 | | |
| | | |
| | | |
| | | 0 15 mm | | Conn.: Fixed cable | | |
| | | |
| | | |
| | | |
| | | | | | | | | | Transport and Protection | Part no. | | | | Leather case for thermometer incl. probe holder and positioning clip | 0516 0133 | | | | Case for measuring instrument and probes Do not use in explosive areas | 0516 0210 | | | | Transport case for measuring instrument, 3 probes and accessories (430 x 310 x 85 mm) Do not use in explosive areas | 0516 0200 | | | | Calibration Certificates | Part no. | | | | ISO calibration certificate/temperature, for air/immersion probes, calibration points -18°C; 0°C; +60°C | 0520 0001 | | | | ISO calibration certificate/temperature, meas. instr. with air/immersion probe; cal. points 0°C; +150°C; +300°C | 0520 0021 | | | | ISO calibration certificate/temperature , meas. instr. with air/immersion probe; calibration points 0°C; +300°C; +600°C | 0520 0031 | | | | DKD calibration certificate/temperature, meas. instr. with air/immersion probe; calibration points -20°C; 0°C; +60°C | 0520 0211 | | | | DKD calibration certificate/temperature, Meas. instr. with air/immersion probe; cal. points 0°C; +100°C; +200°C | 0520 0221 | | | | ISO calibration certificate/temperature, meas. instr. with surface probe; calibration points +60°C; +120°C; +180°C | 0520 0071 | | | | DKD calibration certificate/temperature, contact surface temperature probes; calibration points +100°C; +200°C; +300°C | 0520 0271 | | | | | | | | | | | | | | | | Technical data | | | | Probe type | Pt100 | | | | Accuracy | ±0.2% of mv (+200 to +400 °C) | | | | ±1 digit | ±0.2 °C (-50 to+199.9 °C) | | | | Resolution | 0.1 °C(-50 to+199.9 °C) | | | | | 1 °C (+200 to +400 °C) | | | | Meas. range Temperature | -50 to +400 °C | | | | Oper. temp. | -10 to+50 °C | | | | Storage temp. | -20 to +70 °C | | | | Battery type | 9 V IEC 6LR61 | | | | Battery life | 100 h | | | | Dimensions | 190 x 57 x 42 mm | | | | Weight | 200 g | | | | Material/Housing | ABS, coated | | | | Other features | °C/°F | | | | Warranty | 2 years | | | | | | | | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
