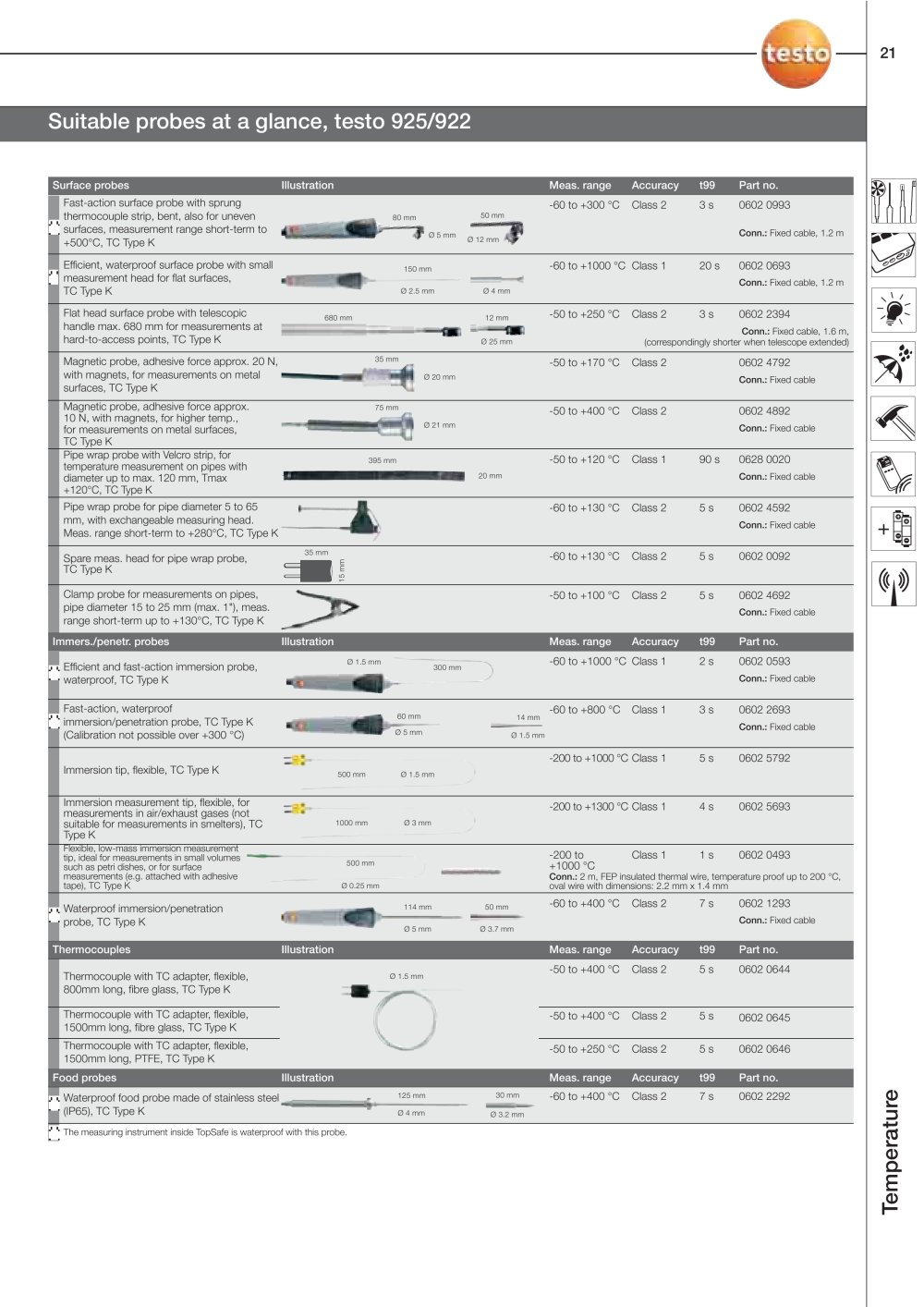

Surface probes	Illustration			Meas. range	Accuracy	t99	Part no.
Fast-action surface probe with sprung				-60 to +300 °C	Class 2	3 s	0602 0993
thermocouple strip, bent, also for uneven		80 mm	50 mm
surfaces, measurement range short-term to		* T 0 5 mm					Conn.: Fixed cable, 1.2 m
+500°C, TC Type K		* T 0 5 mm	012 mm				Conn.: Fixed cable, 1.2 m
Efficient, waterproof surface probe with small		150 mm		-60 to+1000 °C	Class 1	20 s	0602 0693
measurement head for flat surfaces, TC Type K		0 2.5 mm	0 4 mm				Conn.: Fixed cable, 1.2 m
Flat head surface probe with telescopic handle max. 680 mm for measurements at hard-to-access points, TC Type K	680 mm		12 mm	-50 to +250 °C	Class 2	3 s	0602 2394
		—m	0 25 mm				Conn.: Fixed cable
Magnetic probe, adhesive force approx. 20 N,		35 mm		-50 to+170 °C	Class 2		0602 4792
with magnets, for measurements on metal surfaces, TC Type K	--^	0 20 mm					Conn.: Fixed cable
Magnetic probe, adhesive force approx. 10 N, with magnets, for higher temp.,		75 mm		-50 to +400 °C	Class 2		0602 4892
for measurements on metal surfaces,		0 21 mm					Conn.: Fixed cable
TC Type K

Pipe wrap probe with Velcro strip, for temperature measurement on pipes with diameter up to max. 120 mm, Tmax +120°C, TC Type K_

-50 to+120 °C Class 1

90 s 0628 0020

Conn.: Fixed cable

395 mm

20 mm

Pipe wrap probe for pipe diameter 5 to 65 mm, with exchangeable measuring head. Meas. range short-term to +280°C, TC Type K

-60 to+130 °C Class 2

5 s 0602 4592

Conn.: Fixed cable

35 mm

-60 to+130 °C Class 2

5 s

0602 0092

Spare meas. head for pipe wrap probe, TC Type K

Clamp probe for measurements on pipes, pipe diameter 15 to 25 mm (max. 1"), meas. range short-term up to +130°C, TC Type K

-50 to +100 °C Class 2 5 s 0602 4692

Conn.: Fixed cable

Immers./penetr. probes

Meas. range Accuracy t99 Part no.

-60 to+1000 °C Class 1 2 s 0602 0593

Conn.: Fixed cable

0 1.5 mm

Efficient and fast-action immersion probe, waterproof, TC Type K

300 mm

Fast-action, waterproof immersion/penetration probe, TC Type K

-60 to +800 °C Class 1

3 s 0602 2693

Conn.: Fixed cable

60 mm

14 mm

05 mm

0 1.5 mm

-200 to +1000 °C Class 1

0602 5792

5 s

Immersion tip, flexible, TC Type K

0 1.5 mm

500 mm

-200 to +1300 °C Class 1 4 s 0602 5693

Immersion measurement tip, flexible, for measurements in air/exhaust gases (not suitable for measurements in smelters)

0 3 mm

1000 mm

Flexible, low-mass immersion measurement tip, ideal for measurements in small volumes such as petri dishes, or for surface measurements (e.g. attached with adhesive tape), TC Type K_

Class 1

-200 to

1 s

0602 0493

500 mm 0 0.25 mm

+ 1000 °C

Conn.: 2 m, FEP insulated thermal wire, temperature proof up to 200 °C, oval wire with dimensions: 2.2 mm x 1.4 mm

Flexible, sharpened immersion measurement tip, ideal for immersion measurements in small volumes, such as test tubes, TC Type K

-200 to +800 °C Class 1

3 s 0602 2193

Conn.: Fixed cable

200 mm

01 mm

-60 to +400 °C Class 2 7 s 0602 1293

Conn.: Fixed cable

114 mm

50 mm

Waterproof immersion/penetration probe,

TC Type K

05 mm

0 3.7 mm

Meas. range Accuracy t99 Part no

-50 to +400 °C Class 2 5 s 0602 0644

Thermocouple with TC adapter, flexible, 800mm long, fibre glass, TC Type K

01.5 mm

Thermocouple with TC adapter, flexible, 1500mm long, fibre glass, TC Type K

-50 to +400 °C Class 2 5 s 0602 0645

Thermocouple with TC adapter, flexible, 1500mm long, Teflon, TC Type K

-50 to +250 °C Class 2 5 s 0602 0646

Food probes

Meas. range Accuracy t99 Part no.

125 mm

³⁰ ^mm -60 to+400 °C Class 2 7 s 0602 2292

Waterproof food probe made of stainless steel

(IP65), TC Type K

04 mm

0 3.2 mm

The measuring instrument inside TopSafe is waterproof with this probe.
