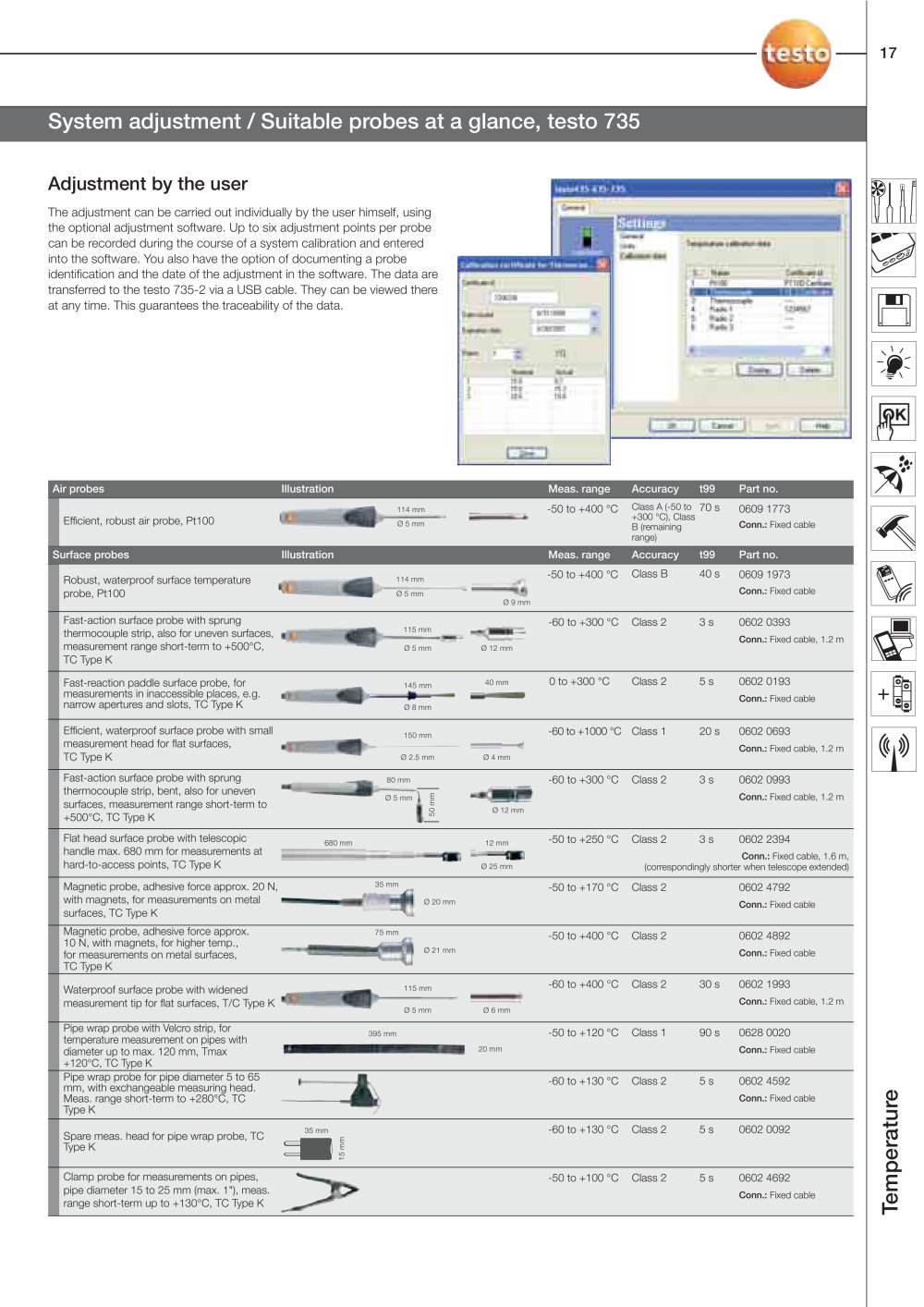

Adjustment by the user

The adjustment can be carried out individually by the user himself, using the optional adjustment software. Up to six adjustment points per probe can be recorded during the course of a system calibration and entered into the software. You also have the option of documenting a probe identification and the date of the adjustment in the software. The data are transferred to the testo 735-2 via a USB cable. They can be viewed there at any time. This guarantees the traceability of the data.

Air probes

Meas. range Accuracy t99 Part no.

-50 to +400 °C ^c|ass A (-50 to 70 s +300 °C), Class B (remaining range)

0609 1773 Conn.: Fixed cable

114 mm

Efficient, robust air probe, Pt100

05 mm

Meas. range Accuracy t99 Part no.

-50 to +400 °C Class B 40 s

0609 1973

Conn.: Fixed cable

Robust, waterproof surface temperature probe, Pt100

114 mm

05 mm

0 9 mm

Fast-action surface probe with sprung thermocouple strip, also for uneven surfaces, measurement range short-term to +500°C, TC Type K

-60 to +300 °C Class 2 3 s

0602 0393

Conn.: Fixed cable, 1.2 m

0 5 mm

012 mm

40 mm 0 to +300 °C Class 2 5 s

0602 0193 Conn.: Fixed cable

Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. n narrow apertures and slots, TC Type K

145 mm

0 8 mm

Efficient, waterproof surface probe with small measurement head for flat surfaces,

TC Type K

-60 to+1000 °C Class 1

20 s 0602 0693

Conn.: Fixed cable, 1.2 m

150 mm 0 2.5 mm

0 4 mm

Fast-action surface probe with sprung thermocouple strip, bent, also for uneven surfaces, measurement range short-term to +500°C, TC Type K

-60 to +300 °C Class 2

3 s 0602 0993

Conn.: Fixed cable, 1.2 m

80 mm

05 mm _m^m

012 mm

Flat head surface probe with telescopic handle max. 680 mm for measurements at hard-to-access points, TC Type K

-50 to +250 °C Class 2

3 s

0602 2394

Conn.: Fixed cable

680 mm

12 mm

0 25 mm

35 mm

Magnetic probe, adhesive force approx. 20 N, with magnets, for measurements on metal surfaces, TC Type K

-50 to+170 °C Class 2

0602 4792

Conn.: Fixed cable

0 20 mm

Magnetic probe, adhesive force approx. 10 N, with magnets, for higher temp., for measurements on metal surfaces,

TC Type K

75 mm

-50 to +400 °C Class 2

0602 4892 Conn.: Fixed cable

0 21 mm

-60 to +400 °C Class 2 30 s

0602 1993

Conn.: Fixed cable, 1.2 m

115 mm

Waterproof surface probe with widened measurement tip for flat surfaces, T/C Type K

05 mm

06 mm

Pipe wrap probe with Velcro strip, for temperature measurement on pipes with diameter up to max. 120 mm, Tmax +120°C, TC Type K_

-50 to +120 °C Class 1 90 s

0628 0020

Conn.: Fixed cable

395 mm

20 mm

Pipe wrap probe for pipe diameter 5 to 65 mm, with exchangeable measuring head. Meas. range short-term to +280°C, TC Type K

-60 to +130 °C Class 2 5 s

0602 4592

Conn.: Fixed cable

-60 to +130 °C Class 2 5 s

0602 0092

35 mm

Spare meas. head for pipe wrap probe, TC Type K

Clamp probe for measurements on pipes, pipe diameter 15 to 25 mm (max. 1"), meas. range short-term up to +130°C, TC Type K

-50 to +100 °C Class 2 5 s 0602 4692

Conn.: Fixed cable
